Product Data
SKU:
5268508
5268508
UPC/EAN:
601842674536
601842674536

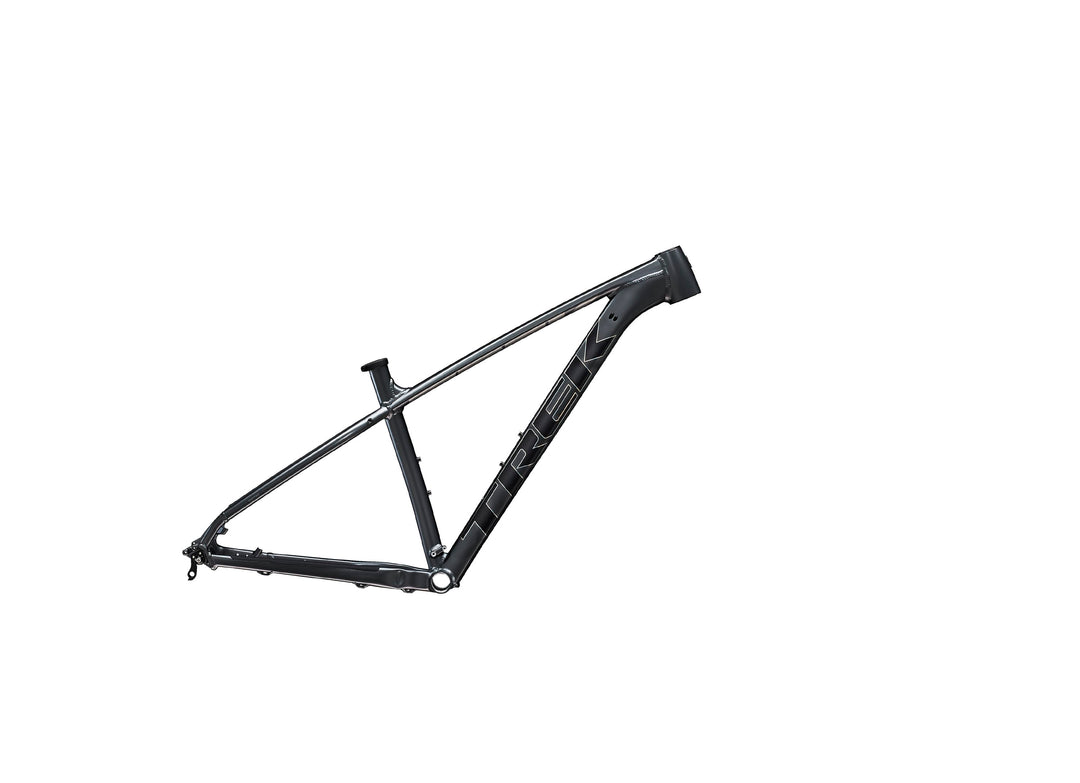

X-Caliber frameset is a high-value alloy mountain bike frameset for fast singletrack rides. Lightweight Alpha Aluminum tubes, shorter chainstays for extra agility, and an incredible amount of versatility make it a great starting point for your cross country mountain bike.
![]()
- It gets you into the world of cross country riding and racing at a great price, and it's a mountain bike that can grow with you as your skills advance
- The sleek internal cable routing gives you clean looks, protects your cables, and makes it easy to upgrade to a dropper post for even more capability
- The frame is fully compatible with higher-end parts, like race wheels and a dropper post
- Mounts on the frame make it easy to add a rear rack if your XC bike doubles as your daily commuter
High tech frame
The Alpha Gold Aluminum frame is packed with features that make your ride better. A tapered head tube gives you more precise, confident handling on the front end, while Boost 141 rear hub spacing gives you shorter chainstays for more nimble handling out back.
| Frame | Alpha Gold Aluminum, tapered head tube, internal derailleur & dropper post routing, rack & kickstand mount, Boost141, 5mm QR |
| Seat Collar | Bolt-on, 36.4mm |
| Headset | Semi-integrated, loose ball bearing, 1-1/8'' top, 1.5'' bottom |
Geometry Chart
| B B Drop | 5.8 |
| B B Height | 29.2 |
| Chainstay Length | 42.5 |
| Eff Seat Tube Angle | 73.5° |
| Eff Top Tube | 54.4 |
| Frame Reach | 37.6 |
| Frame Size Letter | XS |
| Frame Size Number | 13.5" |
| Frame Stack | 56.5 |
| Head Angle | 69.3° |
| Head Tube Length | 9 |
| Offset | 4.2 |
| Seat Tube | 34.3 |
| Seat Tube Angle | 73.5° |
| Standover | 69.8 |
| Trail | 8.8 |
| Wheelbase | 103.6 |
| Wheel Size | 27.5" |
| Color | SATIN LITHIUM GREY |
