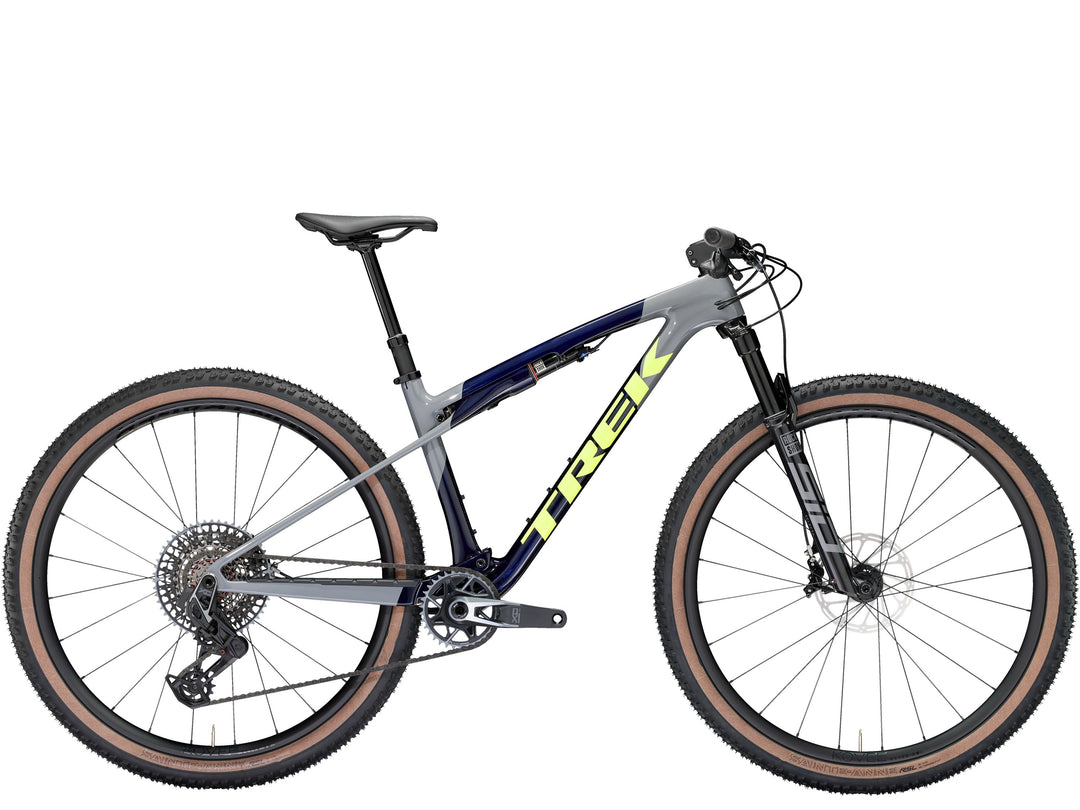

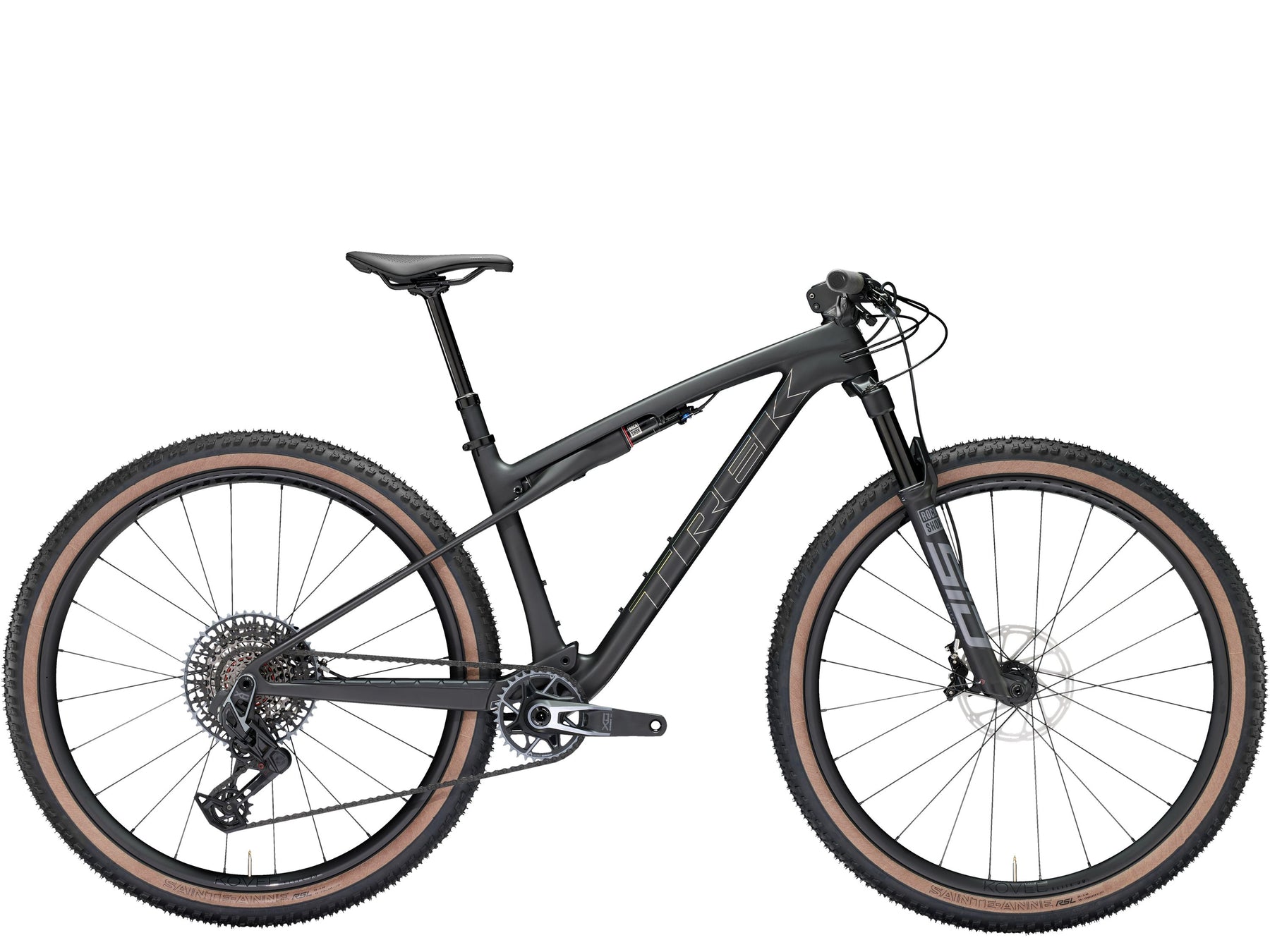

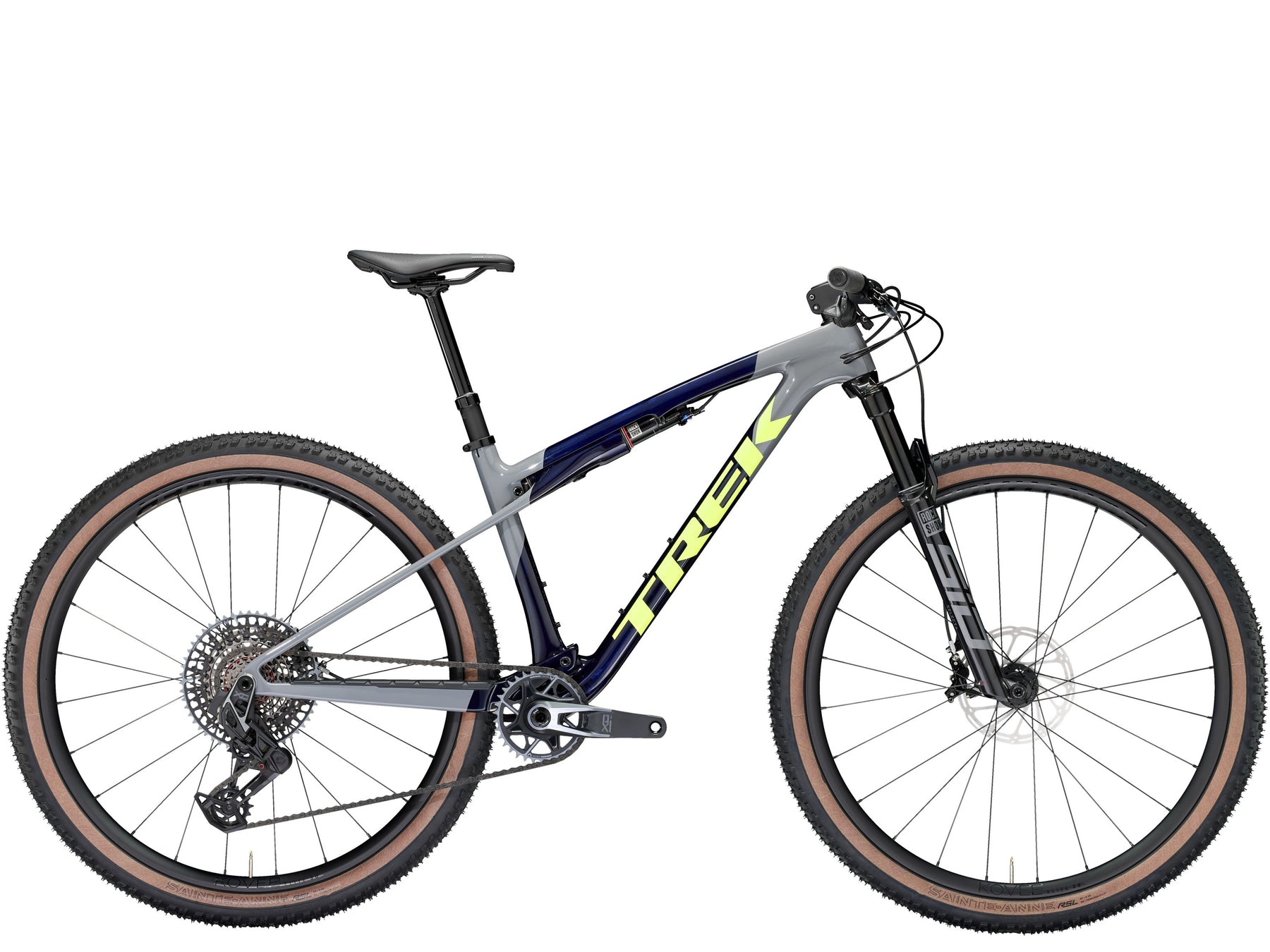

Trek Supercaliber SLR 9.8 X0 AXS T-Type Gen 2
In-Store Pickup Only
Fully assembled, tuned, and test-ridden—ready to ride at pickup from our shop.
Product Data
SKU:
5324379
5324379
UPC/EAN:
197216055839
197216055839
Supercaliber SLR 9.8 X0 AXS is an ultralight XC mountain bike that's built with the top components for race day. Its SLR Mountain Carbon frame is as light as it is meticulous, with a high modulus layup that gives you all the stiffness you crave and none of the weight. XC courses get rowdier every year, so it's equipped with a 110mm fork and 80mm of IsoStrut rear suspension to smooth your roll without dropping pedaling efficiency. It's all topped off with carbon wheels, a carbon cockpit, and SRAM's wireless direct-mount X0 transmission.
![]()
![]()
![]()
![]()
- You get a 110mm fork and 80mm of IsoStrut rear suspension that partners with slacker, capable geometry for handling the roots and rocks of modern XC courses
- You don't have to compromise stiffness for weight savings thanks to the SLR OCLV Mountain Carbon frame that's intensely light, stiff, and responsive
- IsoStrut gives you tunable, damped suspension without missing out on efficiency for hammering up climbs at top speed
- Pivotless seat stays save on weight and actively bend to help soak up trail chatter
- Cream of the crop components, like a RockShox SID Ultimate fork and fully wireless direct-mount SRAM X0 AXS transmission give you the performance advantage
Nothing else like it
Supercaliber’s unique frame design ditches traditional suspension hardware so there’s less weight, less maintenance, and less lateral flex. IsoStrut connects the mainframe to the pivot-less seat stays to offer about 80mm of rear wheel travel. This design offers a unique blend of efficiency, traction, and fatigue-fighting compliance that keeps racers fresh and in control.
IsoStrut
IsoStrut integrated suspension gives you just enough travel to stay in control. It's fully tuneable like a standard rear shock, but without the weight penalty of a full suspension bike.
SLR OCLV Mountain Carbon
Supercaliber SLR is the World Cup lightweight frame. It drops grams by using a higher modulous carbon fiber layup that allows us to use less material, plus we skip internal guide tubes for cable routing, minimizing material and maximizing weight savings.
You almost forgot your pedals
This bike doesn’t come with pedals because you'll have a better ride if you choose your own. See the pedal guide to find the best pedals for your riding style. Want pedals built for the race? We recommend clipless MTB pedals for control & efficiency.
| Frame | SLR OCLV Mountain Carbon, IsoStrut, UDH, 80mm travel |
| Fork | RockShox SID Select+, DebonAir spring, Charger Race Day damper, dual remote lockout, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 110mm travel |
| Shock | Trek IsoStrut, RockShox SIDLuxe, 2-position remote damper |
| Wheel Front | Bontrager Kovee Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29'' |
| Wheel Rear | Bontrager Kovee Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, Boost148, 12mm thru axle, 29'' |
| Tire | Bontrager Sainte-Anne RSL XR, Tubeless Ready, dual compound, aramid bead, 220 tpi, 29x2.40'' |
| Tire Part | Bontrager TLR sealant, 6oz |
| Rim Strip | Bontrager TLR |
| Skewer Rear | Bontrager Switch thru axle, removable lever |
| Shifter | SRAM AXS pod |
| Rear Derailleur | SRAM X0 Eagle AXS, T-Type |
| Crank | SRAM X0 Eagle, DUB, 30T steel, T-Type, 55mm chainline, 170mm length |
| Bottom Bracket | SRAM DUB, 92mm, PressFit |
| Cassette | SRAM Eagle XS-1295, T-Type, 10-52, 12 speed |
| Chain | SRAM X0 Eagle, T-Type, 12 speed |
| Brake | SRAM Level Silver 4-piston hydraulic disc |
| Brake Rotor | SRAM CenterLine, 6-bolt, round edge, 160mm // SRAM CenterLine, 6-bolt, round edge, 180mm |
| Saddle | Verse Short Elite, hollow magnesium rails, 145mm width |
| Seatpost | Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6mm, 310mm length |
| Handlebar | Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0mm handlebar rise, 750mm width, -13 degree stem rise, 70mm length |
| Headset | FSA IS-2, 1-1/8'' top, 1.5'' bottom |
| Battery | SRAM AXS battery pack (with charger) |
Geometry Chart
| B B Drop | 4.6 |
| B B Height | 32.7 |
| Chainstay Length | 43.5 |
| Eff Seat Tube Angle | 74.5° |
| Eff Top Tube | 57.1 |
| Frame Reach | 41 |
| Frame Size Letter | S |
| Frame Stack | 59 |
| Head Angle | 67.5° |
| Head Tube Length | 9 |
| Offset | 4.3 |
| Seat Tube | 39.5 |
| Seat Tube Angle | 70.5° |
| Standover | 76 |
| Trail | 10.9 |
| Wheelbase | 111.3 |
| Wheel Size | 29" |
