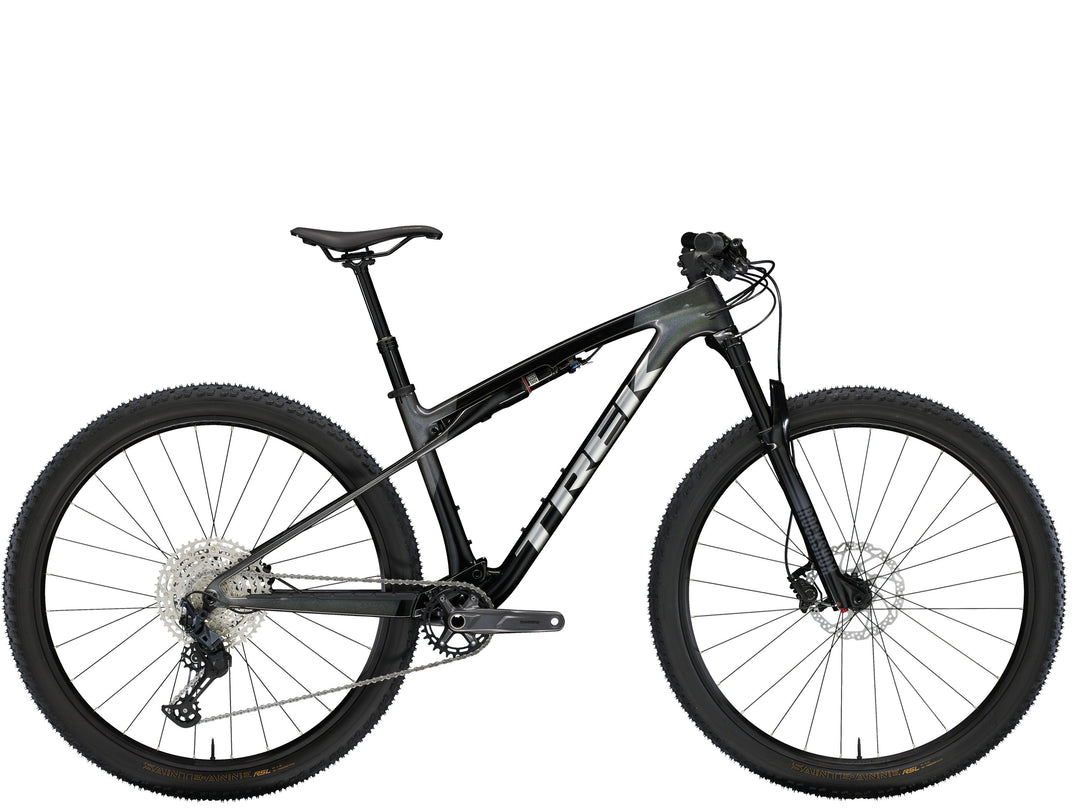

Supercaliber SL 9.6 is a carbon cross country mountain bike built for rocketing over singletrack and scorching the way to the finish line. It's built with a carbon frame that balances stiffness with compliance for power when you need it most, while IsoStrut rear suspension gives you just enough squish to soften the blow through the rough terrain peppering modern XC courses. It comes ready to rip with a 12-speed Shimano SLX drivetrain, so you've got a gear for every climb and breakaway.

• You get a 110mm fork and 80mm of IsoStrut rear suspension that partners with slacker, capable geometry for handling the roots and rocks of modern XC courses
• IsoStrut gives you tunable, damped suspension without missing out on efficiency for hammering up climbs at top speed
• The frame's SL OCLV Mountain Carbon gives you the vibration damping and stiff responsiveness of carbon with a smaller price tag
• Pivotless seat stays save on weight and actively bend to help soak up trail chatter
• The 12-speed Shimano drivetrain gives you a huge range of gears, so you can ease the ups in the big ring or stomp to the front in the flats

Nothing else like it

Supercaliber’s unique frame design ditches traditional suspension hardware so there’s less weight, less maintenance, and less lateral flex. IsoStrut connects the mainframe to the pivot-less seat stays to offer about 80mm of rear wheel travel. This design offers a unique blend of efficiency, traction, and fatigue-fighting compliance that keeps racers fresh and in control.

IsoStrut

IsoStrut integrated suspension gives you just enough travel to stay in control. It's fully tuneable like a standard rear shock, but without the weight penalty of a full suspension bike.

SL OCLV Mountain Carbon

Supercaliber SL is a lightweight OCLV Carbon frame. It features a lightweight carbon layup that doesn't compromise stiffness for weight, plus it featuers internal guides that make cable routing a breeze.

Shimano Deore

Shimano Deore brings even more adventure with a wider range of gear choices for the steep stuff, the fast stuff, and the fun. With smooth riding, improved chain stability, and sharp shifting, Deore heightens your mountain biking confidence and control so you can focus on the trail and enjoy the ride.

You almost forgot your pedals

This bike doesn’t come with pedals because you'll have a better ride if you choose your own. See the pedal guide to find the best pedals for your riding style. Want pedals built for the race? We recommend clipless MTB pedals for control & efficiency.

Frame	SL OCLV Mountain Carbon, IsoStrut, UDH, 80mm travel
Fork	RockShox Recon Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 110mm travel
Shock	Trek IsoStrut, RockShox SIDLuxe, 2-position remote damper
Tire	Pirelli Scorpion XC RC, Tubeless Ready, Team Edition Pro Wall, aramid bead, 120 tpi, 29x2.40''
Tire Part	Bontrager TLR sealant, 6oz
Hub Front	Shimano TC500 alloy, centerlock, 110x15mm thru axle
Hub Rear	Shimano TC500 alloy, centerlock, 148x12mm thru axle
Rim	Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve
Rim Strip	Bontrager TLR
Skewer Rear	Bontrager Switch thru axle, removable lever
Shifter	Shimano Deore M6100, 12 speed
Rear Derailleur	Shimano SLX M7100, long cage
Crank	Shimano MT512, 32T, 55mm chainline, 170mm
Bottom Bracket	Shimano MT500, 92mm, PressFit
Cassette	Shimano Deore M6100, 10-51, 12 speed
Chain	Shimano Deore M6100, 12 speed
Brake	Shimano hydraulic disc, MT501 lever, MT500 caliper
Brake Rotor	Shimano RT54, centerlock, 160mm // Shimano RT54, centerlock, 180mm
Saddle	Verse Short Comp, steel rails, 145mm width
Seatpost	Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6mm, 310mm length
Seat Collar	Bolt-on, 36.4mm
Handlebar	Bontrager Comp, alloy, 31.8mm, 5mm rise, 720mm width
Stem	Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length
Headset	FSA IS-2, 1-1/8'' top, 1.5'' bottom
Grips	Bontrager XR Trail Comp, nylon lock-on

Geometry Chart

B B Drop	4.6
B B Height	32.7
Chainstay Length	43.5
Eff Seat Tube Angle	74.5°
Eff Top Tube	57.1
Frame Reach	41
Frame Size Letter	S
Frame Stack	59
Head Angle	67.5°
Head Tube Length	9
Offset	4.3
Seat Tube	39.5
Seat Tube Angle	70.5°
Standover	76
Trail	10.9
Wheelbase	111.3
Wheel Size	29"

Color

DARK PRISMATIC
