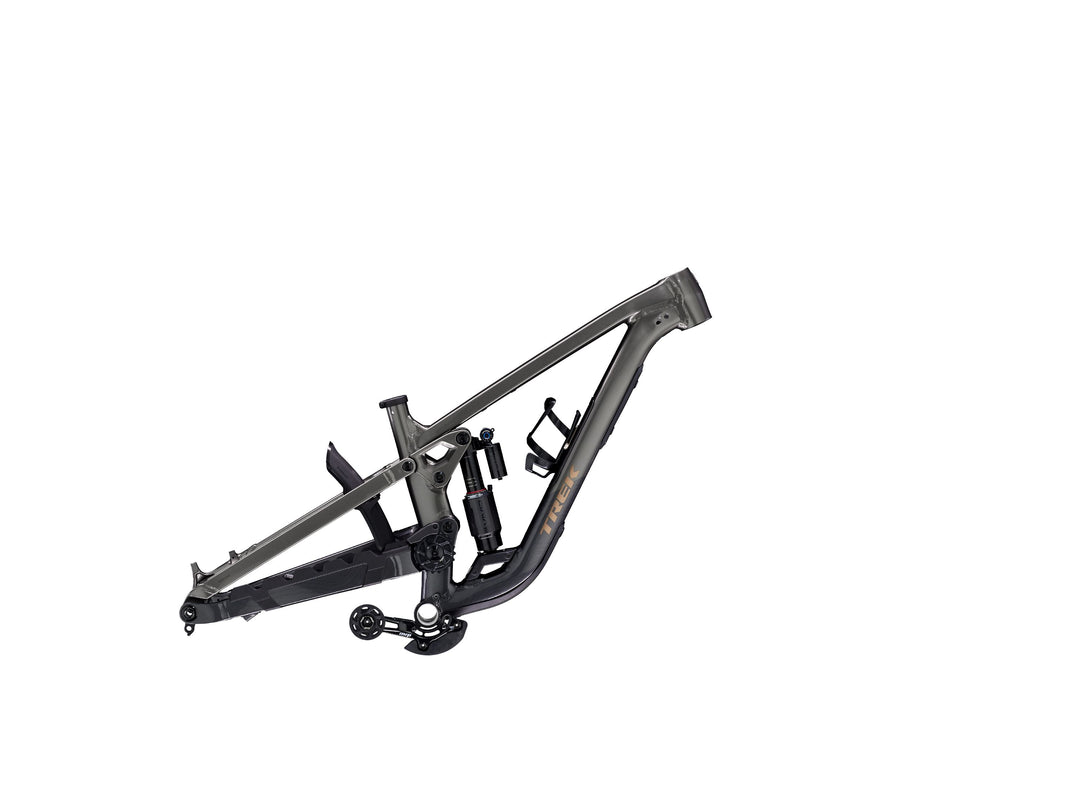

Slash AL Frameset is a hard-charging aluminum enduro frame that's ready for your dream build. It gives you the trail-crushing geometry you crave, plus a high pivot design that helps you punch up square-edge climbs and stay planted on rowdy descents. It's equipped with a 170mm RockShox Vivid Select+ rear shock and designed for a 170mm fork of your choice. Set it up MX with a 29in front and 27.5in rear wheel, or go full 29er. The choice is yours.

• The world is your oyster – you can equip this Slash frameset with just about any build you can dream of
• Its high-pivot suspension gives you insane control for hairy descents, while carefully tuned anti-squat and oversized pulleys make pedaling astonishingly efficient
• You have full control of your ride feel with suspension progression adjustment, and optional adjustable angle headset cups
• You get the flexibility to roll with either an MX 29in front and 27.5in rear wheel setup or go true 29er
• Internal frame storage means you've always got your tools, flat kit, and snack at hand

High-pivot suspension

Slash's high main pivot allows the axle to move rearward as the suspension compresses, so the back wheel moves with the force from bumps and gets out of the way faster. On the trail, it feels ultra-smooth while maintaining more momentum with insane traction.

Curb the kickback

Slash's oversized upper idler not only eliminates the pedal kickback caused by high pivot, but its size and position also give you just the right amount of anti-squat for efficient pedaling. The lower idler takes chain tension off the derailleur so you get smoother shifting and suspension performance.

Mixed wheel size

You get a 29" front wheel for monster truckin' over stuff, with a smaller 27.5" wheel out back for getting rowdy. Want full 29er speed? Just swap the lower shock mount (sold separately) to lower BB height for running a faster wheel out back.

Improved internal storage

Slash's storage door is bigger, easier to use, and the plastic parts are all made from recycled materials.

Adjust the suss for full send

Adjust leverage rate with just a flip of a chip. Ride it in the Less progressive setting for a plusher feel perfect for rugged trails with square-edge bumps. Flip it to More progressive when you're hitting big features and don’t want to bottom-out, or when you want to run a coil shock.

Slack or steep, the choice is yours

Install angle adjust headset cups (sold separately) to tweak the head tube angle a degree steeper or slacker to your liking — all without impacting your bottom bracket height.

Frame	Alpha Platinum Aluminum, high main pivot, idler pulley, internal storage, angle-adjust headset, adjustable leverage rate, integrated frame protection, internal routing, alloy rocker link, ISCG 05, Active Braking Pivot, UDH, 148x12mm thru axle, 170mm travel
Shock	RockShox Vivid Select+, 230mm x 65mm
Skewer Rear	Bontrager Switch thru axle, removable lever
Headset	Integrated cartridge bearing, 1-1/8'' top, 1.5'' bottom, angle adjust cup compatible

Geometry Chart

B B Drop	1
B B Height	35.2
Chainstay Length	42.9
Eff Seat Tube Angle	78.1°
Eff Top Tube	54.8
Frame Reach	43
Frame Size Letter	S
Frame Size Number	15.5
Frame Stack	58.8
Head Angle	63.5°
Head Tube Length	10
Offset	4.3
Seat Tube	39
Seat Tube Angle	74.0°
Standover	72.7
Trail	13.2
Wheelbase	119.5
Wheel Size	27.5"

Color

MERCURY
