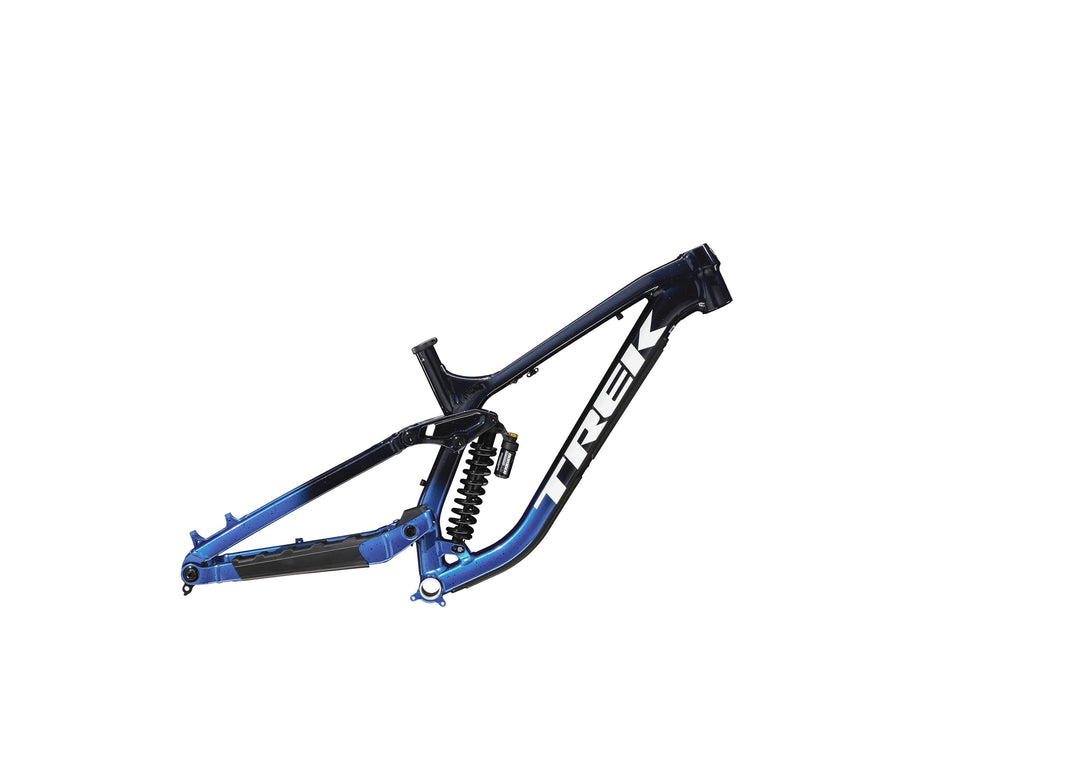

Session AL frameset gives you an awesome foundation for building up your ideal downhill machine. The new high-pivot suspension design keeps you nimble, planted, and blazing fast on even the most punishing runs, and burly alloy construction rolls with the punches on gnarly and technical trails.

• New suspension layout with a high pivot and idler pulley increases traction, carries more speed, and reduces pedal kickback for more stability
• Virtually zero pedal kickback means you’ll stay confidently planted and in control during descents—especially when landing jumps or drops
• The high pivot design delivers a more efficient rearward axle path so you’ll carry more speed and your wheel won’t get hung up on obstacles
• The Marzocchi coil shock delivers a supple feel with minimal stiction and consistent performance on long, rowdy descents
• Our new DH sizing system is based on reach, not rider height, which is the most important factor in a great downhill bike fit

All speed, no hang-ups

Session’s high-pivot design results in a rearward axle path that lets the back wheel move with the rearward force from bumps, not against it. On the trail, it feels like smoother suspension that maintains more forward momentum and provides more grip.

Rock the mullet

Session comes stocked for speed with 29er wheels, but party-in-the-back riders can run a mixed set up with a 27.5˝ rear wheel, or even 27.5" front and rear for more agility.

Frame	Alpha Platinum Aluminum, high main pivot, idler pulley, integrated frame protection, internal or external routing, magnesium rocker link, Mino Link, ISCG 05 2-bolt mount, Active Braking Pivot, 157x12mm thru axle, 200mm travel
Shock	Marzocchi Bomber, 400lb spring, 250mm x 72.5mm
Skewer Rear	Bontrager Switch thru axle, removable lever
Seat Collar	Bolt-on, 36.4mm
Headset	FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom (includes geometry adjust angled cups)

Geometry Chart

B B Drop	1.2
B B Height	35.9
Chainstay Length	43.5
Eff Seat Tube Angle	77.1°
Eff Top Tube	58.6
Frame Reach	44.7
Frame Size Letter	R1
Frame Stack	63.4
Head Angle	63.6°
Head Tube Length	11.7
Offset	4.6
Position	High
Seat Tube	42.5
Seat Tube Angle	61.6°
Standover	75.5
Trail	13.1
Wheelbase	124.3
Wheel Size	29"

Color

DEEP DARK BLUE TO ALPINE BLUE FADE
