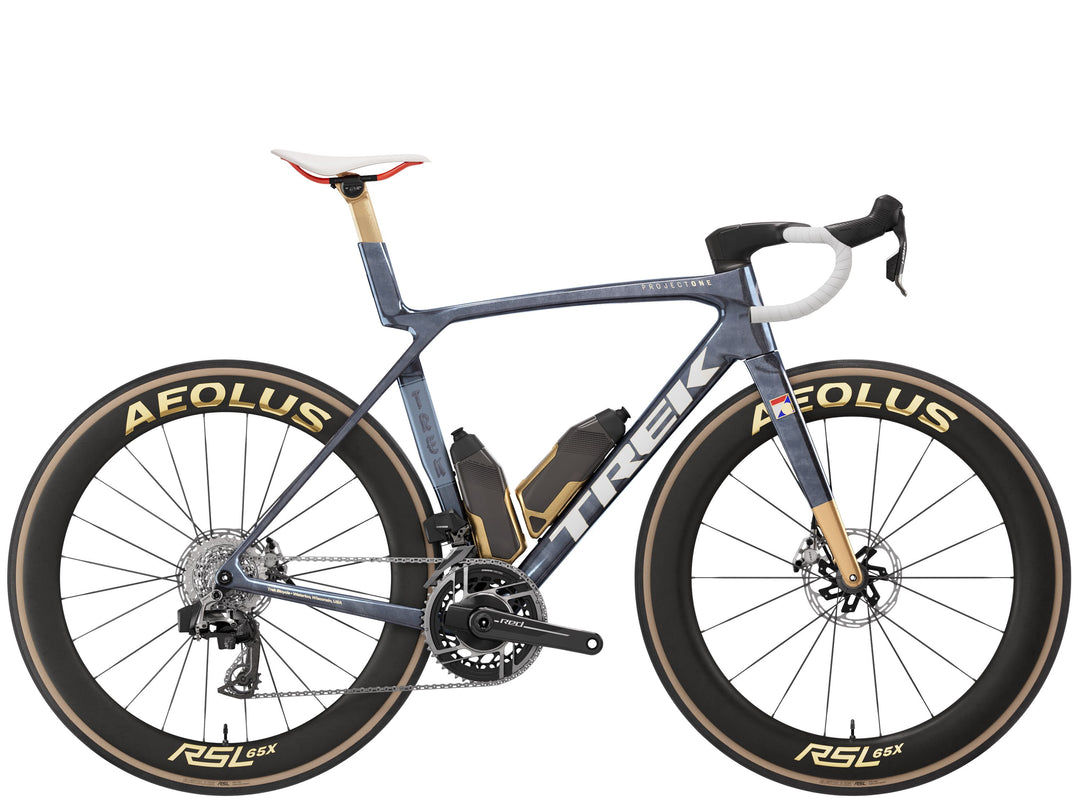

No. 76 is a limited-edition anniversary build of Madone SLR 9 AXS Gen 8, crafted from our highest-level 900 Series OCLV Carbon. It features a race-ready SRAM RED AXS E1 drivetrain with a power meter, special anniversary Bontrager Aeolus RSL carbon wheels, a white and red saddle with red rails, a Trek Aero RSL one-piece carbon bar/stem, and RSL Aero Bottles and Cages for added drag reduction.

Our lightest Madone Disc ever

New light and fast aero tube shaping paired with our best 900 Series OCLV Carbon makes Gen 8 our lightest Madone Disc f/s ever and as light as the Émonda f/s.

Redefines what fast looks like

Revolutionary new Full System Foil aero tube shapes improve airflow over the whole bike while maintaining the lightness climbers crave. Plus, the bike’s entire rider system was meticulously designed and rigorously tested to be faster everywhere.



80% more vertically compliant IsoFlow

We refined our race-focused comfort tech to be lighter and have nearly double the vertical compliance so you can ride stronger longer.

Designed for the world’s best

Madone SLR Gen 8 is raced and loved by Lidl-Trek's fastest sprinters and climbers and the only bike they need for race day.

One-piece Aero RSL bar/stem

A new one-piece bar/stem is lighter, more aeryodynamic, and more ergonomic than the previous version. Plus, the hoods are 3cm narrower than the drops so you can adjust your positioning to prioritize aerodynamics (in the hoods) or power (in the drops).

RSL Aero Bottles and Cages

Included RSL Aero Bottles and Cages were specifically designed along with the whole rider system to help make Madone even faster.

Fork	Madone Gen 8 one-piece carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle
Wheel Front	Bontrager Aeolus RSL 65X, OCLV Carbon, Tubeless Ready, 100x12mm thru axle, No76 edition
Wheel Rear	Bontrager Aeolus RSL 65X, OCLV Carbon, Tubeless Ready, SRAM XDR freehub, 142x12mm thru axle, No76 edition
Tire	Bontrager Aeolus RSL RD, Tubeless Ready, cotton construction, aramid bead, 170 tpi, 700x28mm
Skewer Front	Bontrager Switch chamfered thru axle
Skewer Rear	Bontrager Switch chamfered thru axle, removable lever
Shifter	SRAM RED AXS E1 // SRAM RED AXS E1
Front Derailleur	SRAM RED AXS E1, braze-on
Rear Derailleur	SRAM RED AXS E1, 36T max cog
Crank	SRAM RED AXS E1, power meter, 48/35, DUB, 170mm length
Bottom Bracket	SRAM DUB, T47 threaded, internal bearing
Cassette	SRAM RED XG-1290 E1, 10-33, 12 speed
Chain	SRAM RED E1
Brake Rotor	SRAM Paceline X, rounded, centerlock, 160mm
Saddle	Aeolus RSL, carbon rails, 145mm width, 50th anniversary edition
Seatpost	Madone aero carbon seatpost, 0mm offset, short length
Handlebar	Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 39cm control width, 42cm drop width, 100mm stem length
Battery	SRAM AXS battery pack (with charger)

Geometry Chart

B B Drop	6.8
Chainstay Length	41.1
Eff Top Tube	56.8
Frame Reach	39.4
Frame Size Letter	L
Frame Stack	58.2
Head Angle	73.8°
Head Tube Length	17.2
Offset	4
Saddle Rail Height Max Short	75.6
Saddle Rail Height Max Tall	79.8
Saddle Rail Height Min Short	69.3
Saddle Rail Height Min Tall	73.6
Seat Tube	54.8
Seat Tube Angle	73.4°
Standover	82
Trail	5.7
Wheelbase	99
Wheel Size	700c

Color

ICON NO. 76
