Product Data
SKU:
5259930
5259930
UPC/EAN:
601842626238
601842626238

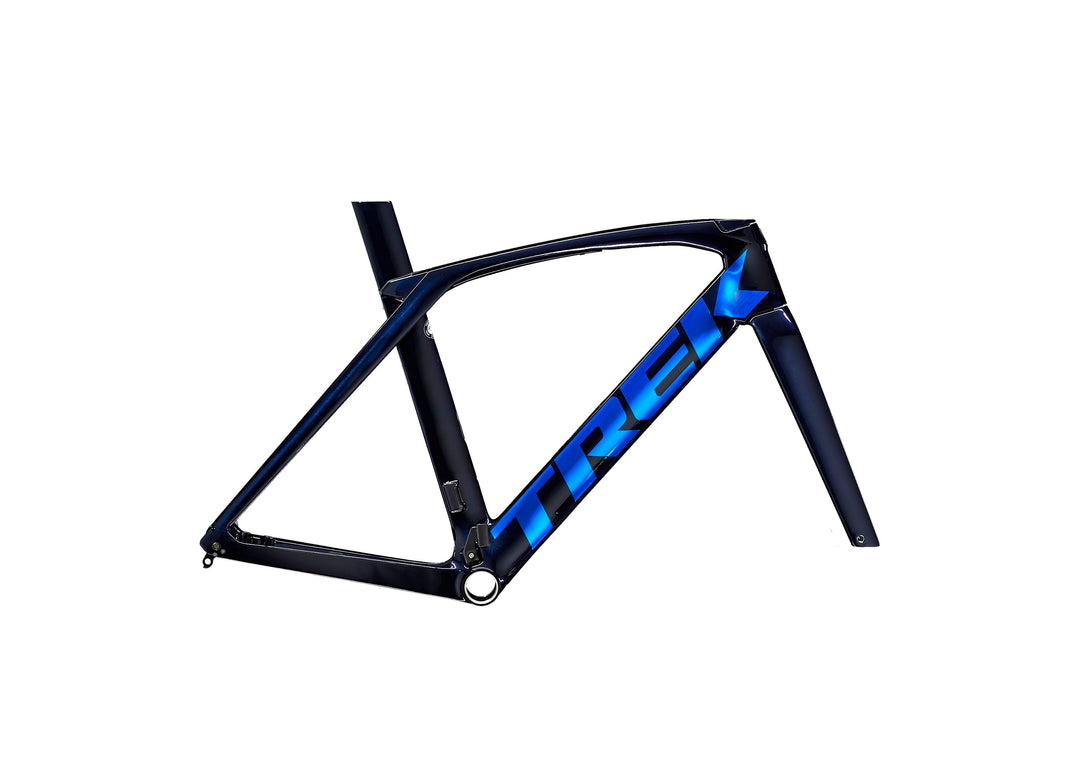

Madone SL Disc frameset is the ultimate platform for a high-value custom aerodynamic race bike. It's built with our lightweight 500 Series OCLV Carbon layup and Adjustable Top Tube IsoSpeed for an incredibly smooth ride.
![]()
![]()
![]()
- Adjustable Top Tube IsoSpeed lets you adjust compliance to your preference, and it's damped with an elastomer so it rebounds in a smooth, controlled, stable motion
- This bike looks awesome, like it's breaking speed records even when it's parked at the café for a post-ride espresso
- Disc brakes offer better braking performance and extra clearance for wider, more stable tires
- Includes a bearing top cap compatible with traditional stems
- Seatpost (available in two lengths/two offsets) sold separately
Race-winning aerodynamics
On the road and in the wind tunnel, Madone’s exclusive Kammtail Virtual Foil tube shape ranks among the most aero in the world.
Madone IsoSpeed decoupler
Trek engineers designed a decoupler that allows the seat tube to rotate independently from the top-tube-to-seatstay junction, increasing vertical compliance to twice that of our nearest competitor, without compromising pedaling efficiency. Result: you can ride harder, longer.
| Frame | 500 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, adjustable top tube IsoSpeed, invisible cable routing, 3S aero chain keeper, T47 BB, flat mount disc, Duo Trap S compatible, 142x12mm thru axle |
| Fork | Madone KVF full carbon, tapered carbon steerer, invisible cable routing, flat mount disc, carbon dropouts, 12x100mm thru axle |
| Skewer Front | Bontrager Switch thru axle |
| Skewer Rear | Bontrager Switch thru axle, removable lever |
| Front Derailleur | Mechanical front derailleurs must have a full-housing stop (example: Shimano toggle front derailleurs) |
Geometry Chart
| B B Drop | 7.2 |
| Chainstay Length | 41 |
| Eff Top Tube | 51.2 |
| Frame Reach | 37.3 |
| Frame Size Number | 47cm |
| Frame Stack | 50.7 |
| Head Angle | 72.1° |
| Head Tube Length | 10 |
| Offset | 4.5 |
| Saddle Rail Height Max Short | 61.5 |
| Saddle Rail Height Max Tall | 65 |
| Saddle Rail Height Min Short | 55.5 |
| Saddle Rail Height Min Tall | 59 |
| Seat Tube | 42.4 |
| Seat Tube Angle | 74.6° |
| Standover | 69.2 |
| Trail | 6.8 |
| Wheelbase | 97.2 |
| Wheel Size | 700c |
| Color | DEEP DARK BLUE |
