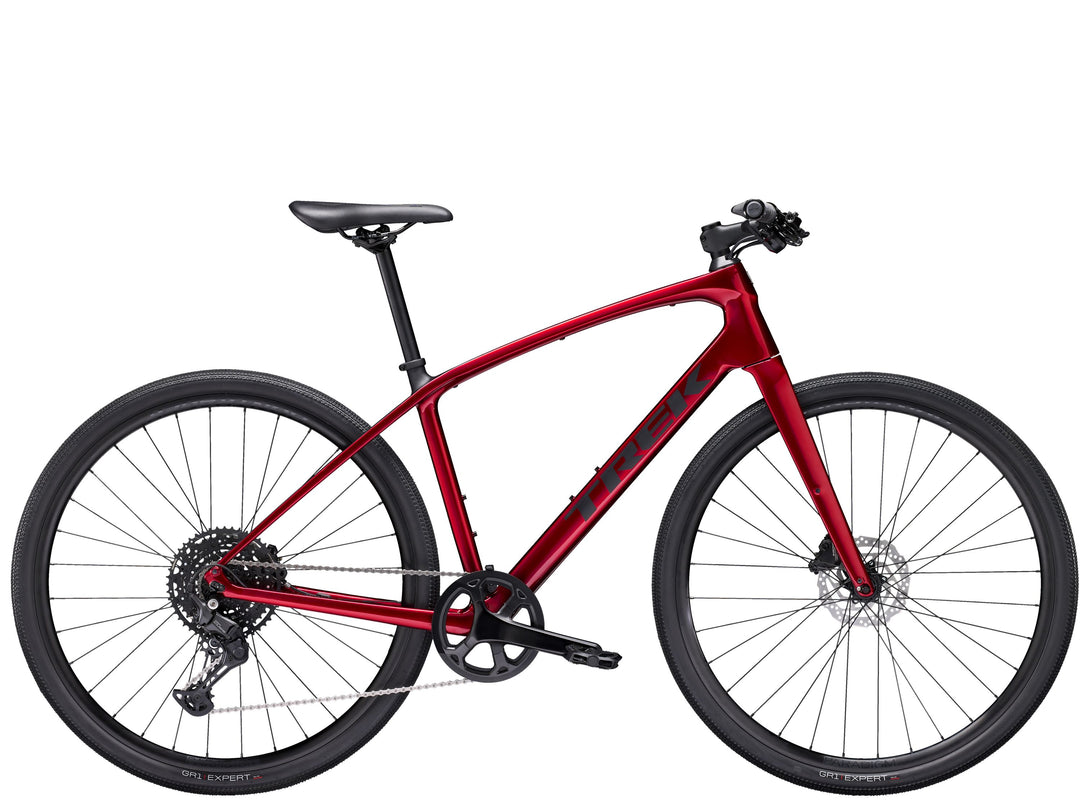

FX Sport SL 4 is a carbon fiber fitness bike for riders who want the speed of a lightweight road bike with the comfort and control of a flat handlebar. The 1x drivetrain simplifies shifting without sacrificing gear range, making this high-performance bike perfect for everything from solo workouts to speedy group rides.
- The 1x drivetrain delivers a wide range of gearing with the simplicity of a single shifter
- You get the superior ride quality of carbon without the bank-breaking price
- On your left! This fitness bike is more than capable of taking on speedy group road rides
- It's easy to accessorize with fenders, lights, and more!
Dialed-in to go all day
A slightly shorter reach and taller stack put you in a more upright, balanced position for smooth power and all-day rideability.
![]()

Light on weight. Big on performance.
Designed with 400 Series OCLV, the lightweight carbon frame keeps things fast and responsive, so you can accelerate quicker and handle with confidence.
![]()

1x drivetrain
A 1x drivetrain means more versatility, simpler shifting and less things to go wrong. You still have a wide range of gears, but with lighter and more intuitive shifting. Everything you need and nothing more.
![]()

Fast, smooth, reliable
With SRAM Apex, you get precise shifting and confident braking for a ride that feels quick, fun, and in control.
![]()

Ready for any path
Wide gravel tires keep you rolling fast with added traction and control, while increased clearance lets you take on rougher terrain with ease.
![]()

Pack it up, pack it in
Mounts for a top tube bag, rack, fenders and water bottles let you carry everything you need for day-long adventures, fast commutes, and anything in between.
![]()

| Fork |
Carbon, hidden fender mounts, flat mount disc, 100x5mm thru-skew |
| Tire |
Bontrager GR1 Expert, Hard-Case Lite, wire bead, 60 tpi, 700x40c |
| Hub Front |
Formula CL-51 alloy, 100x5mm |
| Hub Rear |
Formula CL-52 alloy, 135x5mm |
| Rim |
Bontrager Paradigm, Tubeless Ready, 32-hole, 21mm width, presta valve |
| Spokes |
14g stainless steel, black |
| Skewer Front |
135x5mm bolt-on |
| Skewer Rear |
169x5mm bolt-on |
| Shifter |
Shimano CUES U6000 w/optical gear display, 10 speed |
| Rear Derailleur |
Shimano CUES U6000 GS |
| Crank |
Prowheel alloy, 42T narrow-wide ring, 175mm length |
| Cassette |
Shimano CUES LG300, LINKGLIDE, 11-48, 10 speed |
| Chain |
Shimano LG500, 9/10/11 speed |
| Brake |
Shimano hydraulic disc, MT201 lever, UR300 caliper // Shimano hydraulic disc, MT201 lever, UR300 caliper |
| Brake Rotor |
Shimano RT10, centerlock, 160mm |
| Pedal |
Bontrager City pedals |
| Saddle |
Bontrager H1 |
| Seatpost |
Bontrager alloy, 27.2mm, 12mm offset, 330mm length |
| Handlebar |
Bontrager Satellite Plus IsoZone, alloy, 31.8mm, 15mm rise, 660mm width |
| Stem |
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length |
| Grips |
Bontrager Satellite IsoZone Plus, lock-on, ergonomic // |
Geometry Chart
| B B Drop |
6.5 |
| B B Height |
28.5 |
| Chainstay Length |
44.2 |
| Eff Top Tube |
56.3 |
| Frame Reach |
39.3 |
| Frame Size Letter |
M |
| Frame Stack |
59.4 |
| Head Angle |
71.0° |
| Head Tube Length |
16.5 |
| Offset |
5 |
| Seat Tube |
45.7 |
| Seat Tube Angle |
74.0° |
| Standover |
78.7 |
| Trail |
6.8 |
| Wheelbase |
106.5 |
| Wheel Size |
700c |
| Color |
GLOSS CRIMSON/MATTE DEEP SMOKE |
