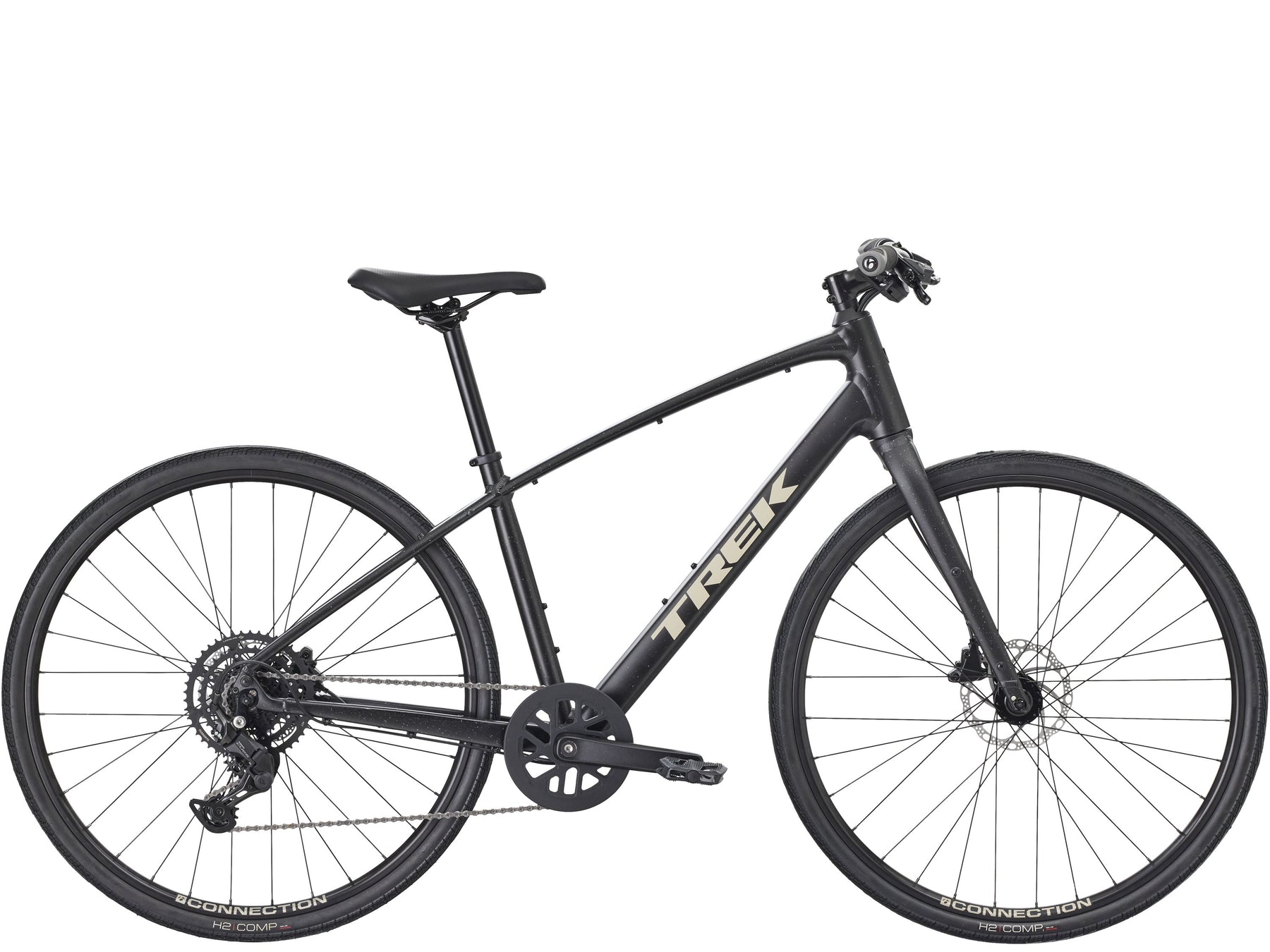

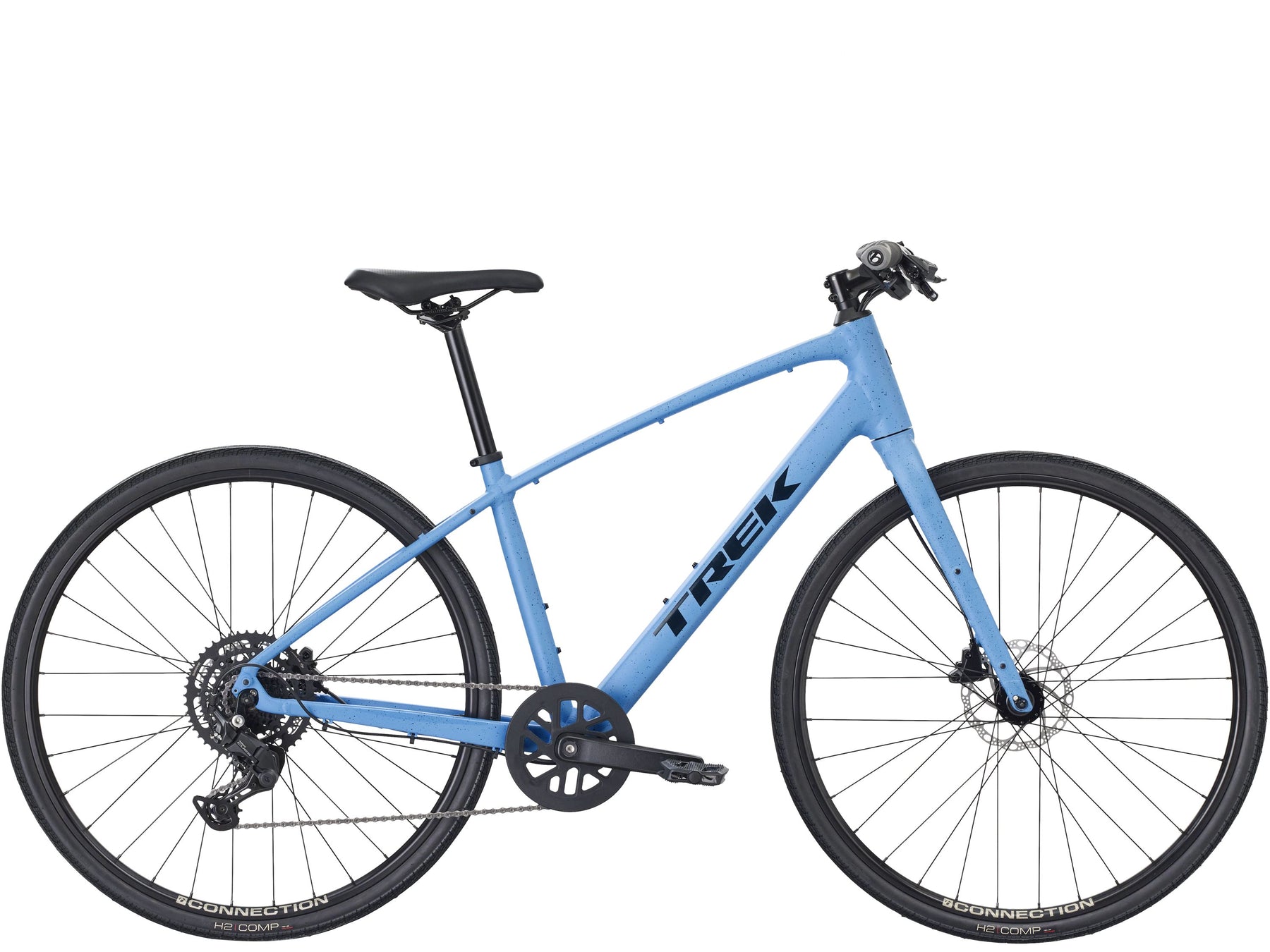

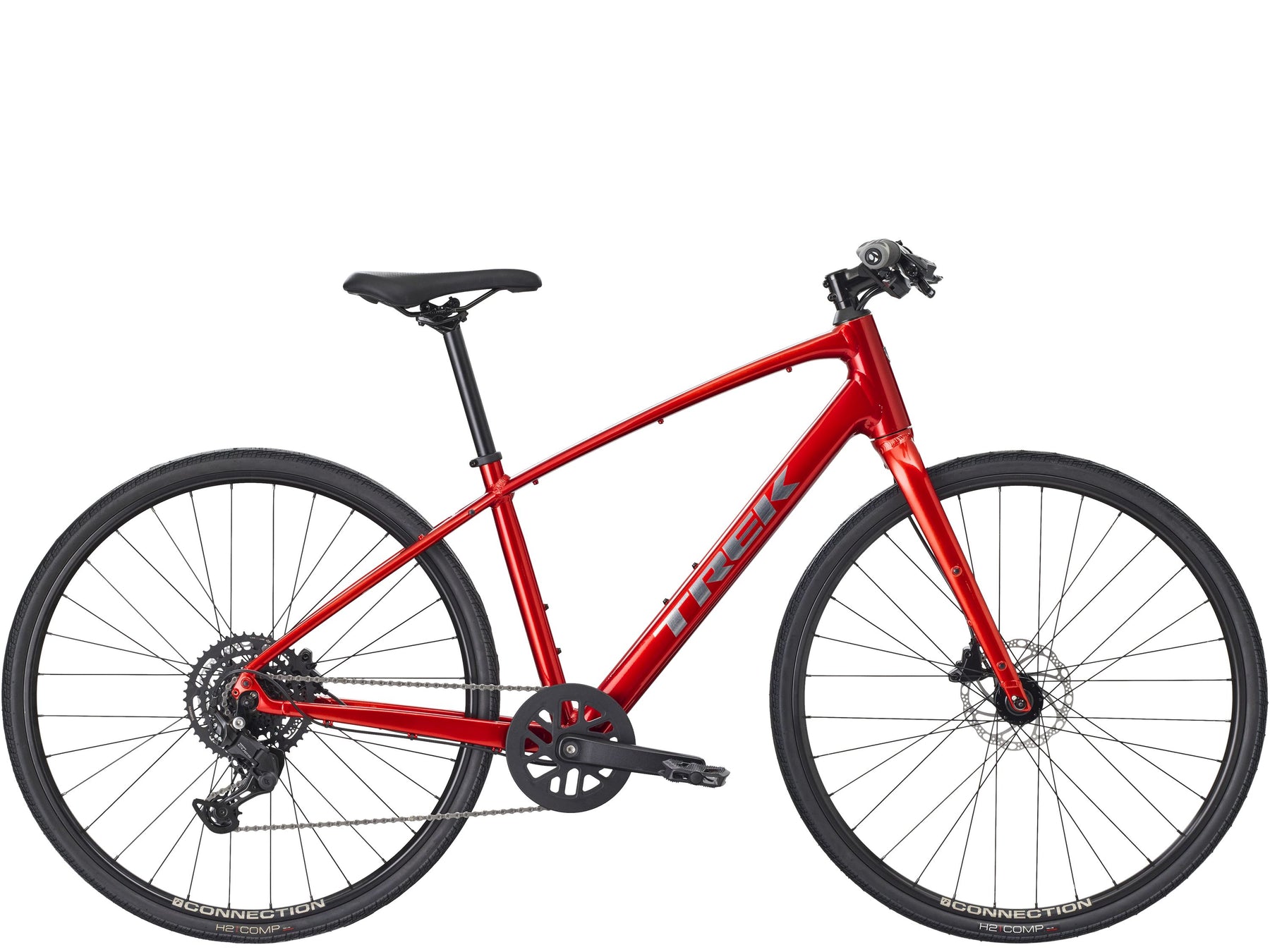

FX 2 is a stylish and versatile hybrid bike built for everyday rides, fitness, and commuting. Its lightweight frame and 9-speed Shimano CUES drivetrain deliver smooth, reliable shifting, while hydraulic disc brakes provide confident stopping power. With mounts for racks and accessories, it’s easy to set it up for whatever your day looks like.

• The stepthrough frame makes it easy to hop on and go, and hop off when your ride is over
• The cables are routed internally, which protects them from the elements and adds to the bike's sleek look
• It's easy to accessorize with racks, a kickstand, fenders, lights, and more!
• Like every Trek hybrid, it's backed by a lifetime warranty and supported by a wide network of retail partners

Fast and efficient

Our active geometry puts you in a more comfortable, upright position, so you can ride longer, feel less fatigue, and enjoy every mile.

Smooth, reliable shifting

The Shimano CUES drivetrain delivers smooth, dependable shifting with low-maintenance performance you can count on—ride after ride.

Pack it up, pack it in

Mounts for a top tube bag, rack, fenders and water bottles let you carry everything you need for day-long adventures, fast commutes, and anything in between.

Upgrade your pedals and love your bike more

Pedals are two of the five touchpoints that connect you with your bike, and even though this bike comes with a pair, upgrading to pedals that boost control and grip will greatly improve your ride. See the pedal guide and find the best pedals for your riding style. We recommend flat pedals for simple versatility.

Frame	Alpha Gold Aluminum, internal cable routing, rack & fender mounts, post mount disc, kickstand mount, 135x5mm QR
Fork	FX alloy, flat-mount disc, rack mounts, 410mm axle-to-crown, ThruSkew 5mm QR
Tire	Bontrager H2 Comp, wire bead, 30 tpi, 700x35mm
Hub Front	Formula DC-20, alloy, 6-bolt, 100x5mm
Hub Rear	Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm
Rim	Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve
Skewer Front	139x5mm bolt-on
Skewer Rear	152x5mm QR
Shifter	Shimano U4000, 9 speed
Rear Derailleur	Shimano CUES U4000
Crank	ProWheel Pro alloy, 40T narrow-wide steel ring, 170mm length
Bottom Bracket	Sealed cartridge, 68mm
Cassette	Shimano LINKGLIDE LG300, 11-46, 9 speed
Brake Rotor	Tektro wave, 6-bolt, 160mm
Pedal	Bontrager City pedals
Saddle	Bontrager Sport
Seatpost	Bontrager alloy, 27.2mm, 12mm offset, 330mm length
Handlebar	Bontrager alloy, 31.8mm, 15mm rise, 600mm width
Stem	Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 90mm length

Geometry Chart

B B Drop	6.5
B B Height	28.5
Chainstay Length	44.7
Eff Top Tube	52.8
Frame Reach	38.3
Frame Size Letter	XS
Frame Size Number	40
Frame Stack	54.3
Head Angle	70.0°
Head Tube Length	11.5
Offset	5
Seat Tube	33
Seat Tube Angle	75.0°
Standover	67.5
Trail	7.4
Wheelbase	105.2
Wheel Size	700c
