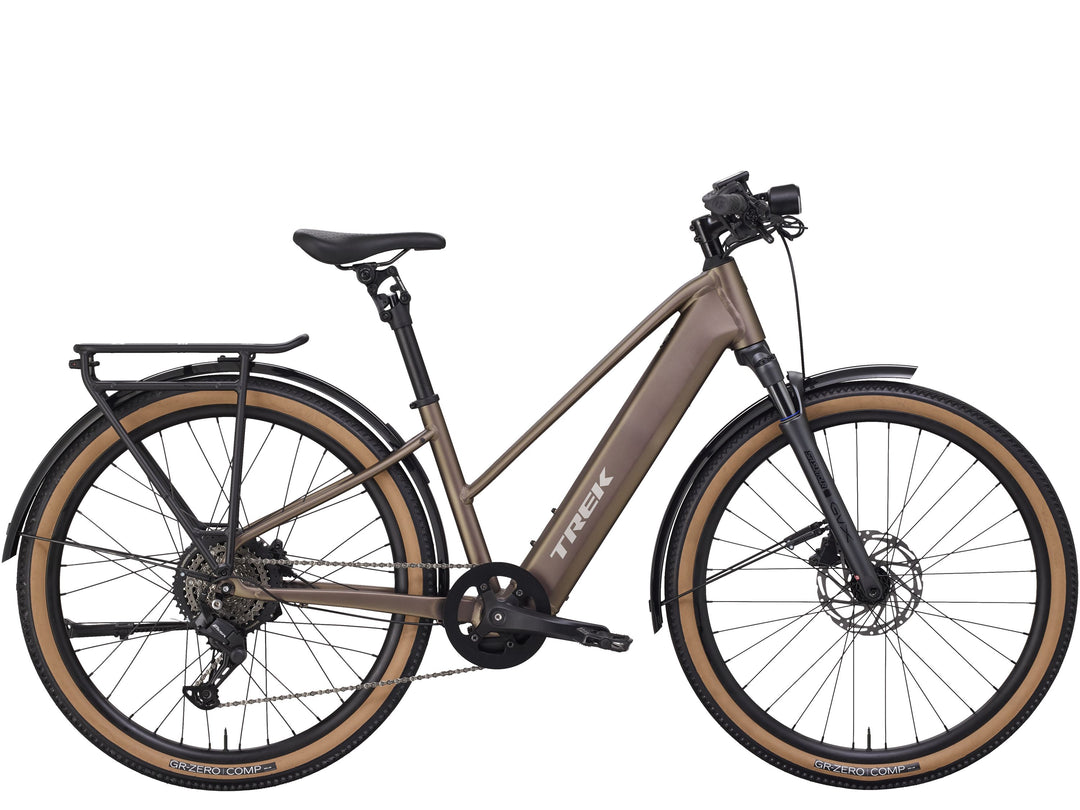

FX+ 2 Midstep is a fitness-focused electric bike with a confidence-boosting midstep frame that’s easy to get on and off. It delivers pedal assist up to 28mph and features an optional throttle for extra support when you want it. A suspension fork and seatpost help smooth rough paths, while gravel tires, built-in lights, turn signals, and the Trek Central app keep your ride comfortable, visible, and connected. This class 3 e-bike is prohibited from sale in California under CA SB 1271 and cannot be shipped to California.

Throttle up the fun

Press the thumb throttle and go — whether you’re starting from a stop or climbing a hill, you’ll get a boost right when you need it. Plus, the throttle works with your assist level, so the extra support feels smooth, natural, and fun.

See and be seen

A rear brake light with integrated turn signals helps alert others of your next move, while the fork-mounted headlight turns with you to light the way around every corner.

Charging made simple

The EasyMag charger uses a directionless magnetic connection to easily snap into place every time. LED lights clearly show your battery level at a glance, and the optional wall mount keeps your setup clean and ready to grab and go.

Stay connected with Trek Central

FX+ pairs with the Trek Central app so you can easily adjust your bike's settings for longer range, map routes, track ride stats, optimize your bike battery, and more!

eLock bike security

Lock or unlock your e-bike directly from the Trek Central app or on the full-color display for added security. Enable automatic unlocking when your phone is within Bluetooth range for seamless, keyless convenience.

Carry what you need

The MIK rear rack supports up to 55 lbs, so you can easily carry your daily essentials — from work bags and groceries to everything you need to break a sweat.

Frame	Alpha Gold Aluminum, internal cable routing, internal battery, rack & fender mounts, flat mount disc brake, kickstand mount, 144.5mm OLD hub motor spacing
Fork	SR Suntour GVX32-D, air spring, lockout, rebound adjuster, 100mm QR, 63mm travel
Tire	Bontrager GR0 Comp, wire bead, 60 tpi, 650x50mm
Rim	Alloy double wall, 36h // Alloy double wall, 32H
Spokes	14g stainless steel, black
Shifter	Shimano M315, 8 speed
Rear Derailleur	Shimano ESSA U2000
Crank	Alloy, 40T steel chainring, 170mm length
Cassette	Shimano HG400, 11-45, 8 speed
Chain	KMC Z8.3
Brake	Tektro HD-E3110 hydraulic disc // Tektro HD-E3110 hydraulic disc
Brake Rotor	Tektro, 6-bolt, 180mm
Pedal	Bontrager City pedals
Seatpost	SR Suntour, suspension, 50mm travel, 31.6mm, 350mm length
Seat Collar	Bolt-on, 36.4mm
Handlebar	Bontrager alloy, 31.8mm, 15mm rise, 690mm width
Stem	Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
Grips	Bontrager XR Endurance Comp, lock-on
Fender	SKS wide, plastic // SKS wide, plastic
Cargo Rack	MIK-compatible alloy rear rack
Light	Sate-lite M-15, brake and turn signal // Sate-lite C19, headlight
Kickstand	Adjustable length rear mount alloy kickstand
Battery	520Wh integrated, removable
Motor	Hub drive motor, 60 Nm, 500W, 36H, black
Charger	Trek Easy Mag charger, 2.7A, 54.9V output, 100V-240V AC input

Geometry Chart

B B Drop	7
B B Height	28.6
Chainstay Length	46.8
Eff Top Tube	57.4
Frame Reach	38.5
Frame Size Letter	M
Frame Size Number	50cm
Frame Stack	62
Head Angle	70.5°
Head Tube Length	17
Offset	5
Seat Tube	46.3
Seat Tube Angle	73.0°
Standover	67.2
Trail	7.3
Wheelbase	109.5
Wheel Size	27.5"

Color

BRONZE AGE
