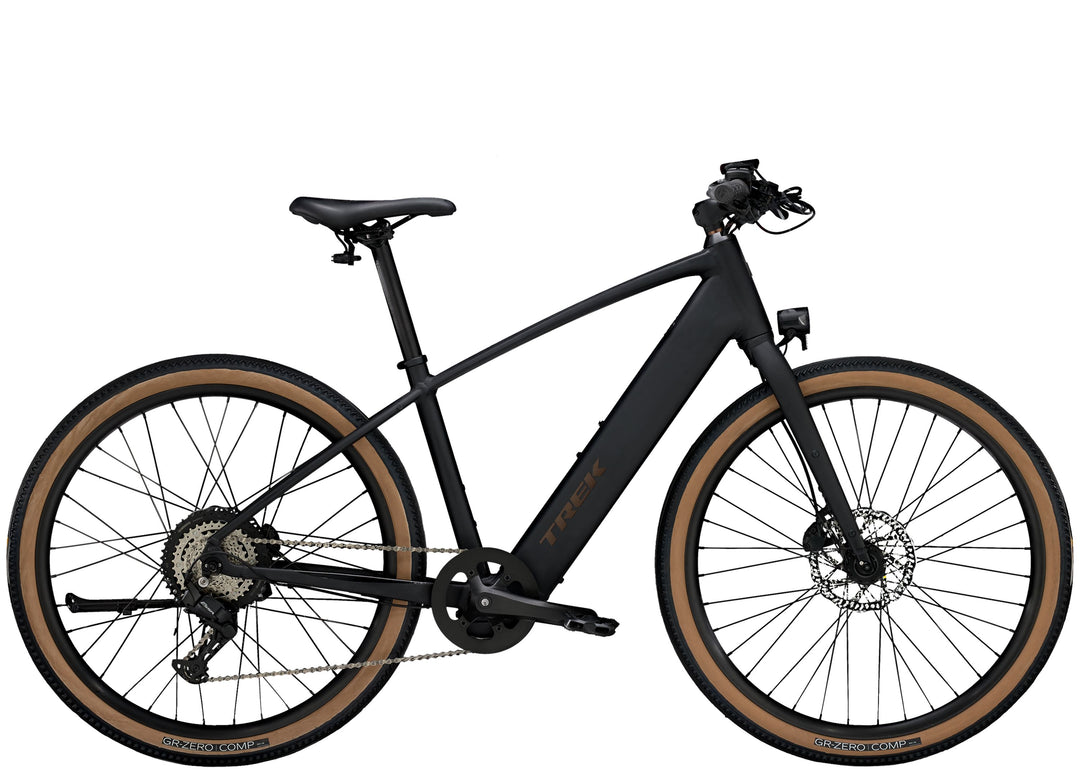

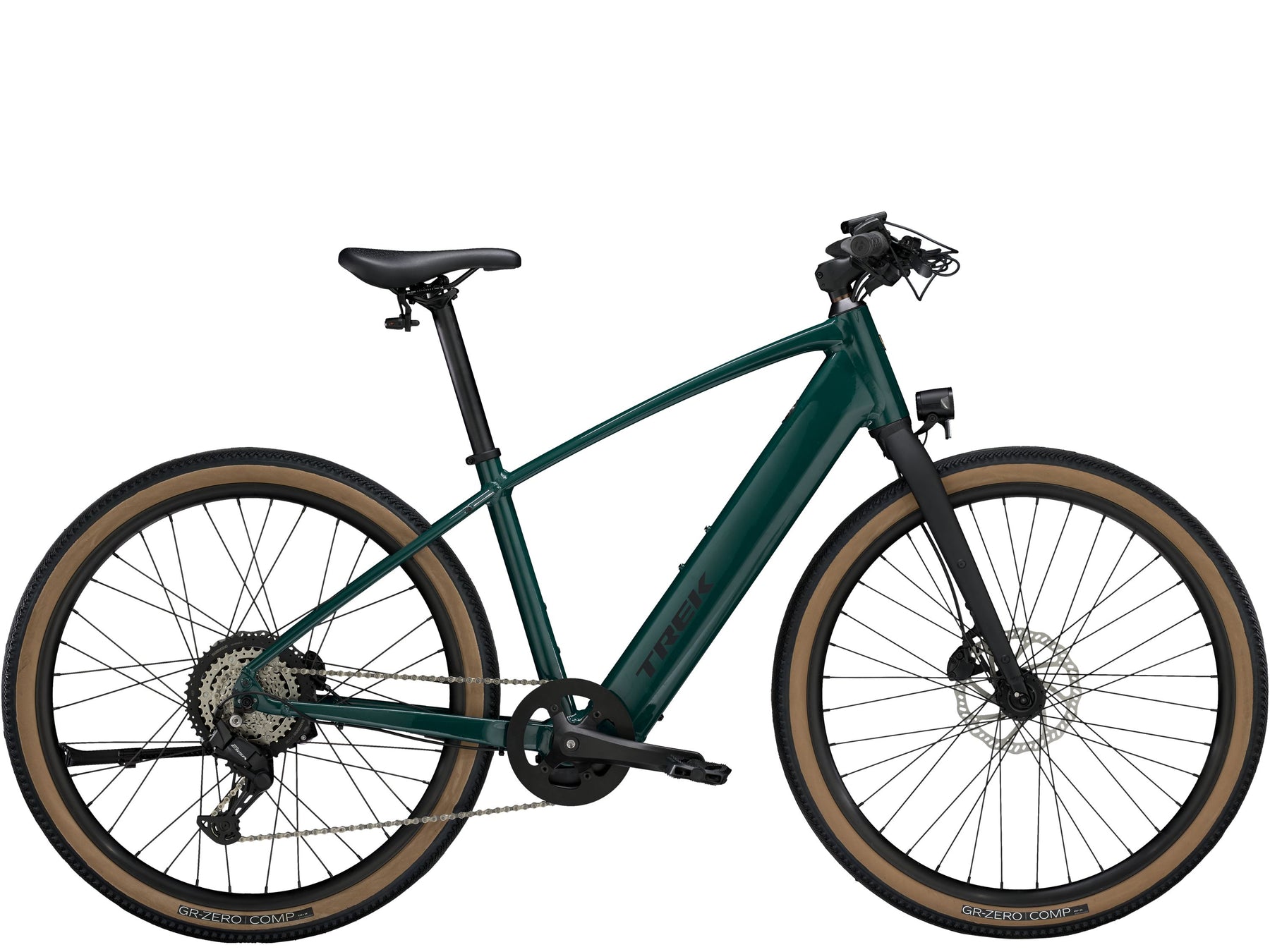

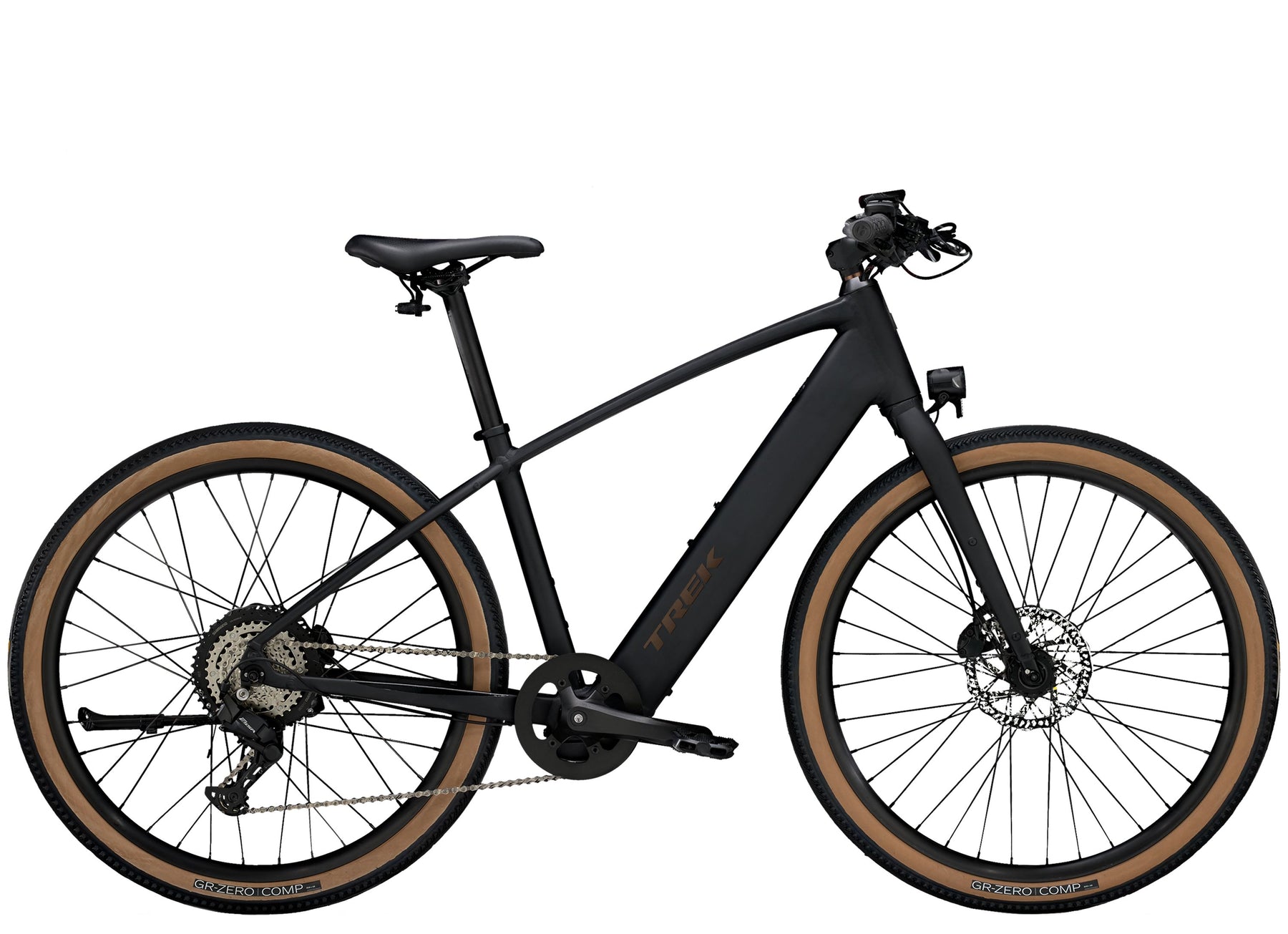

FX+ 1 is a lightweight, versatile fitness e-bike built to make everyday rides faster and more fun. Pedal assist up to 20mph gives you a smooth, natural boost, and the thumb throttle makes getting up to speed feel effortless. Gravel tires add stability across surfaces, while integrated turn signals and a brake light help you stand out and ride with confidence.

• You get the convenience of a throttle for accelerating and the smooth support of pedal assist while you ride
• The portable magnetic wall-mount charger makes getting your battery ready to ride a hassle-free process
• Wide, stable tires deliver tons of traction and confidence for riding through town, on paths, and on rail trails
• Integrated lights, turn signals, and brake light help you see and be seen wherever you roll
• You get low-maintenance, reliable shifting thanks to Shimano's 8-speed ESSA drivetrain

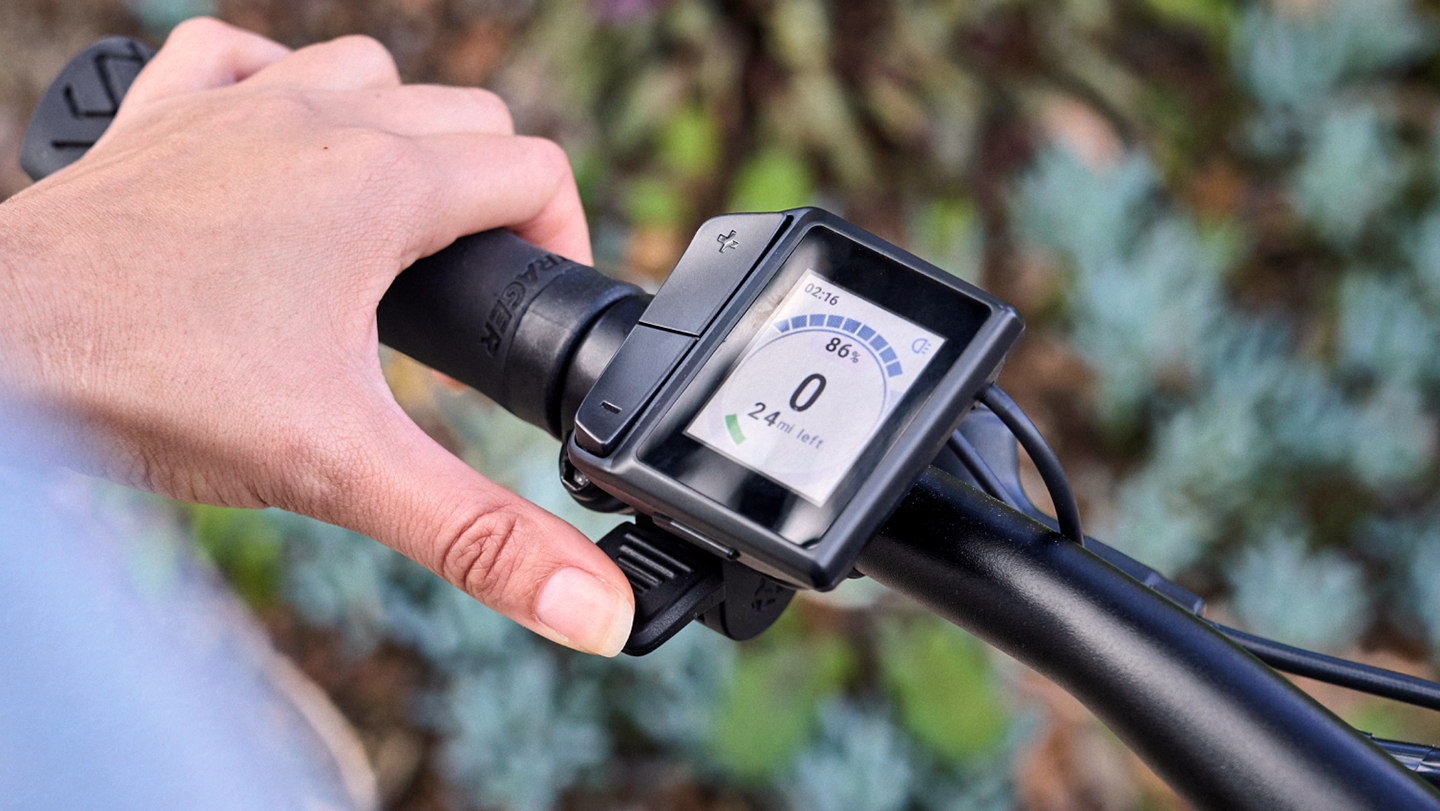

Throttle up the fun

Press the thumb throttle and go — whether you’re starting from a stop or climbing a hill, you’ll get a boost right when you need it. Plus, the throttle works with your assist level, so the extra support feels smooth, natural, and fun.

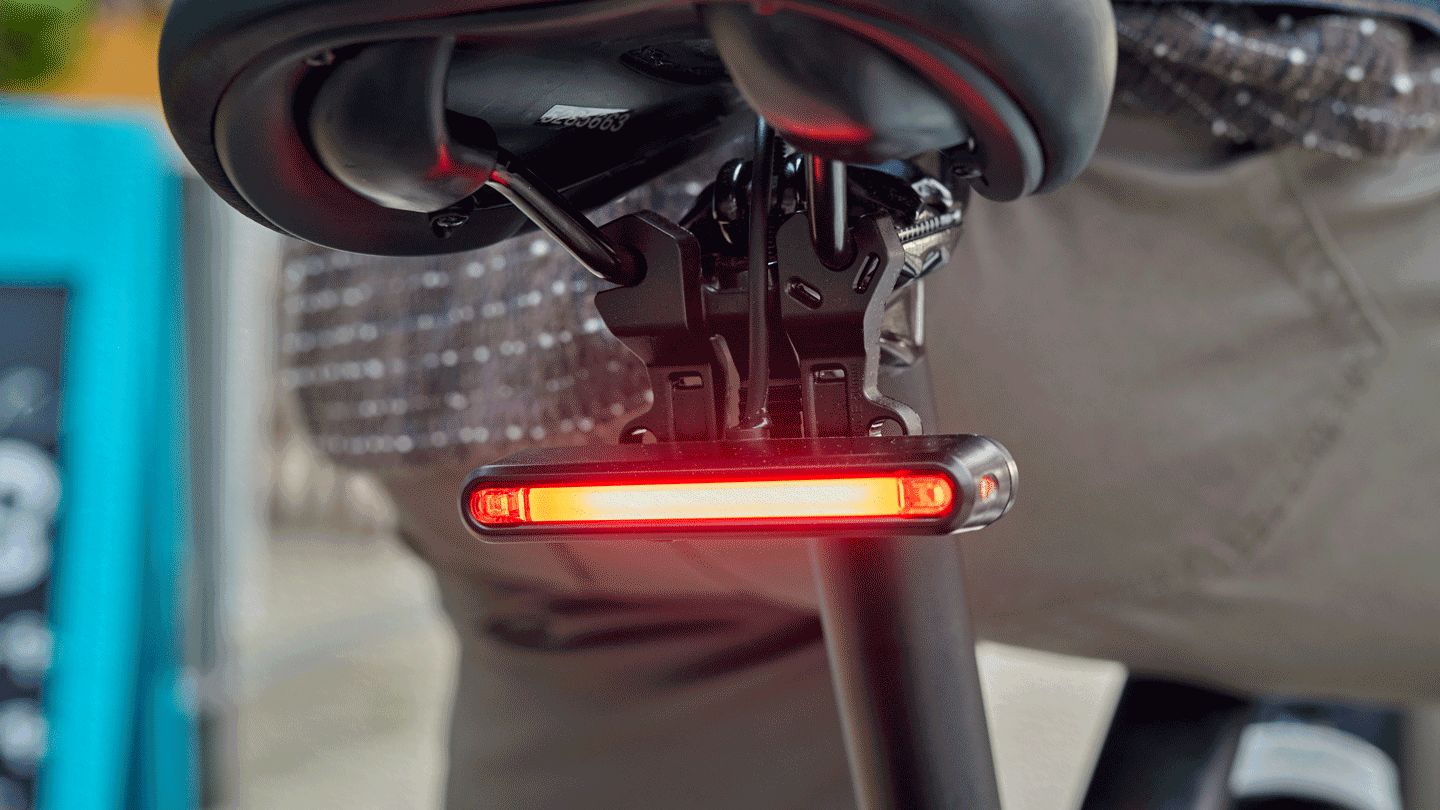

Send the right signals

FX+ throttle includes a rear brake light with built-in turn signals, so you’re easier to see and can signal your moves with confidence.

Charging made simple

The EasyMag charger uses a directionless magnetic connection to easily snap into place every time. LED lights clearly show your battery level at a glance, and the optional wall mount keeps your setup clean and ready to grab and go.

Stay connected with Trek Central

FX+ throttle pairs with the Trek Central app so you can easily adjust your bike's settings for longer range, map routes, track ride stats, optimize your bike battery, and more!

eLock bike security

Lock or unlock your e-bike directly from the Trek Central app or on the full-color display for added security. Enable automatic unlocking when your phone is within Bluetooth range for seamless, keyless convenience.

Go beyond the pavement

Wide gravel tires add stability and grip across mixed surfaces, smoothing out rough pavement and soaking up bumps. They give you the confidence to explore beyond the pavement — from city streets to dirt paths and gravel roads.

Frame	Alpha Gold Aluminum, internal cable routing, internal battery, rack & fender mounts, flat mount disc brake, kickstand mount, 144.5mm OLD hub motor spacing
Fork	Alloy, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm bolt-on skewer
Tire	Bontrager GR0 Comp, wire bead, 60 tpi, 650x50mm
Hub Front	Alloy low-flange w/6-bolt disc, 36h, w/QR
Rim	Alloy double wall, 36h
Skewer Front	132x5mm QR, ThruSkew
Shifter	Shimano M315, 8 speed
Rear Derailleur	Shimano ESSA U2000
Crank	Alloy, 40T steel chainring, 170mm length
Cassette	Shimano HG400, 11-45, 8 speed
Chain	KMC Z8.3
Brake	Rush BH-286 hydraulic disc, 180mm rotor // Rush BH-286 hydraulic disc, 180mm rotor
Pedal	Bontrager City pedals
Saddle	Bontrager Sport
Seatpost	Bontrager alloy, 31.6mm, 12mm offset, 330mm length
Seat Collar	Bolt-on, 36.4mm
Handlebar	Bontrager alloy, 31.8mm, 15mm rise, 690mm width
Stem	Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
Grips	Bontrager XR Endurance Comp, lock-on
Light	Herrmans MR8, 180 lumen, 60 lux, LED headlight // Sate-Lite M-15 with turn signal and brake light function
Kickstand	Adjustable length alloy kickstand
Battery	520Wh, integrated in down tube
Motor	Hub drive motor, 60 Nm, 500W, 36H, black
Charger	Trek Easy Mag charger, 2.7A, 54.9V output, 100V-240V AC input

Geometry Chart

B B Drop	7
B B Height	28.6
Chainstay Length	46.8
Eff Top Tube	56.9
Frame Reach	38.2
Frame Size Letter	S
Frame Size Number	45cm
Frame Stack	60.4
Head Angle	70.0°
Head Tube Length	15.5
Offset	5
Seat Tube	40.8
Seat Tube Angle	73.5°
Standover	73.9
Trail	7.6
Wheelbase	109.2
Wheel Size	27.5"
