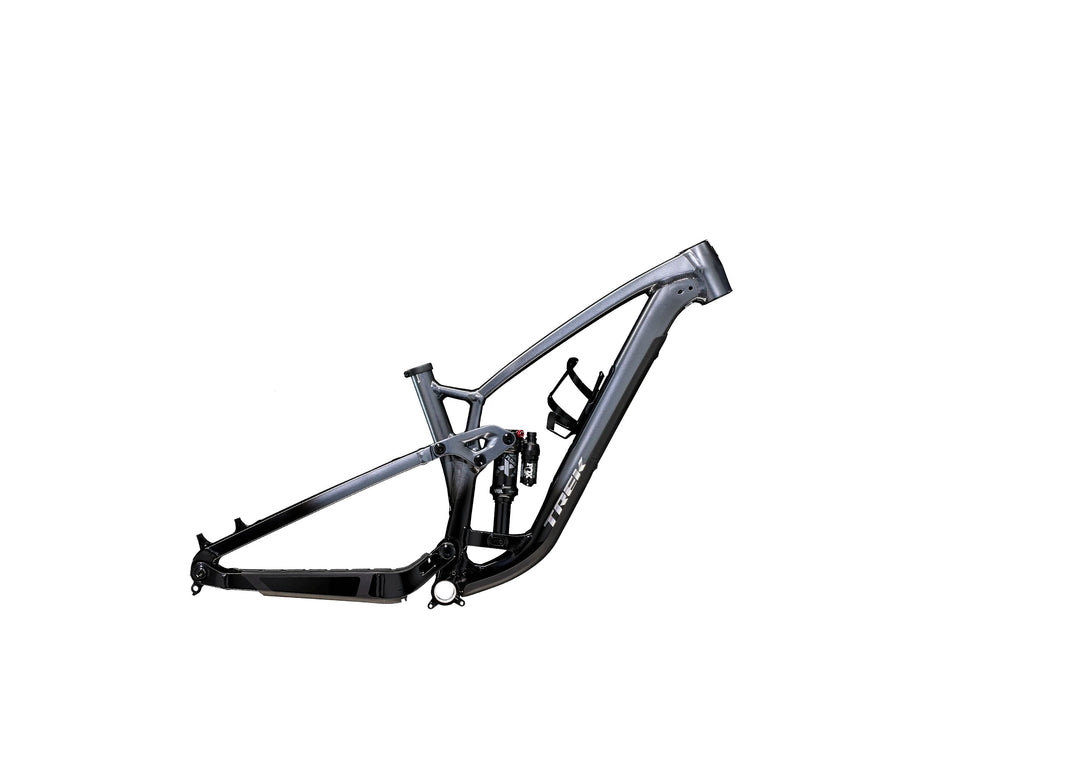

Fuel EX AL Frameset is an aluminum trail frameset that's only limit is your imagination. It features progressive trail geometry that stretches out the front end for more confidence on descents, while keeping you perched in the back for punchy climbs. Its 140mm of rear travel makes light work of tech trails and jump lines, and is ready for your dream build.

• Fuel EX Gen 6 gives you 140/150mm of travel and slack, adjustable geometry for an extra capable ride, plus, in-frame storage on all models — even alloy
• It features modern geometry that's ready for steep and loose descents, and hammering up climbs
• With the adjustable angle headset (angled cups sold separately) and Mino Link, you can choose from six different geometry configurations
• You'll have all the space you need for your treats and tools with in-frame storage
• Its FOX Performance rear suspension keeps the ride feeling plush and pedaling efficient

Internal Storage

Internal frame storage makes it easy to ditch the pack and still carry your ride essentials.

Active Braking Pivot

Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.

Slack or steep, the choice is yours

Install angle adjust headset cups (sold separately) to tweak the 64.5-degree head tube angle a degree steeper or slacker to your liking — all without impacting your bottom bracket height.

Adjust the sus for full send

Adjust leverage rate with just a flip of a chip. Ride it in the Less progressive setting for a plusher feel perfect for rugged trails with square-edge bumps. Flip it to More progressive when you're hitting big features and don’t want to bottom-out, or when you want to run a coil shock.

Size-specific stays

Size-specific chainstays provide balanced handling to keep the ride nimble for smaller riders and improve front wheel traction on climbs for taller riders.

Business in the front, party in the back

Craving the nimble ride of 27.5˝ wheels but don’t want to sacrifice the speed of a 29er? No need to choose. Fuel EX is mullet-ready, just throw Mino Link in high, toss on a 160mm fork, and get ready to party.

Frame	Alpha Platinum Aluminum, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140mm travel
Shock	Fox Performance Float X, 2-position damper, 185mm x 55mm
Skewer Rear	Bontrager Switch thru axle, removable lever
Headset	Integrated cartridge bearing, 1-1/8'' top, 1.5'' bottom, angle adjust cup compatible

Geometry Chart

B B Drop	2.1
B B Height	33.7
Chainstay Length	43.4
Eff Seat Tube Angle	78.9°
Eff Top Tube	51.6
Frame Reach	40.4
Frame Size Letter	XS
Frame Stack	57.2
Head Angle	64.9°
Head Tube Length	9.5
Offset	4.4
Position	High
Seat Tube	36
Seat Tube Angle	71.2°
Standover	72
Trail	11.9
Wheelbase	114.4
Wheel Size	27.5"

Color

MATTE GALACTIC GREY TO BLACK FADE
