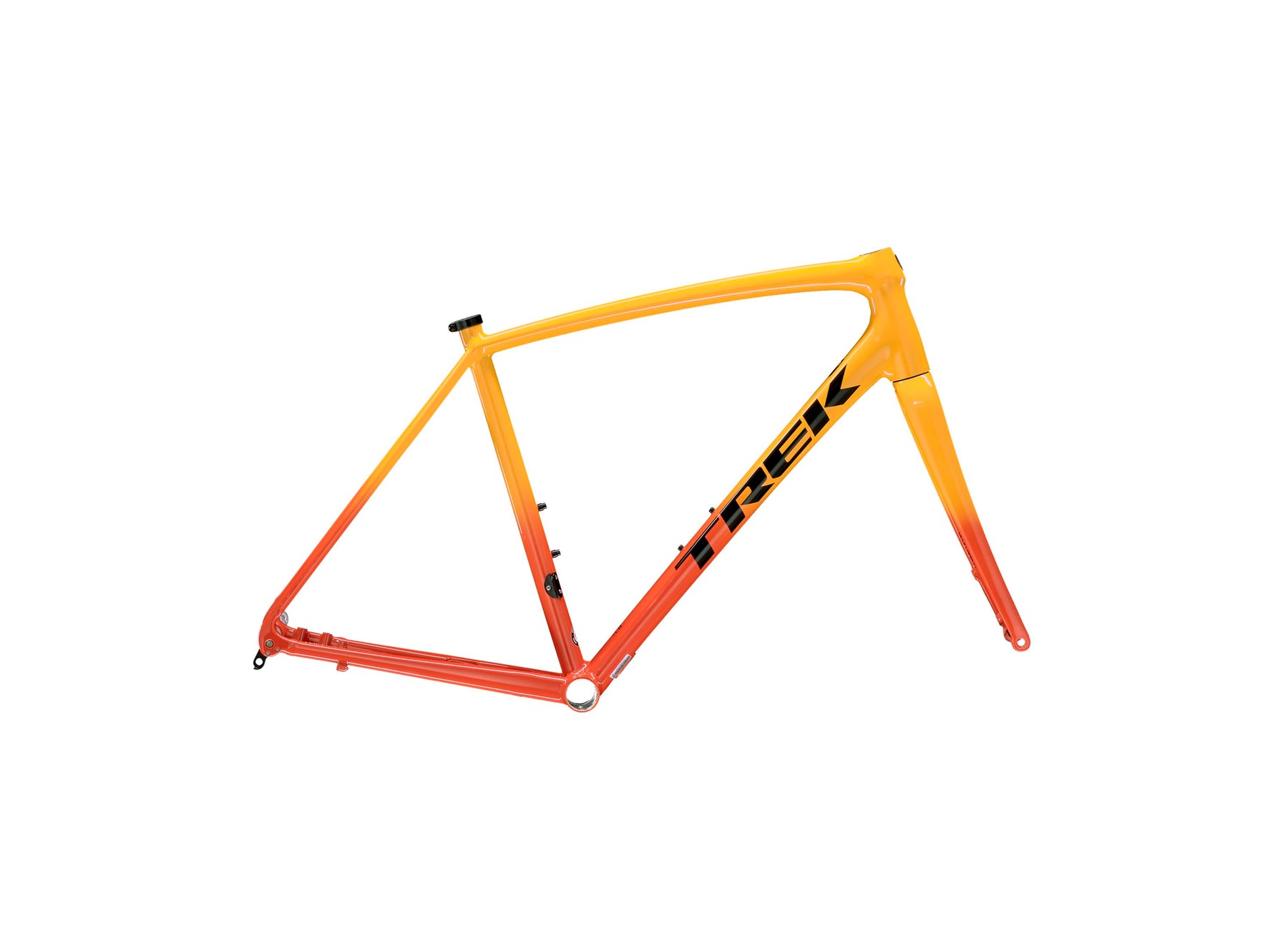

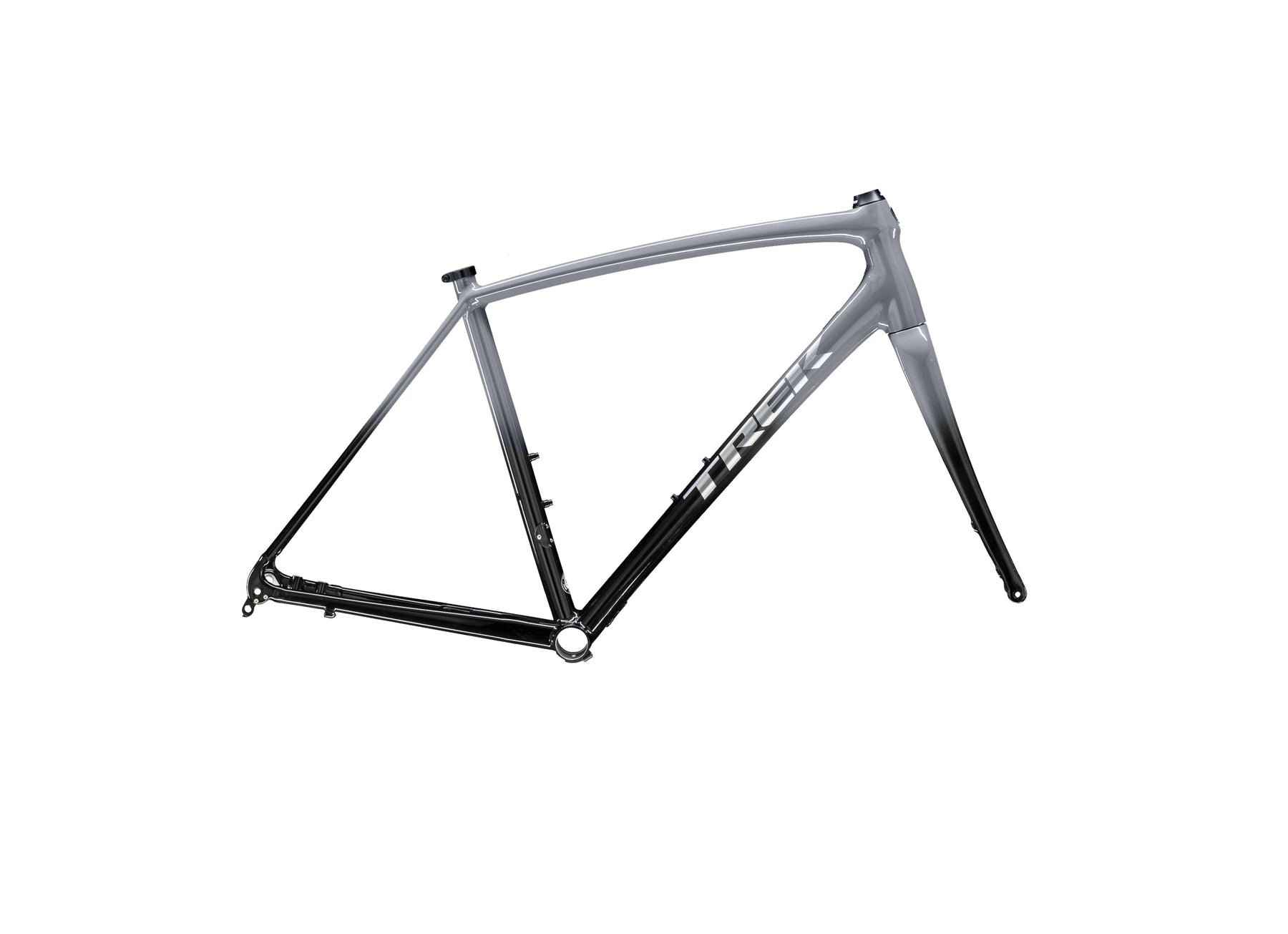

Émonda ALR Disc frameset gives you the look and performance of carbon at an alloy price point that's far friendlier on the wallet. Shaped tubes and Invisible Weld Technology make this aluminum disc road bike frame the perfect starting point for a high-performance, high-value build.

• It climbs fast, corners on rails, and descends with confidence
• Disc brakes offer better braking performance and extra clearance for wider, more stable tires
• Proven H2 geometry gives you a ride quality that stands up in every way to far more expensive carbon bikes
• Internal cable routing extends the life of your cables and adds to the bike's sleek look

Frame	Ultralight 300 Series Alpha Aluminum, Invisible Weld technology, tapered head tube, Control Freak internal routing, DuoTrap S compatible, flat mount disc, 142x12mm thru axle
Skewer Front	Bontrager Switch thru axle
Skewer Rear	Bontrager Switch thru axle, removable lever
Headset	FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom

Geometry Chart

B B Drop	6.8
Chainstay Length	41.2
Eff Top Tube	59.8
Frame Reach	39.8
Frame Size Number	62cm
Frame Stack	63.4
Head Angle	73.9°
Head Tube Length	23
Offset	4
Seat Tube	59.3
Seat Tube Angle	72.5°
Standover	82.2
Trail	5.5
Wheelbase	101
Wheel Size	700c
