Trek Domane SL 6 Gen 4
In-Store Pickup Only
Fully assembled, tuned, and test-ridden—ready to ride at pickup from our shop.
Product Data
SKU:
5322664
5322664
UPC/EAN:
197216040606
197216040606

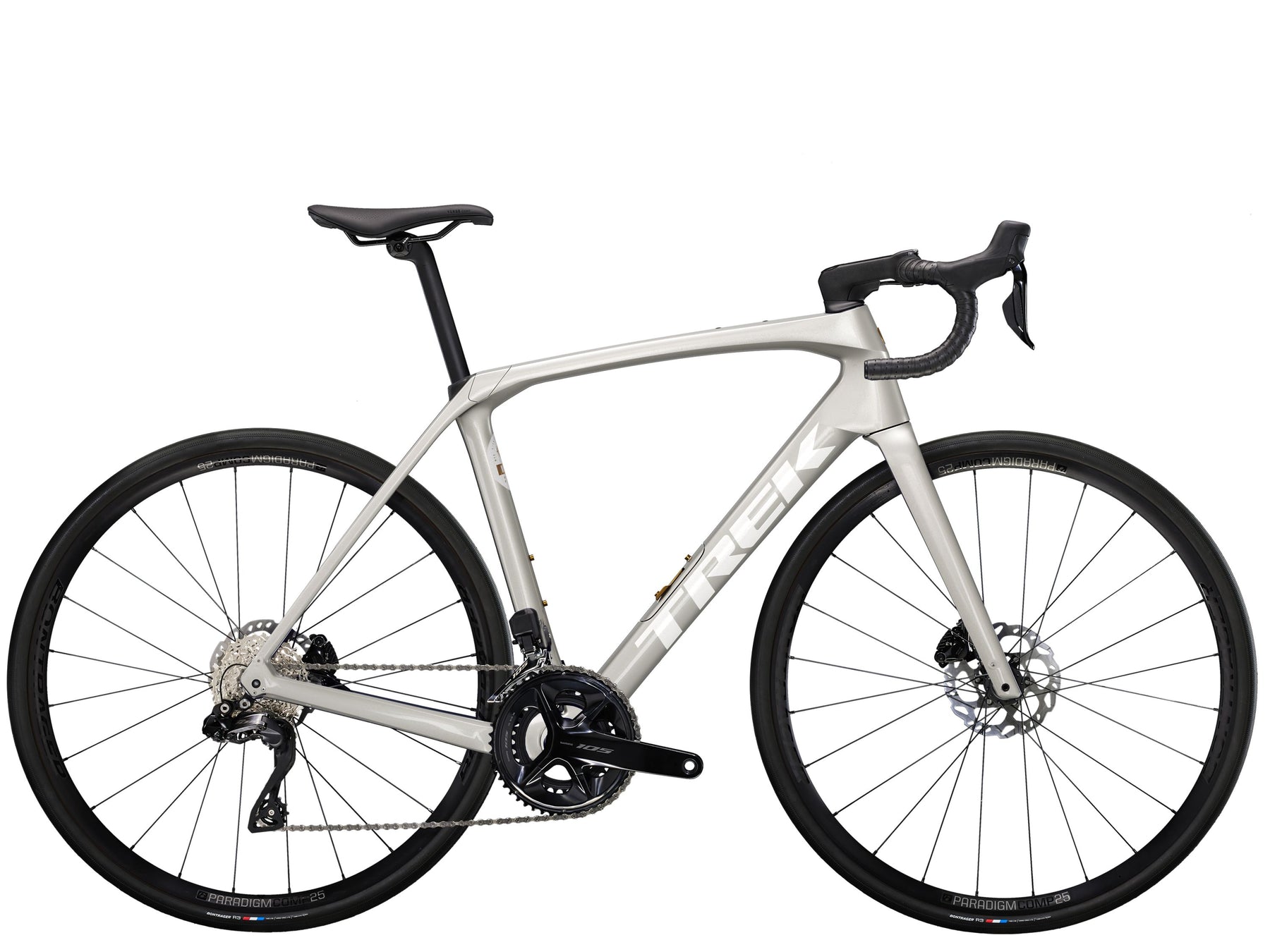

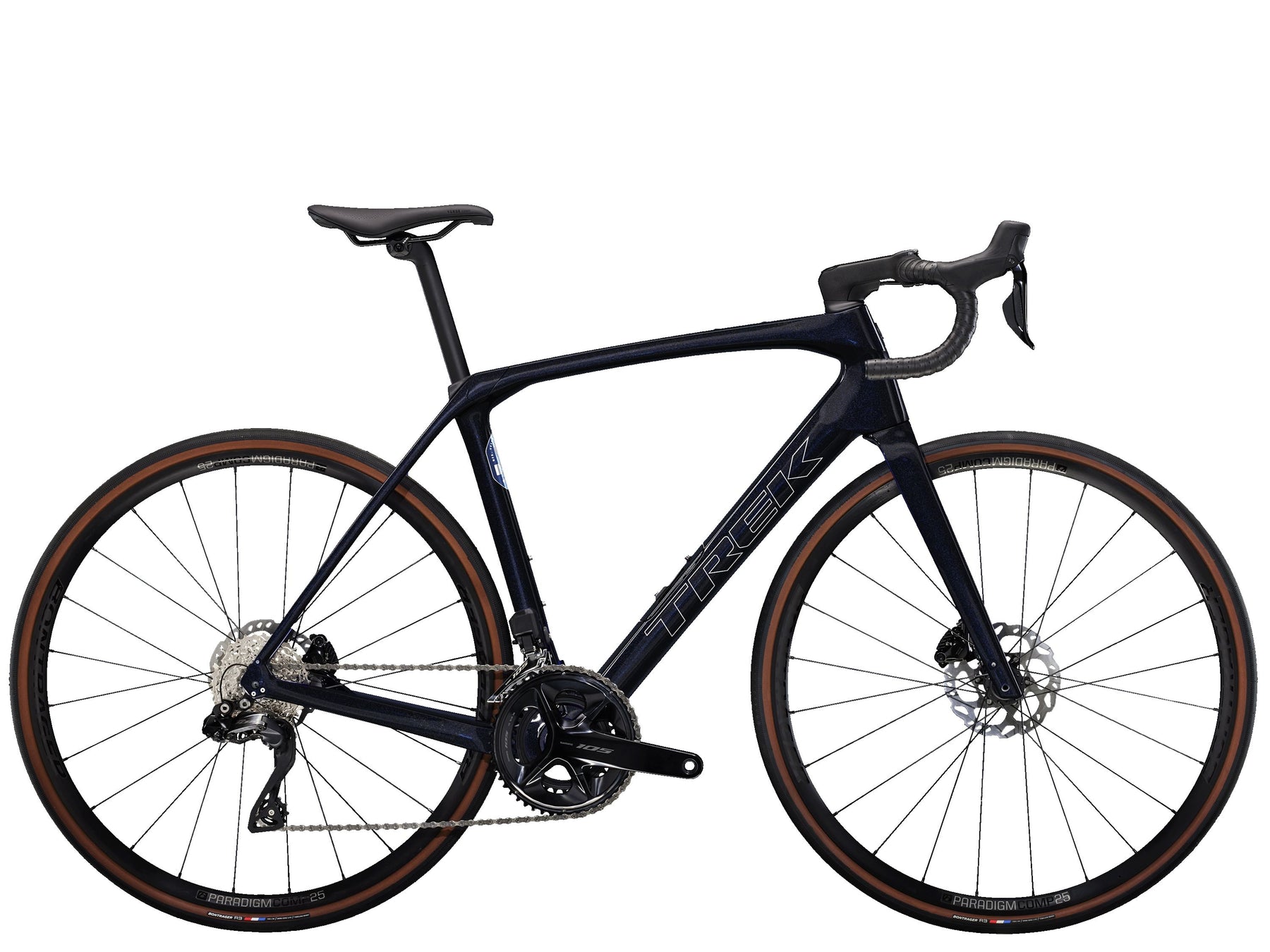

Domane SL 6 is an endurance road bike that's light, aerodynamic, and built to take on long, rough miles in the saddle. With the huge advantage of an electronic Shimano 105 Di2 drivetrain and clearance for 38mm tires, Domane SL 6 is ready to soar over cobbles and tarmac alike. A fully integrated cockpit keeps your setup looking as sleek as it feels and an easy-access storage compartment stows ride essentials. Pair that with road-smoothing rear IsoSpeed, easy-access internal storage, tubeless-ready wheels and you'll be riding longer—and having more fun—than you ever thought possible.
![]()
![]()
![]()
![]()
![]()
![]()
- Domane SL Gen 4's rear IsoSpeed, integrated cables, and aero Kammtail tube shapes come together for a fast, lightweight, and road-smoothing ride
- This bike is super versatile and equally suited to all-day adventures on the open road, club rides, and racing
- Shimano's 105 Di2 wireless electronic drivetrain delivers precision shifts that won't leave a hole in your wallet
- Road-smoothing IsoSpeed and clearance for up to 38mm tires absorbs fatiguing bumps in the road for a smoother, more comfortable ride
- A convenient internal storage compartment gives you a versatile spot to stow tools and gear, while top tube mounts let you cleanly bolt on a bag for all day adventures
The smooth advantage
Newly refined IsoSpeed soaks up fatiguing bumps and saves weight so you can ride stronger longer.
Podium-topping speed
Raced to victory on the infamous cobblestones of Paris-Roubaix, the new carbon Domane is faster than ever thanks to new aerodynamic improvements and an ultra-light design.
Lighter than ever
Light and strong 500 Series OCLV Carbon and a new gram-saving design make this the lightest Domane SL disc ever.
Versatile tire clearance
Comes equipped with fast rolling 32mm tires, but offers clearance for up to 38mm tires so you can confidently ride everything from smooth pavement to light gravel.
Internal storage
Internal downtube storage and top tube bag mounts make it easy to carry everything you need for all-day rides.
Refined integration
Domane is more integrated than ever, with hidden cables and a hidden seatpost clamp.
| Frame | 500 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, fender mounts, flat mount disc, 142x12mm thru axle |
| Fork | Domane SL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle |
| Wheel Front | Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, 100x12mm thru axle |
| Wheel Rear | Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, Shimano 11/12-speed freehub, 142x12 thru axle |
| Tire | Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32mm |
| Tire Part | Bontrager TLR sealant, 6oz |
| Rim Strip | Bontrager TLR |
| Skewer Front | Bontrager Switch thru axle |
| Skewer Rear | Bontrager Switch thru axle, removable lever |
| Shifter | Shimano 105 R7170 Di2, 12 speed // Shimano 105 R7170 Di2, 12 speed |
| Front Derailleur | Shimano 105 R7150 Di2, braze-on, down swing |
| Rear Derailleur | Shimano R7150 Di2, 36T max cog |
| Crank | Shimano 105 R7100, 50/34, 165mm length |
| Bottom Bracket | Praxis, T47 threaded, internal bearing |
| Cassette | Shimano 105 7101, 11-34, 12 speed |
| Brake Rotor | Shimano RT70, centerlock, 160mm |
| Saddle | Verse Short Comp, steel rails, 155mm width |
| Seatpost | KVF aero carbon seatpost, 20mm offset, 280mm length |
| Handlebar | Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 36cm width |
| Stem | Trek RCS Pro, -7 degree, 70mm length |
| Battery | Shimano BT-DN300 |
| Charger | Charging cable included |
Geometry Chart
| B B Drop | 8 |
| Chainstay Length | 42 |
| Eff Top Tube | 50.9 |
| Frame Reach | 36.4 |
| Frame Size Number | 47cm |
| Frame Stack | 52.7 |
| Head Angle | 71.0° |
| Head Tube Length | 11 |
| Offset | 5.3 |
| Saddle Rail Height Max Short | 62 |
| Saddle Rail Height Max Tall | 65 |
| Saddle Rail Height Min Short | 55.5 |
| Saddle Rail Height Min Tall | 58.5 |
| Seat Tube | 42 |
| Seat Tube Angle | 74.6° |
| Standover | 68.6 |
| Trail | 6.1 |
| Wheelbase | 98.6 |
| Wheel Size | 700c |
