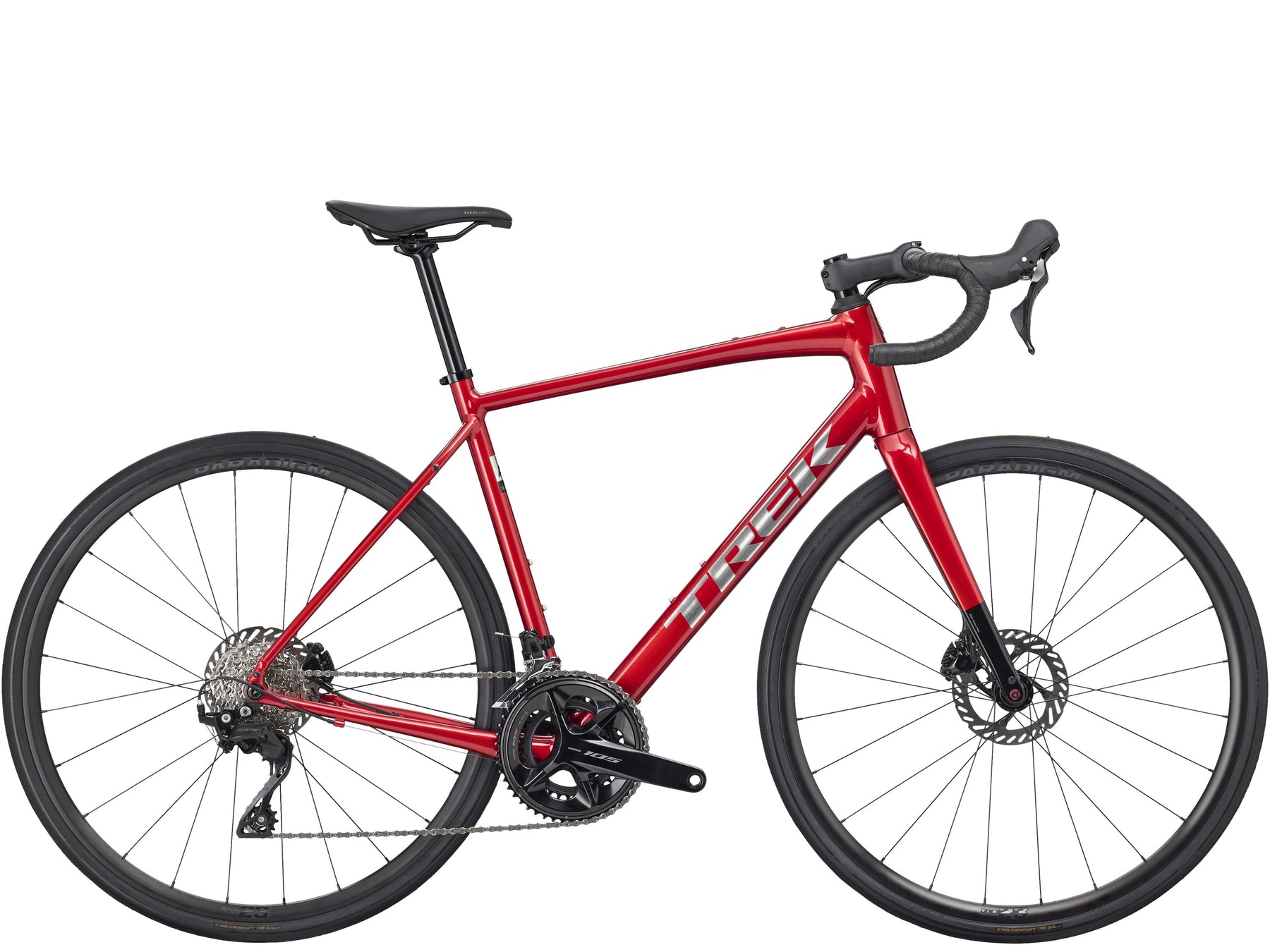

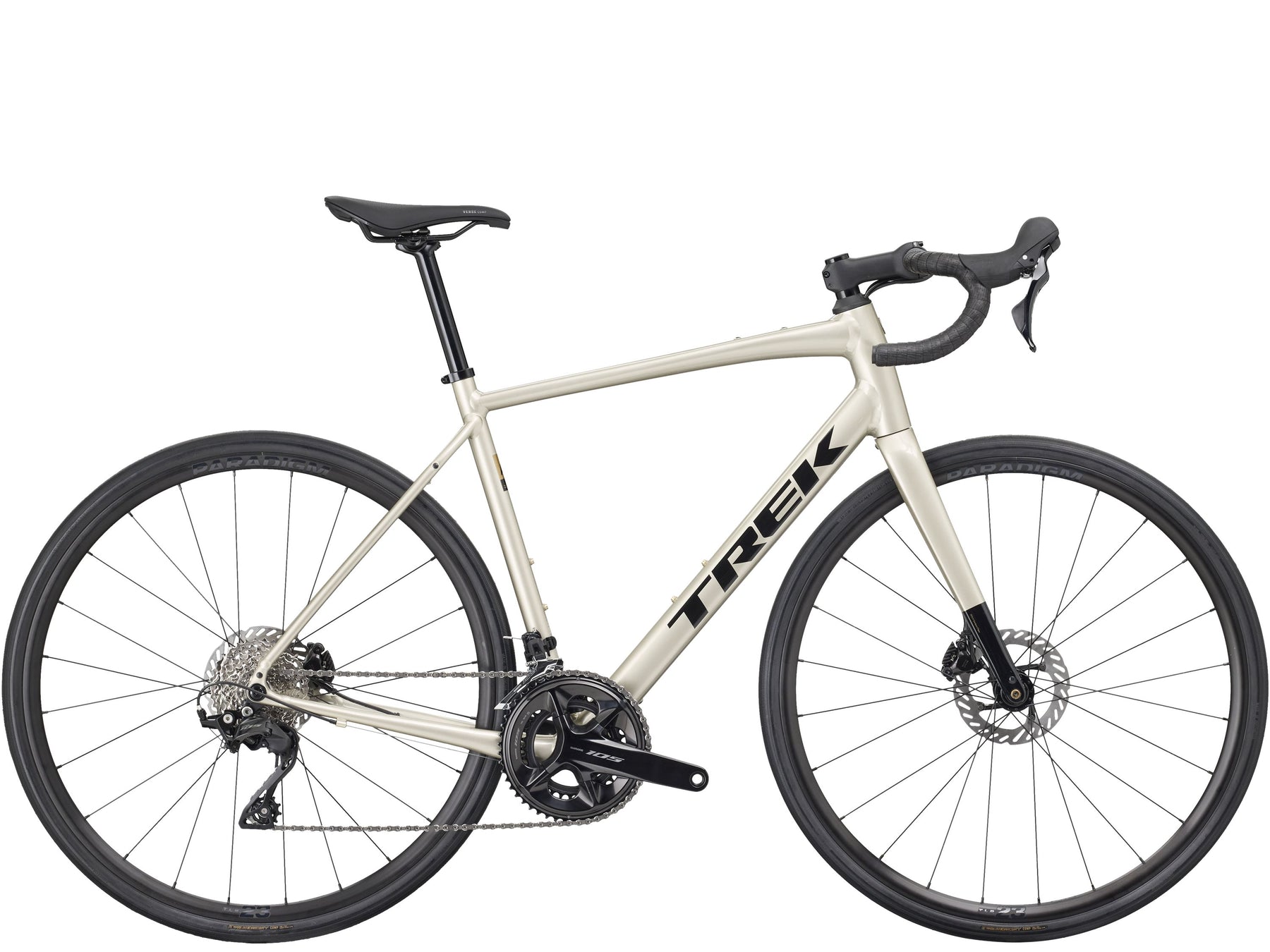

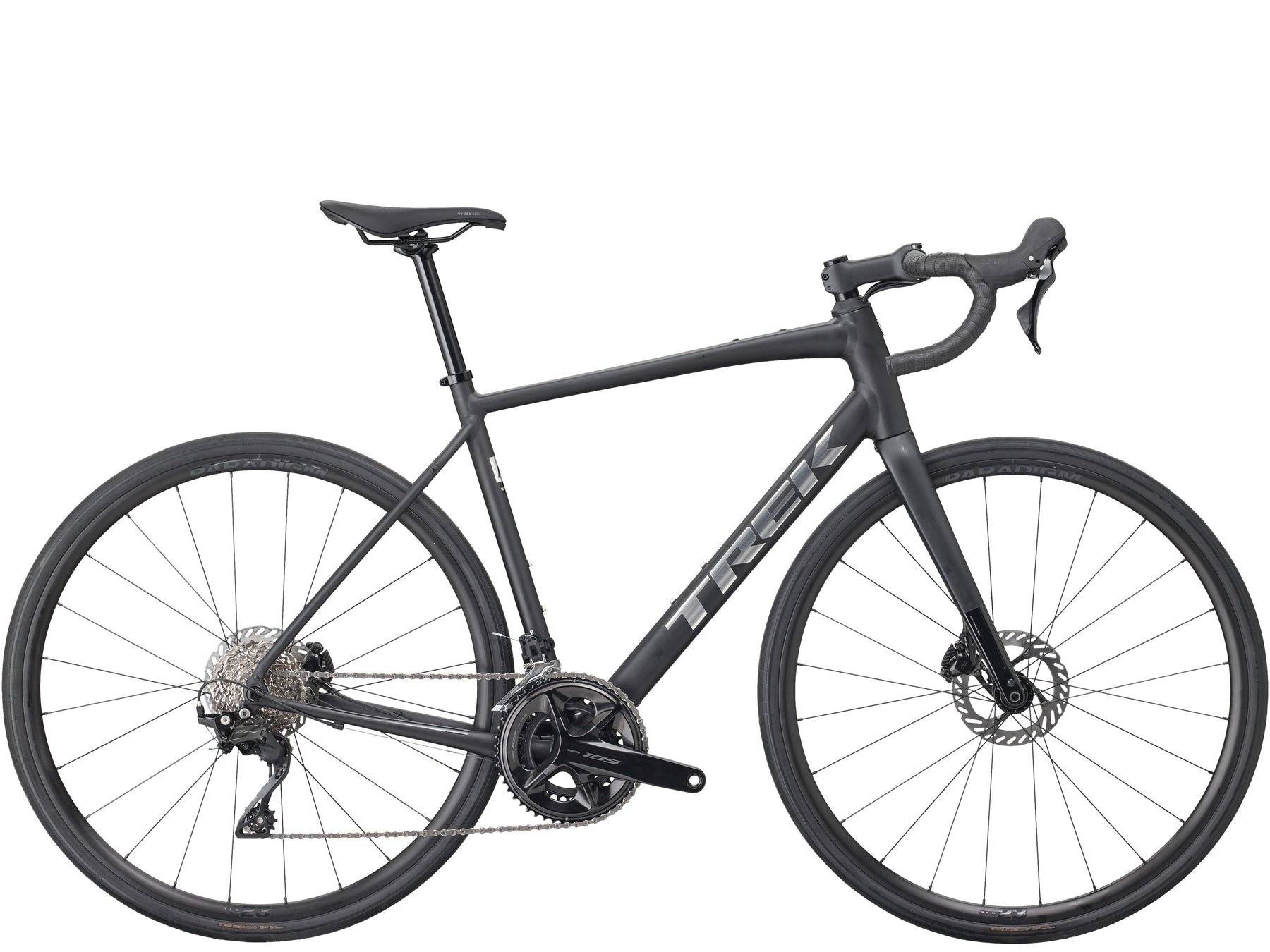

Domane AL 5 is a smooth, capable road bike built for riders who want performance without sacrificing comfort. Its Alpha Aluminum frame pairs with a 12-speed Shimano 105 drivetrain for precise shifting and a wide gear range. All-day geometry keeps you comfortable on longer rides, while bigger tire clearance and top tube mounts add versatility for light gravel, gear, or daily commutes.

Lightweight design

A new full carbon fork and updated frame design helps shave around half a pound from the previous generation Domane AL Disc.

Right for any road

Room for bigger tires let you ride everything from smooth pavement to most gravel roads in comfort.

Long-haul comfort

A more upright road riding position keeps you comfortable, confident, and efficient during long days in the saddle.

Pack it up, pack it in

Mounts for a top tube bag, rack, fenders and water bottles let you carry everything you need for day-long adventures, fast commutes, and anything in between.

Modern ergonomics, premium integration

A modern handlebar with 4cm of flare between the drops and hoods put you in a more comfortable position, and new hidden cable routing offers premium integration typically found on more expensive models.

High-value performance

Domane AL Disc is built in Trek's road race heritage, which means it's a road bike you won't outgrow as your rides get longer and faster.

Frame	100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, flat mount disc, UDH, 142x12mm thru axle
Fork	Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
Tire	Bontrager Kwaremont Comp, Hard-Case Lite, wire bead, 60 tpi, 700x32mm
Hub Front	Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
Hub Rear	Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle
Rim	Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23mm width, Presta valve
Skewer Front	Bontrager Switch chamfered thru axle
Skewer Rear	Bontrager Switch chamfered thru axle, removable lever
Shifter	Shimano 105 R7120, 12 speed // Shimano 105 R7120, 12 speed
Front Derailleur	Shimano 105 R7100, 31.8mm clamp, down swing
Rear Derailleur	Shimano 105 R7100, 36T max cog
Crank	Shimano 105 R7100, 50/34, 170mm length
Bottom Bracket	Shimano RS501 BSA
Cassette	Shimano 105 7101, 11-34, 12 speed
Chain	Shimano SLX M7100, 12 speed
Brake Rotor	Shimano CL700, centerlock, 160mm
Saddle	Verse Short Comp, steel rails, 145mm width
Seatpost	Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length
Handlebar	Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drop width
Stem	Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length

Geometry Chart

B B Drop	7.5
Chainstay Length	42.5
Eff Top Tube	58.6
Frame Reach	38.5
Frame Size Number	61cm
Frame Stack	64.6
Head Angle	72.1°
Head Tube Length	23.5
Offset	4.8
Seat Tube	57.6
Seat Tube Angle	72.7°
Standover	84.2
Trail	6.3
Wheelbase	103.8
Wheel Size	700c
