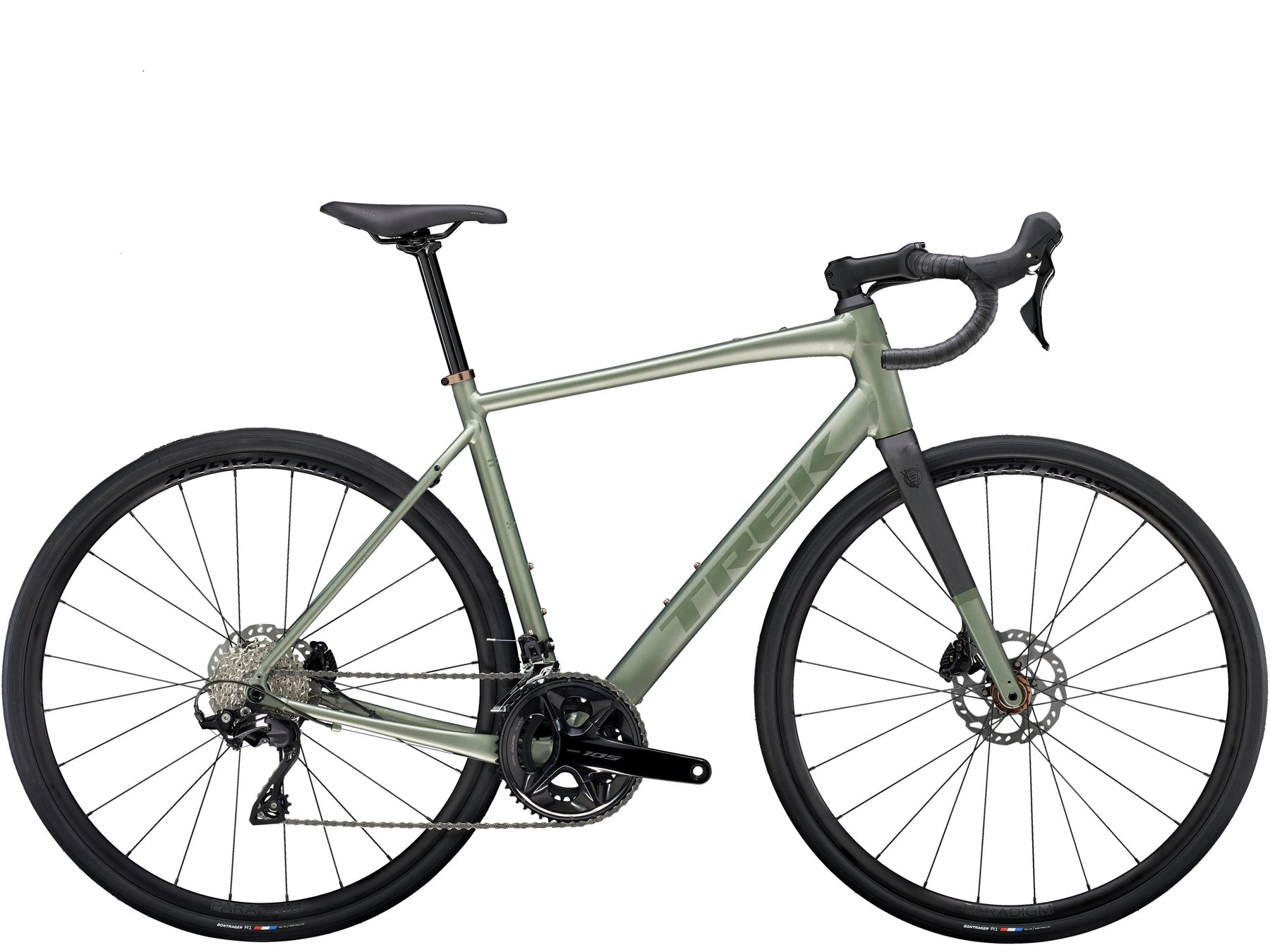

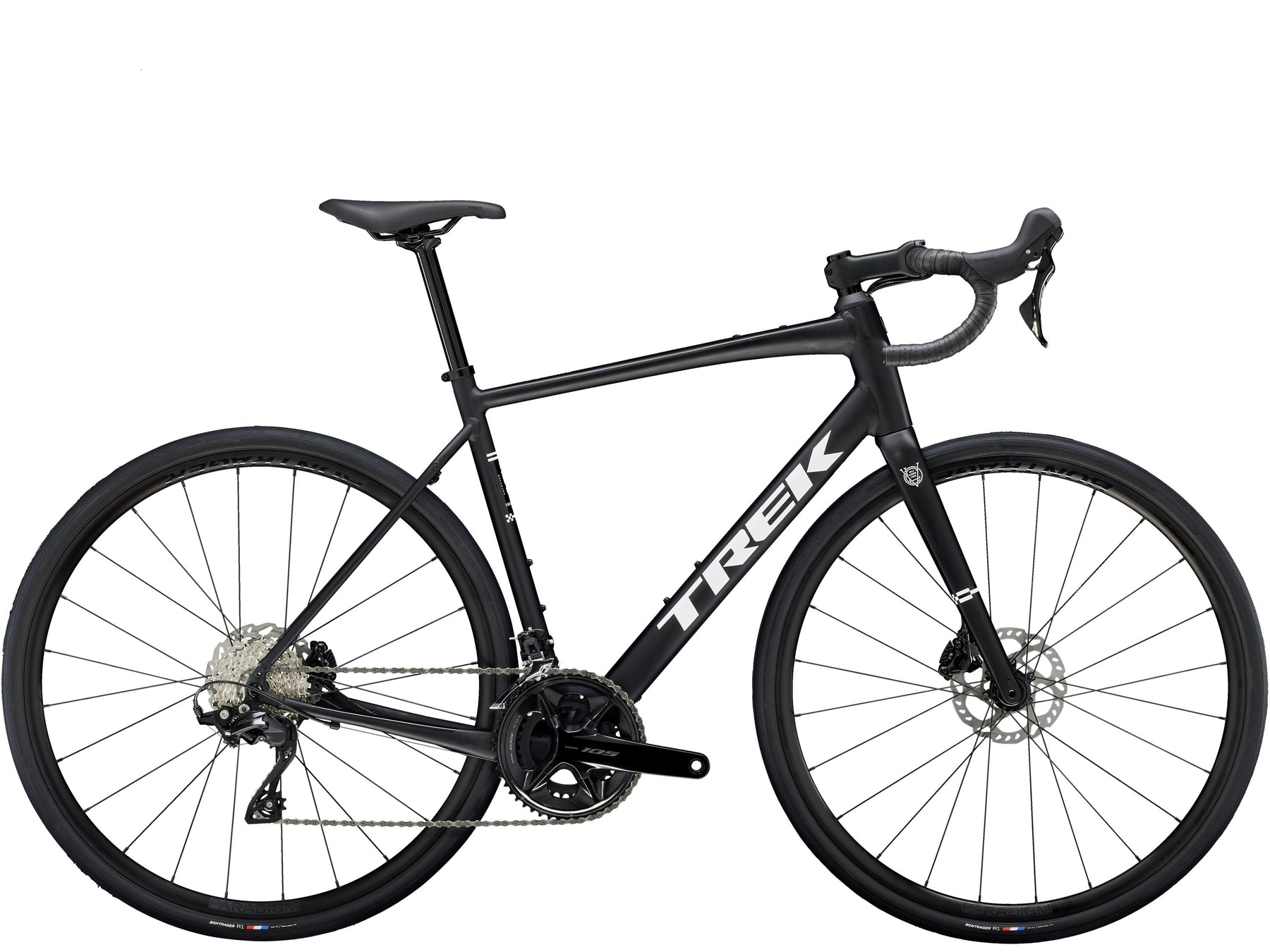

Trek Domane AL 5 Gen 4
In-Store Pickup Only
Fully assembled, tuned, and test-ridden—ready to ride at pickup from our shop.
Product Data
SKU:
5298009
5298009
UPC/EAN:
768682464489
768682464489
Domane AL 5 is a speedy and versatile road bike that's a perfect starting point for anyone looking to get into road riding. With an Alpha Aluminum frame, clearance for larger tires, a 12-speed Shimano 105 drivetrain, top tube mounts, and an all-day road comfort geometry — Domane AL 5 is perfect for casual pedaling, group rides, fast commutes, and even venturing beyond paved paths to most gravel roads.
![]()
![]()
![]()
![]()
![]()
![]()
- A totally versatile and smooth ride that's a perfect choice for your first performance road bike
- Room for bigger tires let you ride everything from smooth pavement to most gravel roads in comfort
- Internal cable routing and an integrated cockpit provides premium looks and a clean aesthetic
- Rack, fender, and top tube mounts make it easy to carry all the gear you'll need
- Powerful disc brakes allow for super fast stopping power in all conditions
Lightweight design
A new full carbon fork and updated frame design helps shave around half a pound from the previous generation Domane AL Disc.
Right for any road
Room for bigger tires let you ride everything from smooth pavement to most gravel roads in comfort.
Long-haul comfort
A more upright road riding position keeps you comfortable, confident, and efficient during long days in the saddle.
Pack it up, pack it in
Mounts for a top tube bag, rack, fenders and water bottles let you carry everything you need for day-long adventures, fast commutes, and anything in between.
Modern ergonomics, premium integration
A modern handlebar with 4cm of flare between the drops and hoods put you in a more comfortable position, and new hidden cable routing offers premium integration typically found on more expensive models.
High-value performance
Domane AL Disc is built in Trek's road race heritage, which means it's a road bike you won't outgrow as your rides get longer and faster.
| Frame | 100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, flat mount disc, UDH, 142x12mm thru axle |
| Fork | Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle |
| Tire | Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32mm |
| Hub Front | Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle |
| Hub Rear | Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle |
| Rim | Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve |
| Skewer Front | Bontrager Switch chamfered thru axle |
| Skewer Rear | Bontrager Switch chamfered thru axle, removable lever |
| Shifter | Shimano 105 R7120, 12 speed |
| Front Derailleur | Shimano 105 R7100, 31.8mm clamp, down swing |
| Rear Derailleur | Shimano 105 R7100, 36T max cog |
| Crank | Shimano 105 R7100, 50/34, 170mm length |
| Bottom Bracket | Shimano RS500, 68mm, threaded external // Shimano RS501 BSA |
| Cassette | Shimano 105 7101, 11-34, 12 speed |
| Chain | Shimano SLX M7100, 12 speed |
| Brake | Shimano 105 hydraulic disc, flat mount |
| Brake Rotor | Shimano RT70, centerlock, 160mm |
| Saddle | Verse Short, steel rails, 145mm width |
| Seatpost | Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 250mm length |
| Handlebar | Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 38cm control width, 42cm drop width |
| Stem | Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length |
Geometry Chart
| B B Drop | 8 |
| Chainstay Length | 42.5 |
| Eff Top Tube | 51.6 |
| Frame Reach | 36.8 |
| Frame Size Number | 49cm |
| Frame Stack | 54 |
| Head Angle | 70.8° |
| Head Tube Length | 12.3 |
| Offset | 5.3 |
| Seat Tube | 44 |
| Seat Tube Angle | 74.6° |
| Standover | 71.7 |
| Trail | 6.6 |
| Wheelbase | 100.1 |
| Wheel Size | 700c |
