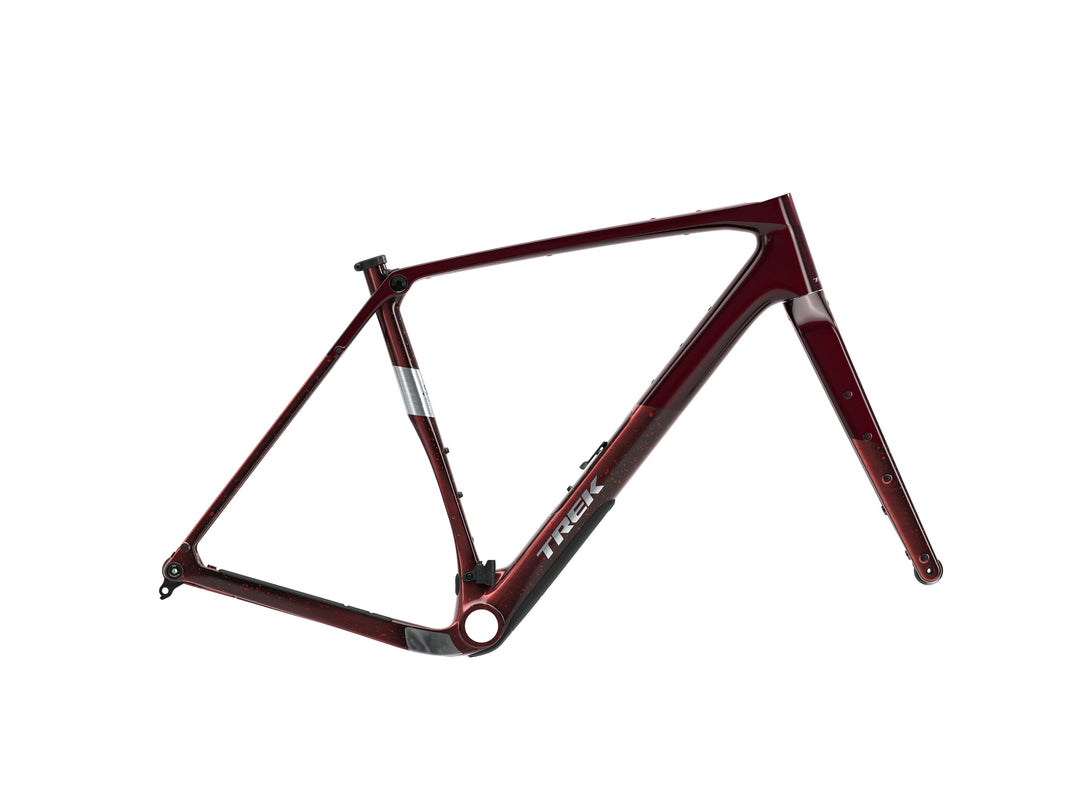

Checkpoint SL Frameset is a lightweight carbon gravel frame and fork built to go beyond the beaten path. IsoSpeed tech smooths out rough terrain, while Gravel Endurance geometry keeps you comfortable mile after mile. With clearance for up to 50mm tires (as measured), there’s room for big rubber to take on rowdy roads. Build it up as the ultimate adventure rig or spec it for racing, either way, it's ready to explore.

IsoSpeed comfort tech

IsoSpeed comfort tech smooths potholes and fatiguing bumps in the road so you can ride stronger longer.

New Gravel Endurance geometry

A new confident and comfortable Gravel Endurance geometry puts you in a more relaxed upright riding position so you can stay comfortable on even your most epic adventures.

Big ’ol tire clearance

Roll over the rough stuff with room to fit gravel tires up to 50mm wide (as measured).

Bigger in-frame storage

More internal frame storage and a bigger storage door lets you fit all your flat tools inside your bike so you're always ready for whatever the gravel road throws at you.

Mounts galore

The new Checkpoint SL is equipped to carry everything you need with mounts on the frame and fork for front and rear racks, fenders, and Adventure Top Tube, Frame, and Triangle Bags. Plus, the new frame was optimized to fit extra hydration in addition to all your bags.

Suspension fork and dropper post compatible

Checkpoint SL is now compatible with dropper posts and suspension forks with up to 40mm of travel so you can send it on chunkier gravel and steeper descents.

Frame	500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden fender mounts, rack mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, flat mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12mm chamfered thru axle
Fork	Trek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle
Skewer Front	Bontrager Switch chamfered thru axle
Skewer Rear	Bontrager Switch chamfered thru axle, removable lever

Geometry Chart

B B Drop	7.6
Chainstay Length	43
Eff Seat Tube Angle	72.7°
Eff Top Tube	53.6
Frame Reach	38
Frame Size Letter	XS
Frame Stack	53.5
Head Angle	71.0°
Head Tube Length	8.6
Offset	4.9
Seat Tube	44.5
Seat Tube Angle	74.0°
Standover	74.6
Trail	7.1
Wheelbase	101.3
Wheel Size	700c

Color

DARK RED/CARBON RED SMOKE SPLATTER
