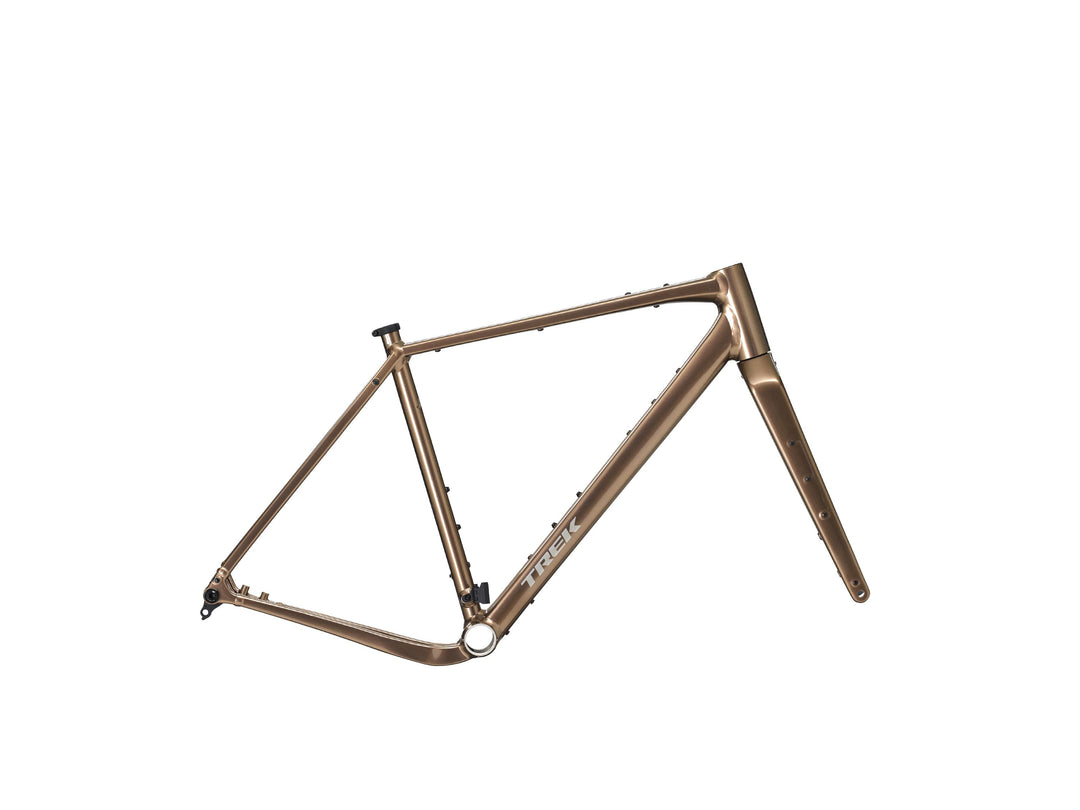

Checkpoint ALR F/S ML Bronze Age

Trek Checkpoint ALR Frameset

5337940

Regular price$1,049.99
/
Shipping calculated at checkout.
Size
  • In stock, ready to ship
  • Backordered, shipping soon

Black Friday

Save 20% on Accessories w/ Purchase of a Bike

Discount applied automatically at checkout

Free Shipping

Free shipping on bikes $1,000+

Overview

The Perfect Starting Point for Your Dream Aluminium Gravel Bike

The Trek Checkpoint ALR Frameset is the perfect starting point for a dream aluminium gravel bike. The 300 Series Alpha Aluminum frame has Gravel Endurance geometry to keep you comfortable over long miles, and a full carbon fork keeps the build lightweight. Build it up as a bikepacking rig, or spec it as an ultimate alloy gravel race bike. This listing is the ML frame in Bronze Age.

This is a frameset, not a complete bike. The frame and the Trek Checkpoint full carbon fork are included, along with Bontrager Switch chamfered front and rear thru-axles (the rear with a removable lever). The bottom bracket, seatpost, wheels, drivetrain, brakes and cockpit are sold separately.

Fitment summary: the frame uses a T47 bottom bracket shell, a UDH (Universal Derailleur Hanger), flat mount disc brakes and a 142x12mm rear thru-axle. The fork is 12x100mm thru-axle, flat mount disc, with a tapered steerer. Wheel size is 700c.

Mounts Galore

The Checkpoint ALR is equipped to carry what you need, with mounts on the frame and fork for front and rear racks, fenders, and Adventure Top Tube, Frame and Triangle Bags. The frame is also optimised to fit extra hydration in addition to all your bags. Internal cable routing and a 3S chain keeper keep the build tidy.

Gravel Endurance Geometry

Gravel Endurance geometry has a higher stack and a shorter reach, for improved comfort and control on long days in the saddle. It places you in a more upright, relaxed position than a race geometry would, which helps on all-day rides and on rough surfaces.

ML geometry: 580mm effective top tube, 397mm reach, 611mm stack, 72.2-degree head angle, 72.8-degree seat angle, 435mm chainstay, 1048mm wheelbase, 76mm BB drop, 809mm standover, 67mm trail, 162mm head tube, 49mm fork offset, 530mm seat tube.

Big Tire Clearance, Suspension Fork and Dropper Post Compatible

The frame is designed with 50mm (or 29 x 2.0 inch) tire clearance, as measured, for more grip and comfort on challenging terrain. It is also compatible with a suspension fork and a dropper post, for riders tackling technical descents or looking for more aggressive off-road performance. A suspension fork is available on all sizes except XS.

Suspension fork and dropper post compatible

Compatible with a suspension fork* and dropper post for riders tackling technical descents or seeking more aggressive off-road performance.
*Available on all sizes except XS frames

Low-Emission Aluminium

Trek states that starting in 2024 it began removing high-emission aluminium from its manufacturing and replacing it with low-emission aluminium made with renewable energy. By October 2025, nearly every alloy bike it makes, this one included, had made the switch, which Trek says has driven a major drop in its footprint.

FAQs

What is included with the Checkpoint ALR Frameset?

The frameset includes the 300 Series Alpha Aluminum frame, the Trek Checkpoint full carbon fork, and Bontrager Switch chamfered front and rear thru-axles. The bottom bracket, seatpost, wheels, drivetrain, brakes and cockpit are sold separately.

What tire clearance does it have?

It is designed with 50mm (or 29 x 2.0 inch) tire clearance, as measured, for grip and comfort on challenging terrain.

Can I use a suspension fork or dropper post?

Yes. The frame is compatible with a suspension fork and a dropper post. A suspension fork is available on all sizes except XS.

What can I mount on it?

The frame and fork have mounts for front and rear racks, fenders, and Adventure Top Tube, Frame and Triangle Bags, and the frame is optimised for extra hydration.

What bottom bracket and rear end does it use?

It has a T47 bottom bracket shell, a UDH derailleur hanger, flat mount disc brakes and a 142x12mm thru-axle rear end.

Specs:

Frame 300 Series Alpha Aluminum, Internal cable routing, 3S chain keeper, T47, UDH, rack and fender mounts, integrated frame bag mounts, flat mount disc, 142x12mm chamfered thru axle
Fork Trek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle
Skewer Front Bontrager Switch chamfered thru axle
Skewer Rear Bontrager Switch chamfered thru axle, removable lever


Geometry Chart

B B Drop 7.6
Chainstay Length 43.5
Eff Top Tube 58
Frame Reach 39.7
Frame Size Letter ML
Frame Stack 61.1
Head Angle 72.2°
Head Tube Length 16.2
Offset 4.9
Seat Tube 53
Seat Tube Angle 72.8°
Standover 80.9
Trail 6.7
Wheelbase 104.8
Wheel Size 700c
Color BRONZE AGE

Shipping & Pickup

Shipping and pickup options are shown for the selected item. Final availability, cost, and timing are confirmed at checkout.

Product Data
SKU:
5337940
UPC/EAN:
197216233893
