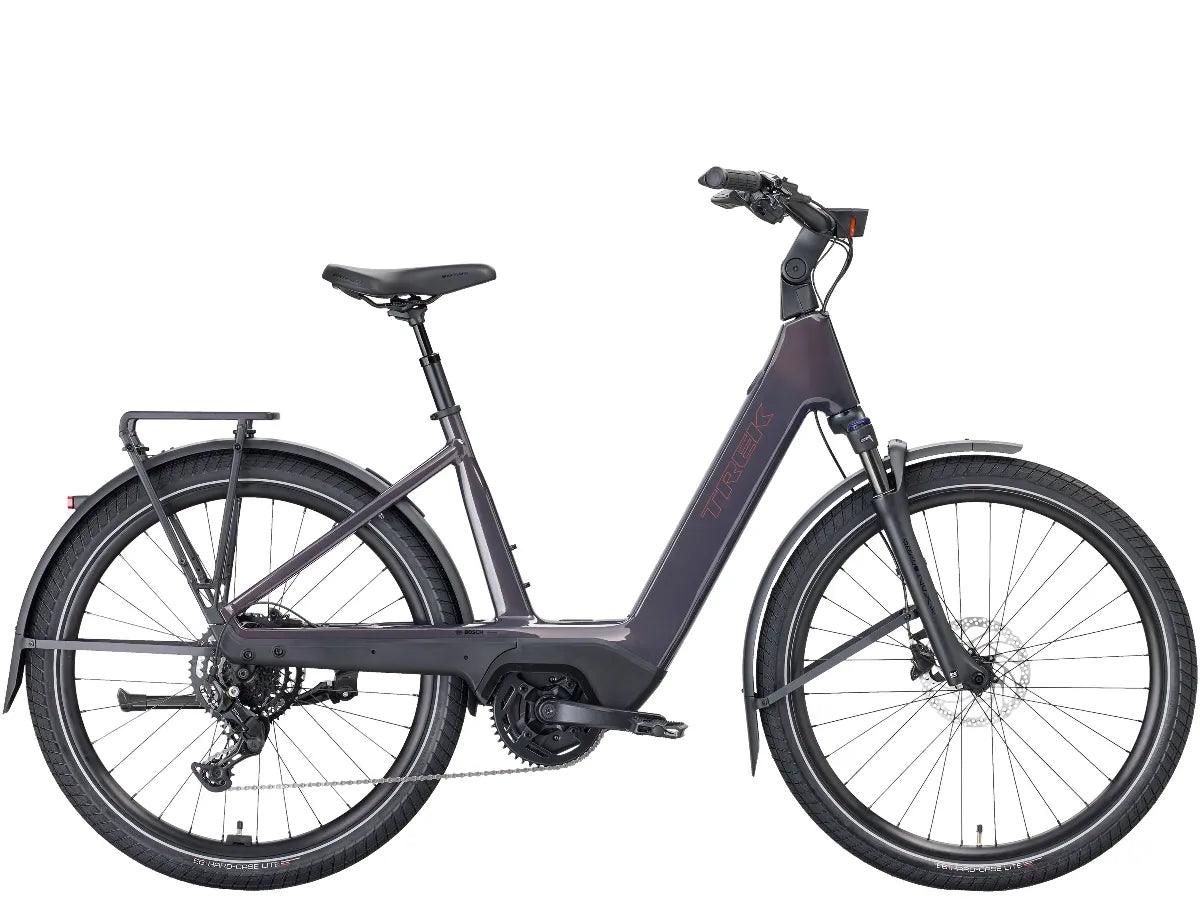

Charter+ 4S LS US L Covellite Blue

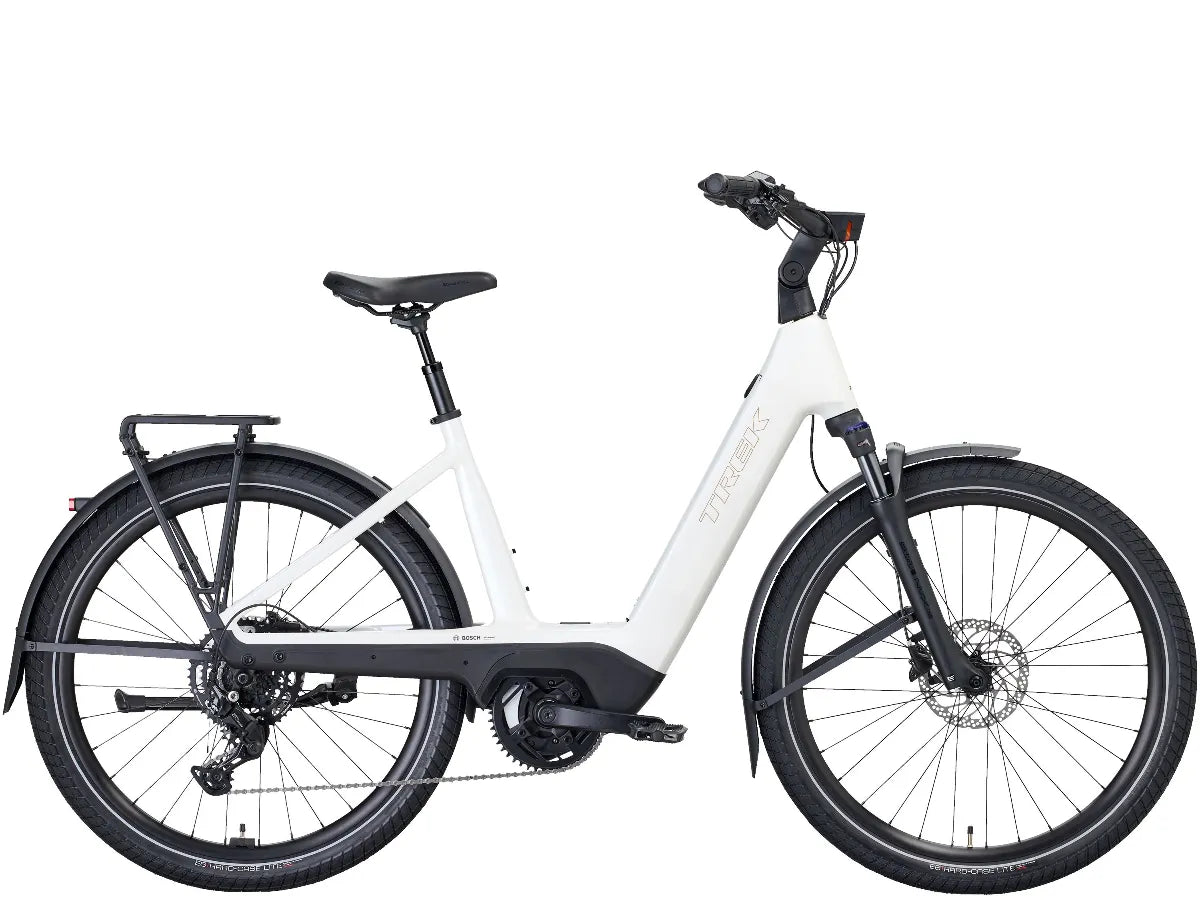

Charter+ 4S LS US M Crystal White

Trek Charter+ 4S Lowstep

5343990

Regular price$3,999.99
/
Shipping calculated at checkout.
Color COVELLITE BLUE
Size
  • In stock, ready to ship
  • Backordered, shipping soon

Overview

A Fast, Luxury City E-Bike Built for Comfort, Ease, and Style

The Trek Charter+ 4S Lowstep is a fast, luxury city e-bike built for comfort, ease and style. The lowstep frame makes it easy to hop on and off, while front suspension and an adjustable stem keep the ride smooth and comfortable. A 28 mph top speed and a range of up to 45 miles make quick work of commutes, and the top-eject battery makes charging simple. With bright lights, a high beam and Bosch eBike Flow app security, every ride feels first class. This listing is the Large frame.

Class 3 e-bike notice - read before purchase: This e-bike provides motor assistance up to 28 mph, which makes it a Class 3 e-bike. Class 3 e-bikes are restricted in many places. In California, for example, riders must be at least 16 years old and wear a helmet, and Class 3 e-bikes may not be allowed on some bike paths and trails unless local rules permit it. Rules differ by state, city and path, so check the laws where you ride before purchase and follow all local requirements.

Stay Connected with Bosch eBike Flow

The Bosch eBike Flow app gives more control, with digital locking, theft alerts, customisable ride modes and navigation, all from your phone. It is a useful extra layer of security for a bike that you may leave locked in the city.

Bosch Smart System Motor, Battery, and Range

The Charter+ 4S has a Bosch Performance Line Sport motor (Smart System) rated at 90Nm, with a 28 mph top assist speed. A high-capacity Bosch 540Wh battery gives up to 45 miles of range, according to the supplied copy. Real range depends on the rider, the load, the terrain, the temperature and the assist mode, and Bosch has a range calculator you can use to estimate it. The battery loads from the top, and a colour-matched, lockable magnetic cover keeps it secure, sleek and simple to use. A standard Bosch 2A charger is included.

Comfort Components

A SR Suntour SF25 coil-spring fork with a preload adjuster and 63mm of travel, plus a suspension seatpost, take the sting out of rough pavement. A fully adjustable stem lets you fine-tune your position, from a relaxed fit to a more active riding position. The Bontrager Boulevard saddle, Trek Ergonomic Pro lock-on grips and a 690mm wide handlebar complete the comfortable cockpit.

Large geometry: 652mm effective top tube, 446mm reach, 673mm stack, 69-degree head angle, 73-degree seat angle, 468mm chainstay, 1188mm wheelbase, 297mm BB height, 70mm BB drop, 556mm standover, 93mm trail, 170mm head tube, 550mm seat tube, 45mm fork offset.

Drivetrain, Brakes, and Wheels

The drivetrain is a 9-speed Shimano setup with a Shimano U4000 shifter, CUES U4000 rear derailleur and an 11-46 LINKGLIDE LG300 cassette. Shimano MT200 hydraulic disc brakes with 180mm centerlock RT30 rotors give confident stopping power for an e-bike. Bontrager E6 Hard-Case Lite 27.5 x 2.4 inch tires with a reflective stripe are fitted to double-wall alloy rims.

MIK HD Rack, Fenders, Lights, and Kickstand

The integrated MIK HD rear rack supports up to 60 lbs, which makes it compatible with child seats, side panniers, baskets and pet carriers. Trek Charter alloy fenders and an adjustable-length rear-mount kickstand are included.

For visibility, daytime running lights are powered by the main battery. The front light turns with your steering, and a high beam brightens the road after dark, with 400 lumens on low and 800 lumens on high. Reflective tires add to your visibility.

Safety note: E-bikes are heavier and faster than regular bikes. Wear a helmet, check the brakes and tires before each ride, and follow the manufacturer's instructions for the battery and charger. Have the bike assembled and serviced by a qualified mechanic.

Versatile visibility

Stay seen with daytime running lights powered by the main battery. The front light turns with your steering, and high beam brightens the road after dark.


FAQs

Is the Charter+ 4S a Class 3 e-bike?

Yes. It has motor assistance up to 28 mph, which makes it a Class 3 e-bike. Class 3 rules vary by state and local area, so check the laws where you ride.

What motor and battery does it have?

It has a Bosch Performance Line Sport motor (Smart System, 90Nm) and a Bosch 540Wh top-eject battery, with a range of up to 45 miles depending on conditions.

What does the Bosch eBike Flow app do?

It gives digital locking, theft alerts, customisable ride modes and navigation from your phone.

How much can the rear rack carry?

The integrated MIK HD rear rack supports up to 60 lbs, for child seats, panniers, baskets and pet carriers.

What lights does it have?

It has daytime running lights powered by the main battery, a front light that turns with the steering, and a high beam, at 400 lumens on low and 800 lumens on high.

Specs:

Frame Premium Alpha Platinum Aluminum frame, top-load Bosch CompactTube battery, integrated cockpit routing, integrated rack and fenders, adjustable bolt on dropout
Fork SR Suntour SF25-NVX32, coil spring, preload adjuster, 5mm ThruSkew, 63mm travel
Tire Bontrager E6 Hard-Case Lite, reflective, wire bead, 60tpi, 27.5x2.4''
Hub Front Formula CL-25, alloy, centerlock, 5x100mm
Hub Rear Formula FCL-542S, alloy, centerlock, 11 speed freehub, 142x12mm thru axle
Rim Alloy double wall, 32H
Spokes 14g stainless steel, black
Skewer Front Trek Thru-Skew
Skewer Rear Bontrager Switch thru axle, removable lever
Shifter Shimano U4000, 9 speed
Rear Derailleur Shimano CUES U4000
Crank ProWheel alloy, 170mm length
Cassette Shimano LINKGLIDE LG300, 11-46, 9 speed
Chain Shimano LG500, 9/10/11 speed
Brake Shimano MT200 hydraulic disc
Brake Rotor Shimano RT30, centerlock, 180mm
Pedal Bontrager City pedals
Saddle Bontrager Boulevard
Seatpost Alloy, suspension, 31.6mm, 300mm length
Seat Collar Bolt-on, 36.4mm
Handlebar Bontrager alloy, 31.8mm, 690mm width
Stem Bontrager alloy, 31.8mm clamp, adjustable rise, Blendr compatible, 80mm length
Grips Trek Ergonomic Pro, lock-on
Fender Trek Charter alloy fender
Light Trek LED, taillight // Trek LED, 400 lumen low/800 lumen high, headlight
Kickstand Adjustable length rear mount alloy kickstand
Battery Bosch PowerTube 540Wh
Motor Bosch Performance Line Sport, Smart System, 90Nm, 700W, 28 mph
Charger Bosch standard 2A, 110V, smart system


Geometry Chart

B B Drop 7
B B Height 29.7
Chainstay Length 46.8
Eff Seat Tube Angle 73.0°
Eff Top Tube 65.2
Frame Reach 44.6
Frame Size Letter L
Frame Stack 67.3
Head Angle 69.0°
Head Tube Length 17
Offset 4.5
Seat Tube 55
Seat Tube Angle 73.0°
Standover 55.6
Trail 9.3
Wheelbase 118.8
Wheel Size 700c

Shipping & Pickup

Shipping and pickup options are shown for the selected item. Final availability, cost, and timing are confirmed at checkout.

Product Data
SKU:
5343990
UPC/EAN:
197216327899
