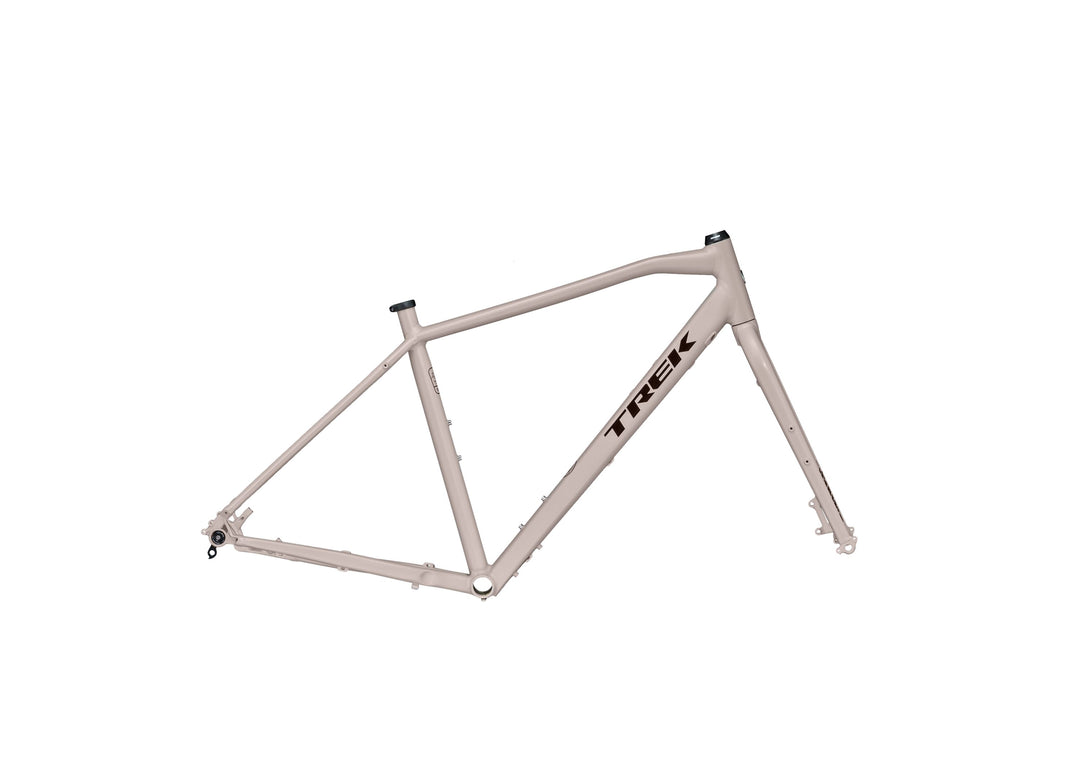

920 is a go-anywhere adventure touring bike. This frameset is designed to tackle any rugged terrain you'll encounter on a bikepacking expedition, and equipped with endless mounts so you can set it up to your exact specifications. Includes headset, headset spacers, cable guides and stops, seat post collar, and front and rear thru-axle skewers.

• If you want to ride around the world, this is the right bike for you
• Extra water bottle mounts, including one on the underside of the down tube
• The 920 front and rear racks (sold separately) can handle more gear than you'll ever want to carry (55 lbs. in the rear, 26 lbs. in the front)
• Balanced geometry is ultra-stable even when fully loaded

A better way to produce aluminum

Starting in 2024, we began removing high-emission aluminum from our manufacturing and replacing it with low-emission aluminum made with renewable energy. By October 2025, nearly every alloy bike we make - this one included - had made the switch, driving a major drop in our footprint.

Frame	100 Series Alpha aluminum, rack & fender mounts, 142x12mm thru axle, 73mm threaded bottom bracket
Fork	920 alloy disc adventure, 15mm thru axle
Skewer Front	Bontrager thru axle
Headset	FSA Integrated, sealed cartridge bearing, 1-1/8''

Geometry Chart

B B Drop	8.5
B B Height	28.3
Chainstay Length	46.5
Eff Top Tube	54
Frame Reach	38.5
Frame Size Number	49 cm
Frame Stack	55.6
Head Angle	70.0°
Head Tube Length	9.5
Offset	5.5
Seat Tube	44
Seat Tube Angle	74.5°
Standover	72.2
Trail	7.5
Wheelbase	107.2
Wheel Size	29"

Color

MATTE SANDSTORM
