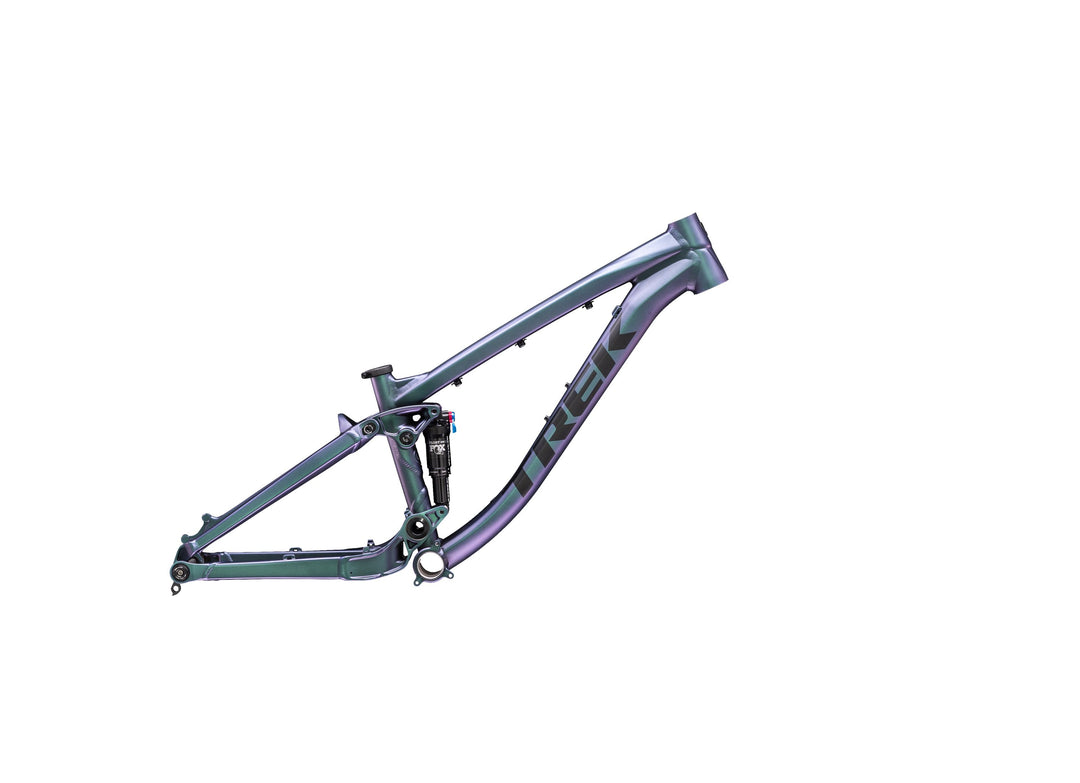

Ticket S is the premier dirt jump mountain bike frame built for big tricks, big jumps, and a whole lot of style. Lightweight Alpha Platinum Aluminum, and 100mm of rear travel with a FOX shock make it both durable and agile. It’s the frame of choice for the Trek C3 Project riders who need to get the most out of their dirt jump bike.

• This bike has won every major slopestyle comp, several times over
• Mino Link lets you make small adjustments to your geometry quickly and easily, even mid-ride
• A tapered headtube, press fit bottom bracket, and 142x12mm rear dropouts are ready for your dream build

Active Braking Pivot

Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.

Frame	Alpha Platinum Aluminum, tapered head tube, alloy rocker link, press fit BB, ISCG 05, Mino Link, 100mm travel
Shock	Fox Performance Float SV, 3-position damper, 6.5x1.5''
Seat Collar	Bolt-on, 36.4mm
Headset	FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom

Geometry Chart

B B Drop	0.6
B B Height	33.9
Chainstay Length	39.8
Eff Top Tube	56.3
Frame Reach	43.3
Frame Size Letter	L
Frame Stack	54.7
Head Angle	69.3°
Head Tube Length	12.3
Offset	4
Position	High
Seat Tube	33.1
Seat Tube Angle	75.8°
Standover	38.3
Trail	8.8
Wheelbase	108.3
Wheel Size	26"
