Product Data
SKU:
590974
590974
UPC/EAN:
601842180495
601842180495

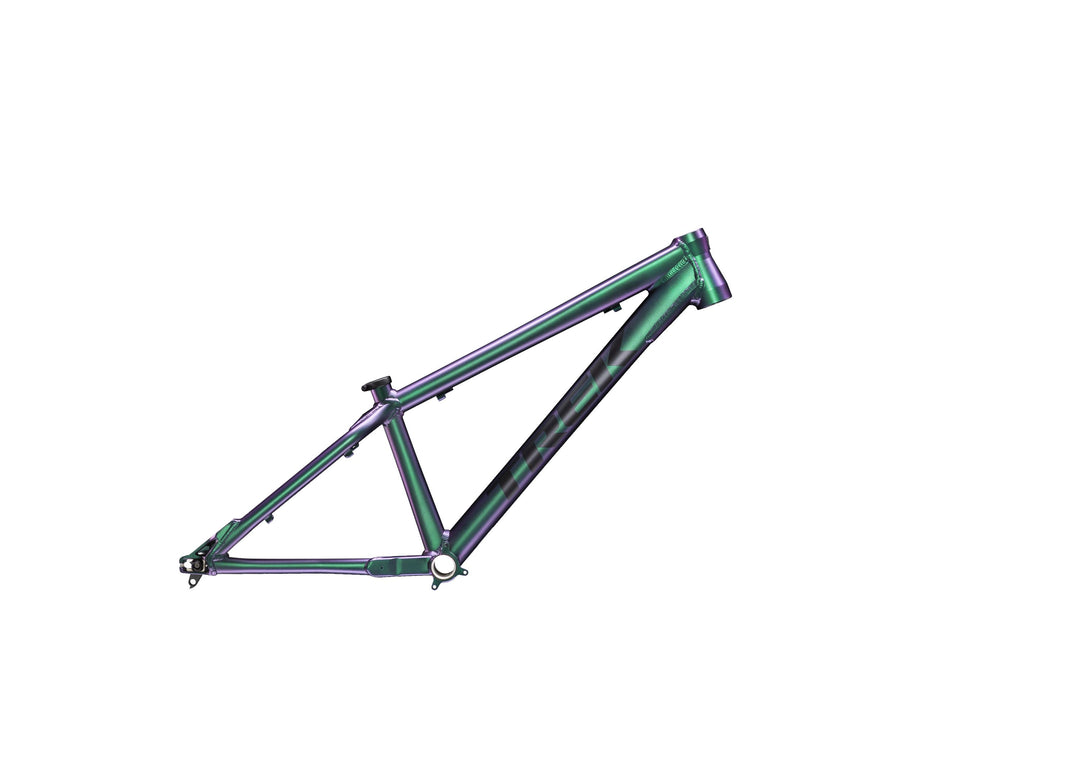

Ticket DJ is a lightweight, durable 26” dirt jumper frame with a compact rear end and roomy top tube for major style, the best handling, and the biggest tricks. Horizontal sliding dropouts let you choose between a singlespeed or geared setup for a personalized ride.
- Trek C3 Project riders have helped to dial in the geometry and features of this bike over years of collaboration, and the result is a highly refined ride that has helped to define the sport
- Alpha Platinum Aluminum is light without compromising durability
- Sliding 142x12mm rear dropouts, a tapered headtube, and threaded bottom bracket are ready for your dream build
| Frame | Alpha Platinum Aluminum, tapered head tube, 73mm threaded BB, ISCG 05, horizontal sliding dropout for geared or singlespeed, 142x12mm thru axle |
| Seat Collar | Bolt-on, 36.4mm |
| Headset | FSA Orbit, semi-cartridge bearing, 1-1/8'' top, 1.5'' bottom |
Geometry Chart
| B B Drop | 1 |
| B B Height | 32 |
| Chainstay Length | 40 |
| Eff Top Tube | 60.1 |
| Frame Reach | 41.4 |
| Frame Size Letter | L |
| Frame Stack | 54.3 |
| Head Angle | 70.0° |
| Head Tube Length | 12 |
| Offset | 4 |
| Seat Tube | 33 |
| Seat Tube Angle | 71.0° |
| Standover | 69.1 |
| Trail | 7.8 |
| Wheelbase | 105 |
| Wheel Size | 26" |
