Product Data
SKU:
FM2690
FM2690
UPC/EAN:
708752431379
708752431379

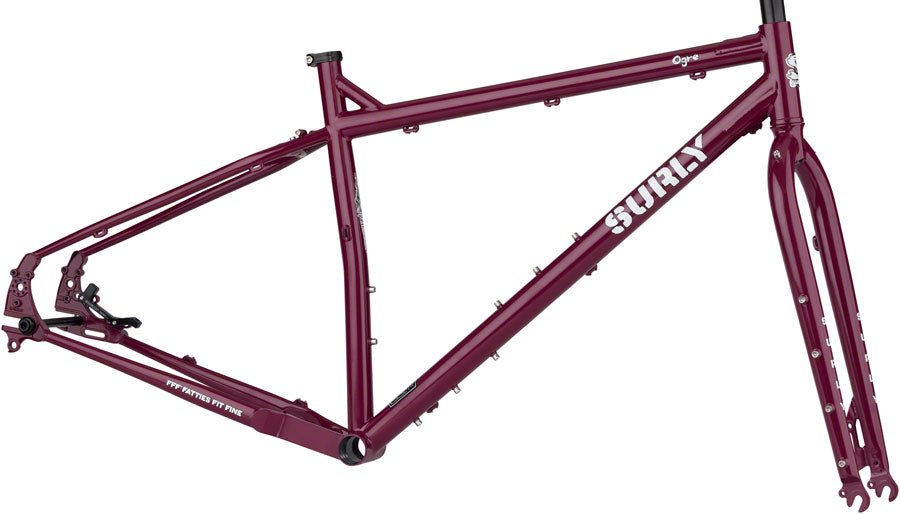

The Ogre can get you to your job during the week then way out of town on the weekend. It’s not sluggish on pavement or gravel and can also hold its own on singletrack. Ogre brings several sensible features to the 29er platform including horizontal slotted dropouts with Gnot-Boost spacing a tweaked non-suspension corrected geometry and a beefy tire clearance.100% Surly Chromoly steel double-butted main triangle TIG-welded Horizontal slotted with derailleur hanger Gnot-Boost spacing allows the use of 135mm QR hub 142 x 12mm thru-axle or 148 x 12mm Boost hubs. Features Rohloff torque arm slot and threaded eyelets for fenders racks and Surly trailer mounts Full-length Surly Trip Guide housing line guides for derailleurs and brakes; two sets of bottle cage mounts; upper seatstay threaded barrels mid- and low-blade fully threaded through-blade fork eyelets; threaded holes for racks fenders and trailer mounting nuts; Rohloff OEM2 axle plate mounting slot Disc brakes only. Disc mounts are 51mm IS. Note: rear disc brake is limited to 160mm maximum rotor diameter and requires the use of Surly caliper adaptor (included with frames and bikes) Frame is E.D. coated for increased life expectancy Tire clearance for 29 x 2.5" or 27.5 x 3"
| Rear Axle | QR x 145mm |
| TT (Effective) | 575, 595, 615, 640 |
| Brake Type | Disc |
| Fork Type | Rigid |
| Frame Material | Steel |
| Frame Type | Rigid |
| Front Axle | QR x 100mm |
| Color | Fermented Plum |
| Mfg Size | Large, Medium, Small, X-Large |
| Platform | Ogre |
| Wheel Size | 29" |
| Defined Color | Purple |
