Product Data
SKU:
B-SF4872
B-SF4872
UPC/EAN:
0849430058089
0849430058089

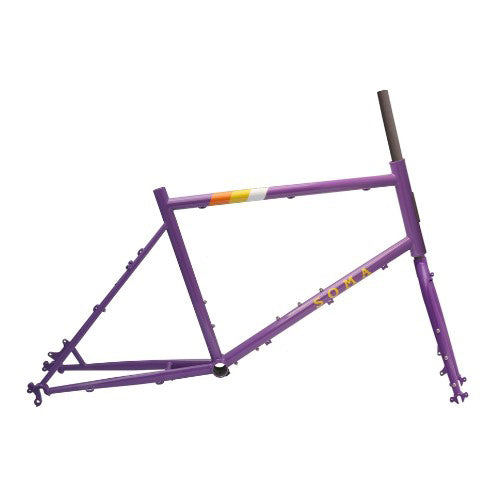

- 4130 Double-butted chromoly frame and fork
- Rear rack & fender mounts, cargo cage/mini rack bosses on fork with one set of thru-bosses
- Three sets of water bottle bosses
- Cafe lock mount
- Kickstand plate
- International Standard disc brake tabs (140/160mm rotors suggested)
- Wheel size: 20" (ISO 406) BMX size
- Tire clearance for 20 x 2.3" (20 x 2.0" w/fenders)
- Hub spacing: 135mm, rear, 100mm fork
- Fits 1-1/8" headset (EC34/28.6|EC34/30 headsets)
- Seatpost size: 27.2mm x 350/400mm
- Sizes: Small, Med and Large
- The Small can fit 4'11" to 5'7"
- The Medium can fit 5' 3" to 5' 11"
- The Large can fit 5'6" to 6'3"
- Color Purple and Matte Black
| Model | Rufus |
| Size | 38cm |
| Seat Tube (C | T)-380mm |
| C | C)-530mm |
| Chainstay | 420mm |
| Head Angle | 73 Deg |
| Seat Angle | 72 Deg |
| Headset | EC34/28.6 / EC34/30 |
| Bottom Bracket | 68mm |
| Seatpost | 27.2mm |
| Dropout | 135mm Rear |
| Color | Purple |
