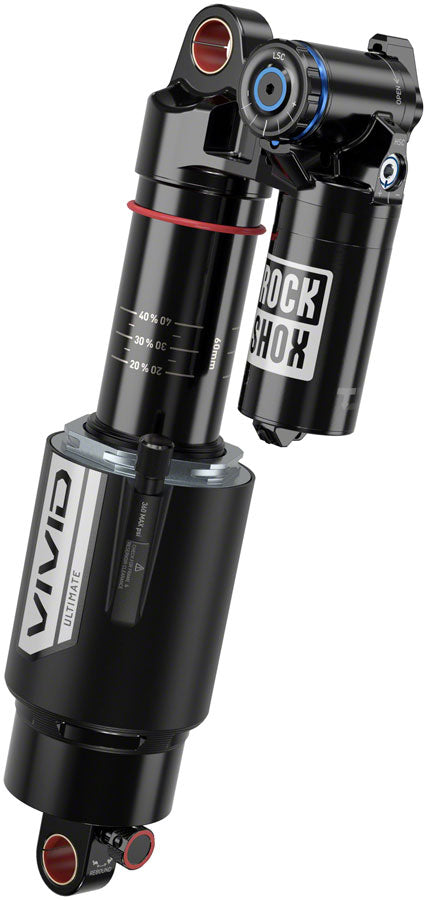

Big bold and built to maximize downhill capability and performance. The legendary Vivid has evolved to match everything from downhill to E-MTB to enduro bikes. An air shock with coil-like suppleness and unmatched durability Vivid is designed for the most demanding riders and racers. This rear shock offers a versatile damping platform with intuitive adjustability to match every course and terrain. What sets Vivid apart from a coil spring is the highly tunable air spring featuring DebonAir technology containing higher volume to provide a more linear consistent feel and improve small bump sensitivity. Vivid’s air spring makes it easy to initiate travel while adding support in the middle of the stroke and comfortable bottom out resistance near the end of the stroke. Add Bottomless Tokens to offer more bottom-out resistance or remove them to make full use of your travel.

TouchDown RC2 technology is Vivid’s new position-sensitive damping system that’s forgiving at the beginning of its travel while staying composed in the middle and end of the stroke

Just like how you react to the range of terrain on your favorite trails Vivid’s TouchDown technology handles whatever you drop into with comfort confidence and control

Adjustable Hydraulic Bottom Out (AHBO) has five compression settings which kicks in to increase compression damping within the last 20% of travel—but how much damping it offers is all on you

Rebound Knob pulls out to reveal a 3mm hex wrench that can adjust both High Speed Compression and Hydraulic Bottom Out

Maxima Plush Dynamic Suspension Lube reduces friction lasts longer and enhances suspension performance ride after ride

20 clicks of Rebound adjustment offer a wide range of tunability to accommodate all riding styles

Service intervals are now boosted to 100 hours of ride time thanks to an updated dust wiper seal design and increased oil volumes

Stroke (mm)	60
Weight	670
Eyelet Diameter (mm)	12.7
External Adjustments	Lockout Threshold
Positive Spring	Air
Eye to eye length (mm)	230
Dimensions	230X60mm
Tokens	1
