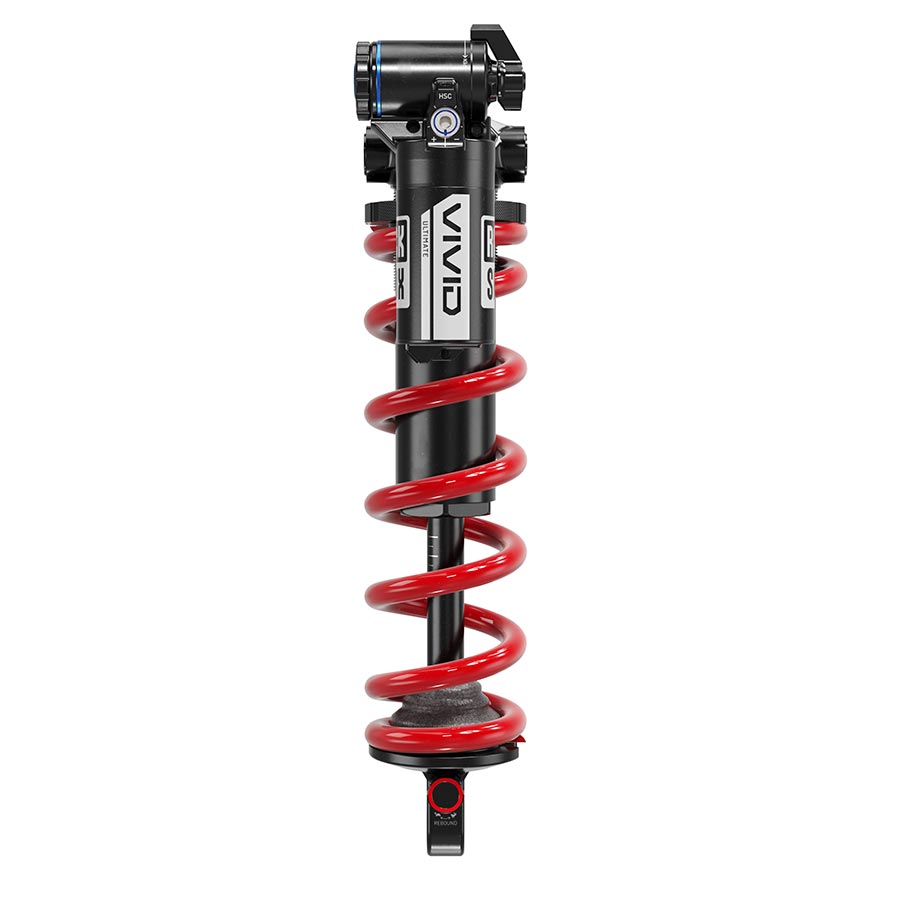

Name: RockShox Vivid Coil Ultimate C1 Rear shock 205x60 Shaft Eyelet: Standard Body Eyelet: Trunnion Reb25/Comp26 Adj Hydraulic Bottom Out Lockout 2 Transition Relay/Patrol 2022+
Brand: RockShox
SKU: H140948-20
Price: 699.0 USD
Availability: InStock

RockShox Vivid Coil Ultimate C1 Rear shock 205x60 Shaft Eyelet: Standard Body Eyelet: Trunnion Reb25/Comp26 Adj Hydraulic Bottom Out Lockout 2 Transition Relay/Patrol 2022+

$699.00

Shipping calculated at checkout.

Quantity

Only 1 left in stock

[{"id":45245612032197,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"H140948-20","requires_shipping":true,"taxable":true,"featured_image":{"id":39787484971205,"product_id":8462633566405,"position":1,"created_at":"2025-10-25T07:18:07-04:00","updated_at":"2025-10-25T07:18:09-04:00","alt":"RockShox Vivid Coil Ultimate C1 Rear shock 205x60 Shaft Eyelet: Standard Body Eyelet: Trunnion Reb25\/Comp26 Adj Hydraulic Bottom Out Lockout 2 Transition Relay\/Patrol 2022+","width":900,"height":900,"src":"\/\/trekbikesflorida.com\/cdn\/shop\/files\/140948-20_3.jpg?v=1761391089","variant_ids":[45245612032197]},"available":true,"name":"RockShox Vivid Coil Ultimate C1 Rear shock 205x60 Shaft Eyelet: Standard Body Eyelet: Trunnion Reb25\/Comp26 Adj Hydraulic Bottom Out Lockout 2 Transition Relay\/Patrol 2022+","public_title":null,"options":["Default Title"],"price":69900,"weight":862,"compare_at_price":69900,"inventory_management":"shopify","barcode":"710845910685","featured_media":{"alt":"RockShox Vivid Coil Ultimate C1 Rear shock 205x60 Shaft Eyelet: Standard Body Eyelet: Trunnion Reb25\/Comp26 Adj Hydraulic Bottom Out Lockout 2 Transition Relay\/Patrol 2022+","id":30808388796613,"position":1,"preview_image":{"aspect_ratio":1.0,"height":900,"width":900,"src":"\/\/trekbikesflorida.com\/cdn\/shop\/files\/140948-20_3.jpg?v=1761391089"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

{"id":45245612032197,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"H140948-20","requires_shipping":true,"taxable":true,"featured_image":{"id":39787484971205,"product_id":8462633566405,"position":1,"created_at":"2025-10-25T07:18:07-04:00","updated_at":"2025-10-25T07:18:09-04:00","alt":"RockShox Vivid Coil Ultimate C1 Rear shock 205x60 Shaft Eyelet: Standard Body Eyelet: Trunnion Reb25\/Comp26 Adj Hydraulic Bottom Out Lockout 2 Transition Relay\/Patrol 2022+","width":900,"height":900,"src":"\/\/trekbikesflorida.com\/cdn\/shop\/files\/140948-20_3.jpg?v=1761391089","variant_ids":[45245612032197]},"available":true,"name":"RockShox Vivid Coil Ultimate C1 Rear shock 205x60 Shaft Eyelet: Standard Body Eyelet: Trunnion Reb25\/Comp26 Adj Hydraulic Bottom Out Lockout 2 Transition Relay\/Patrol 2022+","public_title":null,"options":["Default Title"],"price":69900,"weight":862,"compare_at_price":69900,"inventory_management":"shopify","barcode":"710845910685","featured_media":{"alt":"RockShox Vivid Coil Ultimate C1 Rear shock 205x60 Shaft Eyelet: Standard Body Eyelet: Trunnion Reb25\/Comp26 Adj Hydraulic Bottom Out Lockout 2 Transition Relay\/Patrol 2022+","id":30808388796613,"position":1,"preview_image":{"aspect_ratio":1.0,"height":900,"width":900,"src":"\/\/trekbikesflorida.com\/cdn\/shop\/files\/140948-20_3.jpg?v=1761391089"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}

Product Data

SKU:
H140948-20

UPC/EAN:
710845910685

Vivid Coil Ultimate is unmatched in downhill performance and tunability. Easily dial in the perfect ride feel with the TouchDown RC2T position-sensitive damper. TouchDown RC2T damper features sensitivity and suppleness off the top while remaining stable and supportive throughout its travel. Position-sensitive damper offers reliable performance and tunability with energetic responsiveness at every position in the travel. Rebound adjustment, independent High and Low Speed Compression adjustment, and an easy-to-adjust Threshold Lever for added pedaling efficiency. Adjustable Hydraulic Bottom Out has five compression settings at your fingertips to customize the amount of bottom-out resistance in the last 20% of travel. Soft, stroke-specific bottom-out bumper accommodates the range of stroke lengths, allowing for full travel. Spring sold separately SRAM Model ID: RS-VIVID COIL-ULTIMATE-C1

TECH SPECS

Damping	RC2T Adj. Hydraulic Bottom Out
Damping Adjustments	External rebound 2 position (open/firm) HS&LS compression Hydraulic Bottom Out
Default Settings	Reb25/Comp26 Adj Hydraulic Bottom Out Lockout 2
Eye-To-Eye	205x60
Primary Color	Black
Spring Adjustments	Preload
Spring Type	Coil
Frame Compatibility	Transition Relay/Patrol 2022+
Shaft Eyelet	Standard
Body Eyelet	Trunnion

RockShox Vivid Coil Ultimate C1 Rear shock 205x60 Shaft Eyelet: Standard Body Eyelet: Trunnion Reb25/Comp26 Adj Hydraulic Bottom Out Lockout 2 Transition Relay/Patrol 2022+
