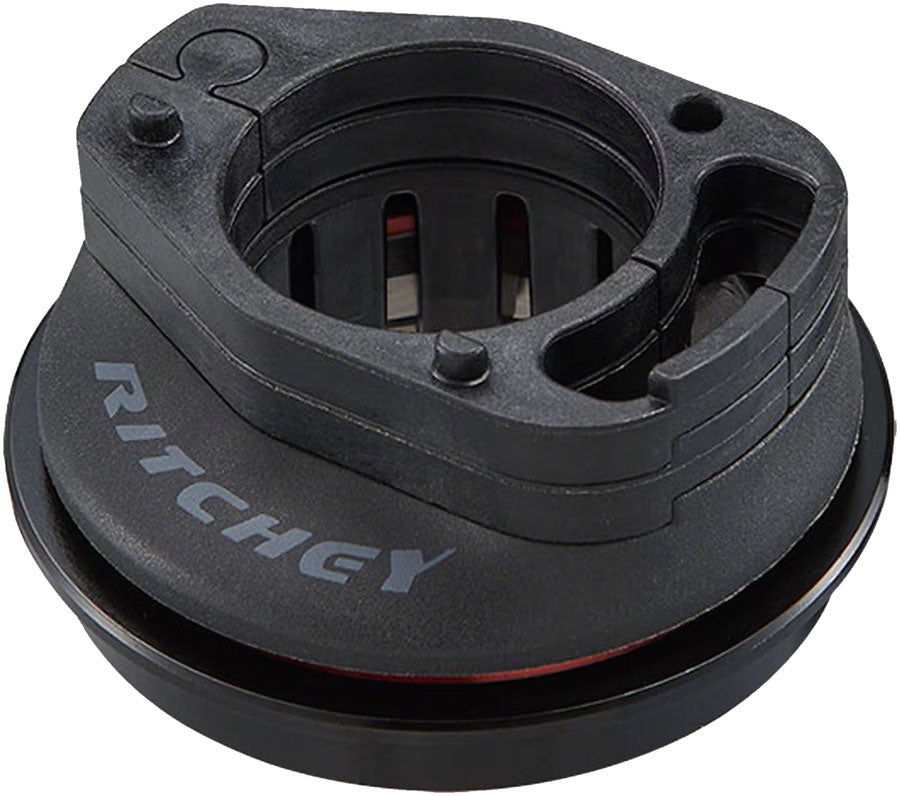

A key component of the new Ritchey WCS Switch System the WCS Switch Upper Headset upper is designed to specifically work with the Ritchey Switch Stem to route cables wires and hydraulic lines from the handlebar through to the bicycle frame. Cables are routed from the handlebar into the headset conduit which sits on the underside of the Switch Stem and then travel through an opening on the front of the WCS Switch headset spacers before passing through two channels on the top of the headset and into the frame. This system allows headset bearings to perform without any interference from cables wires or lines passing through the headtube.

The Ritchey Switch System is an innovative integrated system designed to easily conceal internally routed cables wires and hydraulic lines from the handlebar into bicycle frames with straight 1.5" head tubes together with tapered 1-1/8" – 1.5" forks. The Switch System consists of three elements: Switch Headset Headset Spacers and Adapters (Sold Separately)

Requires a bearing insertion depth of 8.7mm for the closest fit please check with your frame manufacturer for compatibility

5mm x 2pc interlocking spacers included

Compression cap sold separately

Material	Composite
S.H.I.S Upper	ZS56
S.H.I.S. Stem Clamp Diameter	28.6 Threadless
Color	Black
Bearing Type	Sealed Cartridge
Weight	54
Defined Color List	Black
Stack Height	23.7
Compatibility	ZS56
