Product Data
SKU:
B-RC4419
B-RC4419
UPC/EAN:
796941974127
796941974127

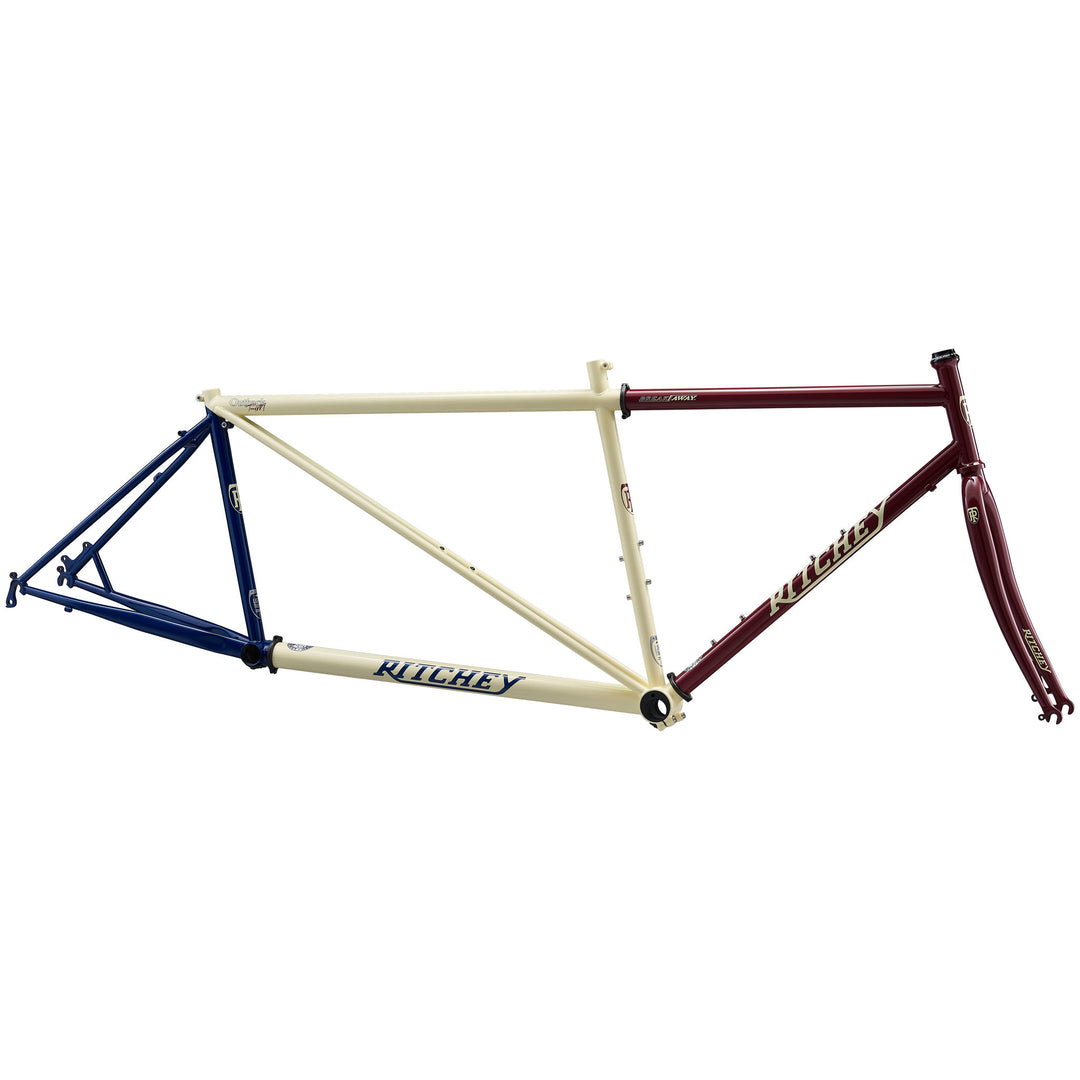

- Road-oriented tandem frame
- Fits up to 43mm tires, making it capable of handling gravel roads
- Triple-butted Ritchey Logic frame and fork tubing TIG welded
- Fender mounts and the ability to carry five bottle cages
- Multi-purpose mounts on the fork
- Designed for standard tandem gearing - stoker crank: 52/39/30T
- IS51 brake mounts / 203 max rotor size
- 10x145mm rear and 9x100mm front dropouts. Use RC5728 as ideal wheelset
- Includes two Break-Away travel cases with padding
- Hinge clamps, rear brake cable connector and derailleur cable connectors also included
- Frame weight: 5.02kg (3 sections of frame assembled in one piece)
- Fork weight: 1700g (uncut steerer)
| Size | Large |
| C | C)-590mm |
| Chainstay | 435mm |
| Head Angle | 71.5 Deg |
| Seat Angle | 73.5 Deg |
| Headset | IS42/28.6 / IS42/30 |
| Bottom Bracket | 68mm |
| Seatpost | 27.2mm |
| Front Derail | 28.6mm |
| BB Drop | 70mm |
| Stand Over | 822mm Captain/756mm Stoker |
| Dropout | 10x145mm |
| Color | Merlot |
