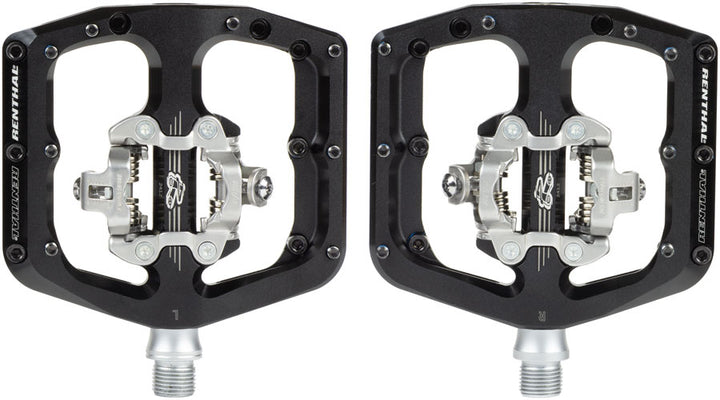

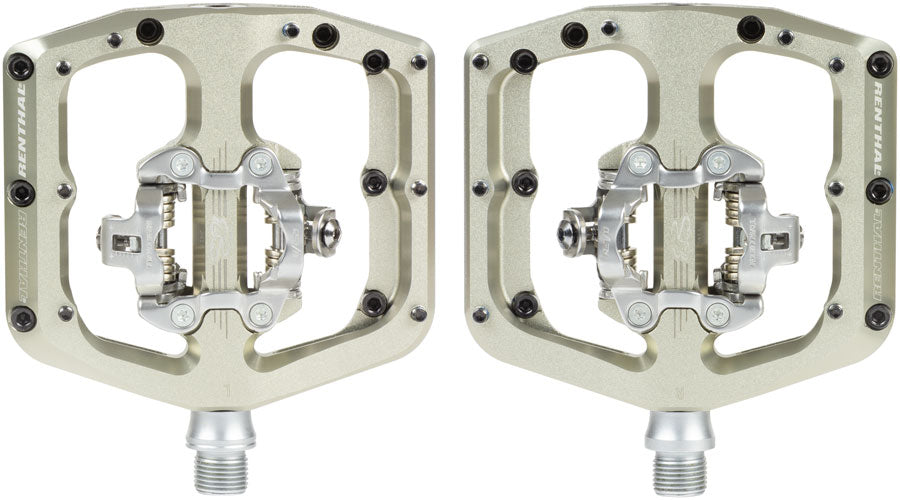

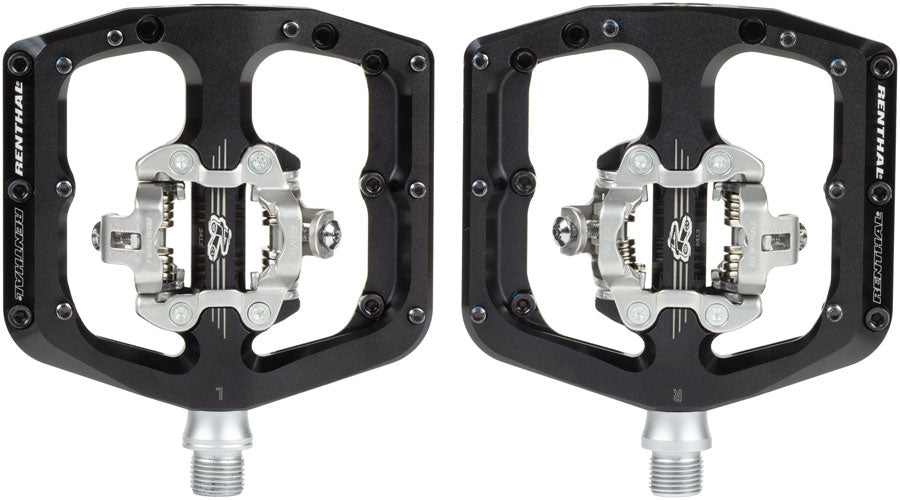

The Revo-DHC is a downhill race pedal that combines the control benefits of a flat pedal with the security and pedaling efficiency of a clip pedal. Featuring an extra-large body and fully adjustable pin height, the Revo-DHC delivers unparalleled levels of support feedback and control. This pedal is unconventional and uncompromising but engineered for all the right reasons. The pedal features a revolutionary extra-large 104 x 111mm 6061 aluminum body with CNC machined finish. Adjustable pin height accommodates various shoe types, ranging from 1.5mm to 5.5mm in 1mm increments. The proprietary Renthal binding incorporates easy-entry geometry and a super wide range of tension adjustment to suit all preferences and uses. Durability and reliability are built into every detail. Triple cartridge bearings are mounted outboard for ground-strike durability, while an inboard Igus bush features a Patent Pending Renthal easy service axle system. The pedal includes an O-ring sealed end cap and full contact wiper seal inboard for protection. The crank to binding distance measures 55mm, and the pedal comes with Renthal cleats that are fully SPD compatible.

Cleat Interface	Shimano SPD
Color	AluGold, Black
Pedal Type	Dual Sided Clipless with Platform
Weight	394
Pedal Spindle	9/16"
Pedal Body Material	Aluminum
Spindle Material	Chromoly
Defined Color	Black, Gold
