Name: RaceFace Vault J-Bend 424 Rear Hub
Brand: Race Face
SKU: HU1226
Price: 398.99 USD
Availability: OutOfStock

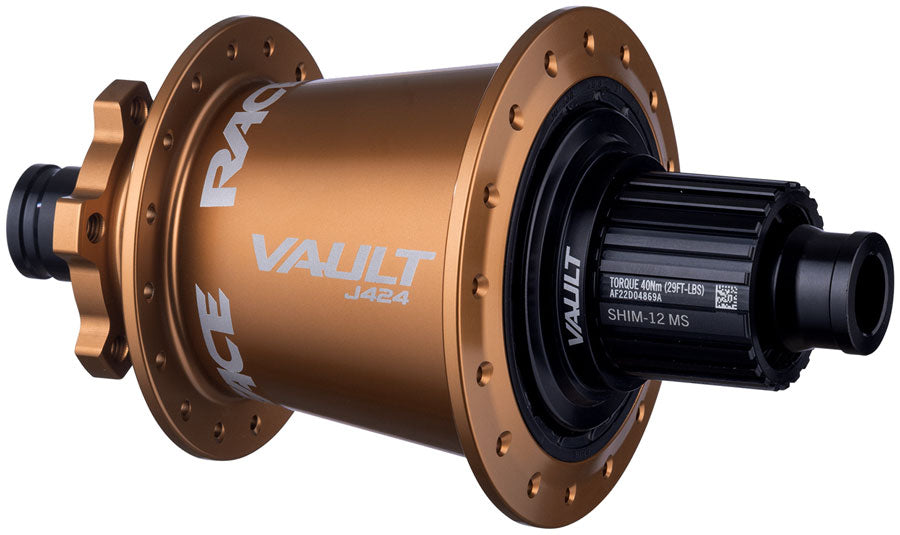

RaceFace Vault J-Bend 424 Rear Hub - 12 x 148mm 6-Bolt Micro Spline Kashmoney Gold 32H

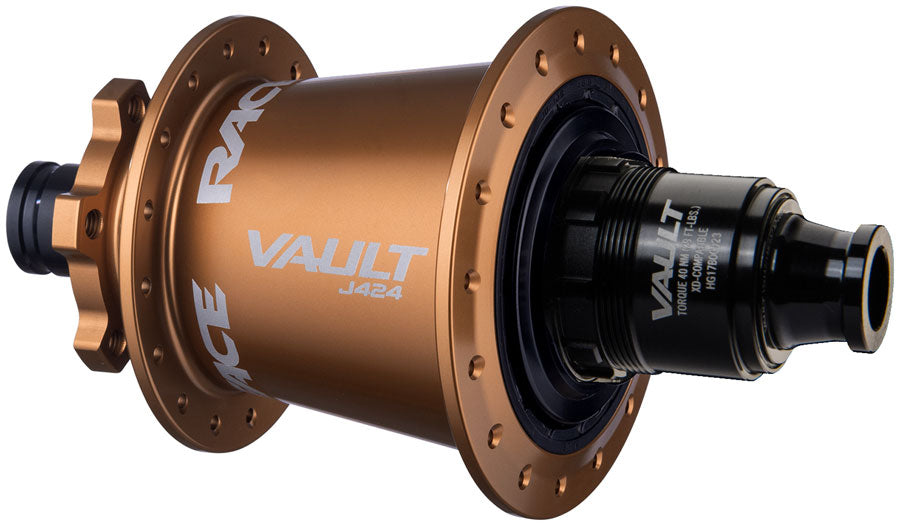

RaceFace Vault J-Bend 424 Rear Hub - 12 x 148mm 6-Bolt XD Kashmoney Gold 32H

$418.99 $398.99 Save $20.00

Shipping calculated at checkout.

Cassette Body Type

Shimano Micro Spline

SRAM XD

Quantity

Out of Stock

[{"id":46730068492485,"title":"Shimano Micro Spline","option1":"Shimano Micro Spline","option2":null,"option3":null,"sku":"HU1226","requires_shipping":true,"taxable":true,"featured_image":{"id":43618408628421,"product_id":8971867881669,"position":1,"created_at":"2026-08-15T01:21:49-04:00","updated_at":"2026-08-15T01:21:51-04:00","alt":"RaceFace Vault J-Bend 424 Rear Hub - 12 x 148mm 6-Bolt Micro Spline Kashmoney Gold 32H","width":900,"height":535,"src":"\/\/trekbikesflorida.com\/cdn\/shop\/files\/566060b1ebc244452fd4bc7a974e9cdb14c99f95.jpg?v=1786771311","variant_ids":[46730068492485]},"available":false,"name":"RaceFace Vault J-Bend 424 Rear Hub - Shimano Micro Spline","public_title":"Shimano Micro Spline","options":["Shimano Micro Spline"],"price":39899,"weight":481,"compare_at_price":41899,"inventory_management":"shopify","barcode":"821973495804","featured_media":{"alt":"RaceFace Vault J-Bend 424 Rear Hub - 12 x 148mm 6-Bolt Micro Spline Kashmoney Gold 32H","id":33835518460101,"position":1,"preview_image":{"aspect_ratio":1.682,"height":535,"width":900,"src":"\/\/trekbikesflorida.com\/cdn\/shop\/files\/566060b1ebc244452fd4bc7a974e9cdb14c99f95.jpg?v=1786771311"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":46730068525253,"title":"SRAM XD","option1":"SRAM XD","option2":null,"option3":null,"sku":"HU1227","requires_shipping":true,"taxable":true,"featured_image":{"id":43618408661189,"product_id":8971867881669,"position":2,"created_at":"2026-08-15T01:21:49-04:00","updated_at":"2026-08-15T01:21:51-04:00","alt":"RaceFace Vault J-Bend 424 Rear Hub - 12 x 148mm 6-Bolt XD Kashmoney Gold 32H","width":900,"height":526,"src":"\/\/trekbikesflorida.com\/cdn\/shop\/files\/12b51968f6188af3d625334126b5a2728b93eb4b.jpg?v=1786771311","variant_ids":[46730068525253]},"available":false,"name":"RaceFace Vault J-Bend 424 Rear Hub - SRAM XD","public_title":"SRAM XD","options":["SRAM XD"],"price":39899,"weight":465,"compare_at_price":41899,"inventory_management":"shopify","barcode":"821973495798","featured_media":{"alt":"RaceFace Vault J-Bend 424 Rear Hub - 12 x 148mm 6-Bolt XD Kashmoney Gold 32H","id":33835518492869,"position":2,"preview_image":{"aspect_ratio":1.711,"height":526,"width":900,"src":"\/\/trekbikesflorida.com\/cdn\/shop\/files\/12b51968f6188af3d625334126b5a2728b93eb4b.jpg?v=1786771311"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

{"id":46730068492485,"title":"Shimano Micro Spline","option1":"Shimano Micro Spline","option2":null,"option3":null,"sku":"HU1226","requires_shipping":true,"taxable":true,"featured_image":{"id":43618408628421,"product_id":8971867881669,"position":1,"created_at":"2026-08-15T01:21:49-04:00","updated_at":"2026-08-15T01:21:51-04:00","alt":"RaceFace Vault J-Bend 424 Rear Hub - 12 x 148mm 6-Bolt Micro Spline Kashmoney Gold 32H","width":900,"height":535,"src":"\/\/trekbikesflorida.com\/cdn\/shop\/files\/566060b1ebc244452fd4bc7a974e9cdb14c99f95.jpg?v=1786771311","variant_ids":[46730068492485]},"available":false,"name":"RaceFace Vault J-Bend 424 Rear Hub - Shimano Micro Spline","public_title":"Shimano Micro Spline","options":["Shimano Micro Spline"],"price":39899,"weight":481,"compare_at_price":41899,"inventory_management":"shopify","barcode":"821973495804","featured_media":{"alt":"RaceFace Vault J-Bend 424 Rear Hub - 12 x 148mm 6-Bolt Micro Spline Kashmoney Gold 32H","id":33835518460101,"position":1,"preview_image":{"aspect_ratio":1.682,"height":535,"width":900,"src":"\/\/trekbikesflorida.com\/cdn\/shop\/files\/566060b1ebc244452fd4bc7a974e9cdb14c99f95.jpg?v=1786771311"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}

Product Data

SKU:
HU1226

UPC/EAN:
821973495804

MPN:
945-00-002

Vault series hubs represent a top-tier platform engineered for riders who want quick engagement, exceptional stiffness, and long-term durability across aggressive trail, enduro, and gravity riding. Built around an oversized hub shell and a high-engagement drive system, the Vault hubs are designed to transfer rider power efficiently while withstanding heavy loads and harsh terrain.

Flange Diameter, Left	61.5
Rear Axle	12mm Thru x 148mm
Flange Diameter, Right	71.5
Cassette Body Type	Shimano Micro Spline, SRAM XD
Center to Flange, Left	36.5
Center to Flange, Right	23
Color	Kashmoney
Skewer Included	No
Bearing Type	Sealed Cartridge
Designed for ebike	Yes
Defined Color	Gold
Spoke Interface	J-Bend
Hub Drilling	32
Hub/Brake Compatibility	6-Bolt Disc

RaceFace Vault J-Bend 424 Rear Hub
