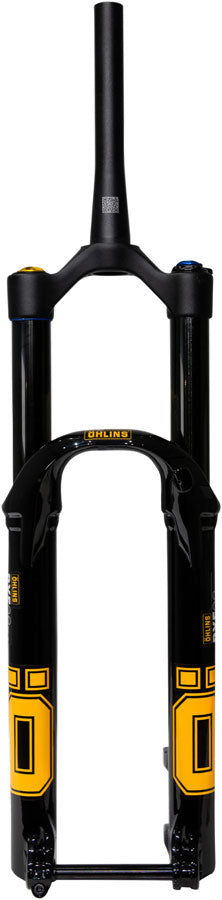

The new RXF38 m.3 features reworked internals and updated settings built around the race-proven TTX18 damper cartridge. This stiff fork is the perfect match for e-MTBs aggressive trail riding and enduro racing delivering significant performance upgrades on every ride. The new RXF38 m.3 fork delivers hard-hitting dual-crown downhill performance in a single-crown design with improvements in comfort sensitivity and bottom-out control. Bottom-out progressiveness has been increased with the addition of a spring booster and the system is further optimized for use with volume spacers giving riders greater flexibility to fine-tune their ride feel. With these upgrades the new RXF38 m.3 fork is the most advanced trail fork Ohlins has ever created and your top choice when the trails get steeper the rock gardens rougher and the gaps bigger.

The RXF38 m.3’s adjustment range provides 16 clicks of low-speed compression 3 clicks of high-speed compression and 16 clicks of rebound adjustment

Cartridge-based air spring allows for quick swaps between air and coil setups when needed (coil cartridge sold separately)

Features Ohlins floating axle design to minimize friction and weighs 2320 g (with bolts and axle)

For 29” wheel sized frames

New surface treatment on the 38mm stanchions improves small-bump sensitivity and overall ride smoothness in the new RXF38 m.3

Updated lowers feature a gloss black finish and bold new graphics ensuring riders can both feel and see the next level of performance every time they hit the trail or park

15mm x 110mm boost floating thru-axle axle design to minimize friction

eMTB approved

Steerer Type	Tapered
Lockout Switch	Crown
Brake Type	Post Mount 200
Negative Spring	Air
Travel (mm)	170
Offset	44
Axle to Crown Length	583
Front Axle	15mm Thru x 110mm
Maximum Tire Width	66
S.H.I.S. Stem Clamp Diameter	28.6
Color	Gloss Black
Crown Race	40
Weight	2320
Wheel Size	29"
External Adjustments	Rebound Damping
Defined Color	Black
Positive Spring	Air
Stanchion Diameter	38
