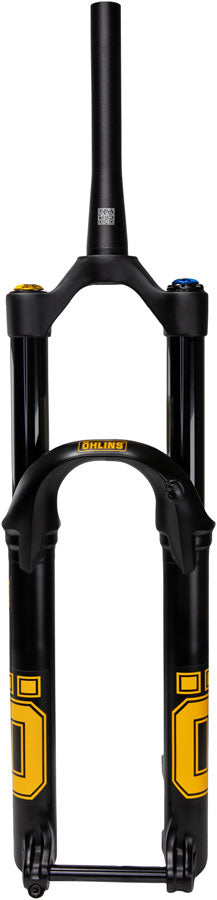

The RXF36 m.3 features an all-new chassis built around the race-proven TTX18 damper cartridge. This lightweight and highly progressive fork is fully optimized for demanding next-level trail riding performance. The Ohlins race-winning TTX18 damping technology from the DH38 Race Fork has been adapted to deliver its renowned top-tier traction and control on the most demanding trails. The updated settings and reduced chassis friction offers improved sensitivity for greater traction and comfort to conquer any trail~With the new chassis the fork delivers ultra-sensitive tracking over small bumps while maintaining Ohlins' signature precise steering and predictable handling—no matter how long or hard it's pushed.

RXF36 m.3 features increased internal bushing overlap and an optimized configuration for 29” wheels

Race-proven adjustment range is specifically designed for tough trails and provides 16 clicks of low-speed compression 3 clicks of high-speed compression and 16 clicks of rebound adjustment

Features Ohlins' floating axle design for minimal friction and weighs 2050 g (with bolts and axle)

The retuned twin piston three chamber air-spring system allows you to completely dial-in the level of progression—from the initial movement right through to the bottom out

Air spring is cartridge-based allowing for easy swaps between coil and air if desired (coil cartridge sold separately)

New surface treatment on the 36mm stanchions lowers the friction boosts small bump sensitivity and overall ride smoothness

Updated lowers feature a gloss black finish and bold new graphics ensuring riders can feel and see the next level of performance every time they hit the trail or park

15mm x 110mm boost floating thru-axle axle design to minimize friction

eMTB approved

Steerer Type	Tapered
Lockout Switch	Crown
Brake Type	Post Mount 180
Negative Spring	Air
Travel (mm)	150
Offset	44
Axle to Crown Length	563
Front Axle	15mm Thru x 110mm
Maximum Tire Width	66
S.H.I.S. Stem Clamp Diameter	28.6
Color	Gloss Black
Crown Race	40
Weight	2050
Wheel Size	29"
External Adjustments	Rebound Damping
Defined Color	Black
Positive Spring	Air
Stanchion Diameter	36
