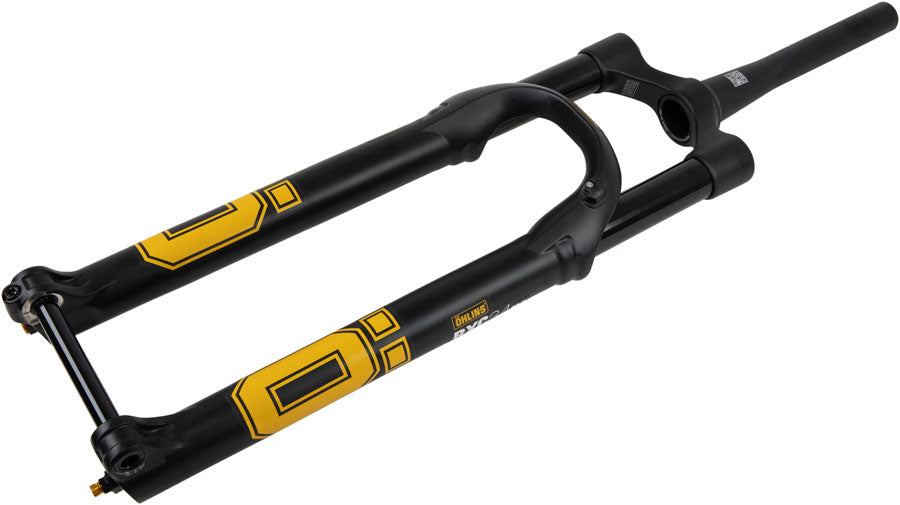

Unleash the next level of racing performance with the latest innovation in Ohlins front suspension – the RXC34 m.1 XC fork. Equipped with their race-proven floating axle design the RXC34 m.1 features a chassis with a stiff yet lightweight aluminum crown construction providing precise steering and predictable performance. The RXC34 m.1 incorporates an all-new damper and updated air spring to further enhance speed and control on technical cross-country tracks. As part of the Öhlins XC suspension system the RXC34 m.1 boasts a rider-friendly system to adjust air spring progressiveness and stroke. And with their race proven setting bank you’ll be able to fine-tune the fork to your unique riding style and bike linkage.

Uses the new XC-optimized OTX14 damper that's been extensively designed to provide a slim lightweight damper packed with technology

Highly adjustable with race-proven setting bank to match riding style and bike

Two-chamber air spring feature a large negative air chamber balanced with the damper’s characteristics in the three different ride modes – open pedal and lockout

Creates the initial movement required for superior traction while retaining best-in-class predictable support when pushing hard

12 clicks of LSC and 12 Clicks of rebound

Up to 5 positive volume spacers to adjust progressiveness (depending on travel)

Up to 7 negative spacers to adjust initial sensitivity

15mm x 110mm boost floating thru-axle axle design

Steerer Type	Tapered
Lockout Switch	Crown
Brake Type	Post Mount 180
Negative Spring	Air
Travel (mm)	120
Offset	44
Axle to Crown Length	531
Front Axle	15mm Thru x 110mm
Maximum Tire Width	66
S.H.I.S. Stem Clamp Diameter	28.6
Color	Black
Crown Race	40
Weight	1598
Wheel Size	29"
External Adjustments	Rebound Damping
Defined Color	Black
Positive Spring	Air
Stanchion Diameter	34
