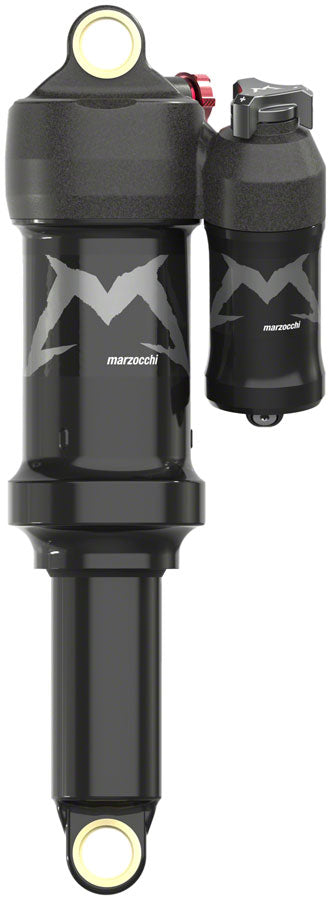

Featuring a purpose-built asymmetrical shock reservoir the Bomber Air gives a better fit in more frames and easy access to the compression adjuster. The large volume shock rezi increases oil flow and volume for consistent performance on the biggest hits and longest descents so you can send it with confidence. Plus the sweep adjust compression reduces adjustment stress and makes on-trail tunings easy. Available in a huge range of sizes from little dirt jump and short-travel trail bikes all the way up to downhill machines.

Asymmetric reservoir position for improved compression lever ergonomics and versatile frame fitment

Air valve location offers improved frame clearance and pump access

Easy to adjust for all rider weights and riding styles

2-position non-indexed compression sweep adjust means you can set it and forget it

Tool-free adjustable compression and rebound

Compatible with FOX bearing mounts on both ends (excluding trunnion)

Stroke (mm)	30
Lockout Switch	Shock Mounted Switch
Metric	Yes
Eyelet Diameter (mm)	12.7
External Adjustments	Rebound Damping
Positive Spring	Air
Eye to eye length (mm)	230
Mount Type	Standard
Size Metric	230 X 60 Mm
Spacer Size	0.2
