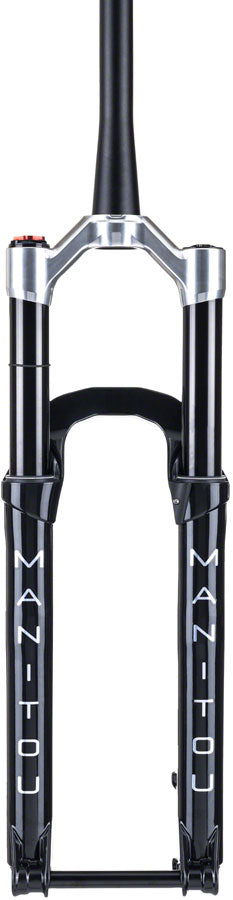

The Mattoc Pro is the fruit of one of the most profound development cycles in Manitou history. Capable of not only pulling duty in a wide range of disciplines ranging from XC to light enduro but doing so with zero compromise makes it “best-in-class”. Maximizing weight and stiffness with a variety of tuning adjustments available makes the Mattoc Pro is an amazingly versatile product that’s capable of improving your ride. A true no-compromise authentic fork serving the real needs of MTB riders offering serious performance advantages no matter how you choose to ride.

Dorado Air spring with Infinite Rate Tune (IRT) features a unique balancing valve that equalizes the positive and negative air chambers during the air fill process creating a consistent feel without any flat or dead spots in the stroke

Sealed Dampers offer more consistent damping and lighter break away force especially over long descents. The Damper uses a bladder system to compensate for head build up along with a relief valve

TSR (Trail Side Relief) casting bleed screws allow users to release casting pressure from the fork. Releasing casting pressure can improve overall fork feel and small bump compliance

Reduced weight of 59 grams from the previous model

Steerer Type	Tapered
Lockout Switch	None
Brake Type	Post Mount 160
Negative Spring	Air
Travel (mm)	120
Offset	44
Axle to Crown Length	532
Front Axle	15mm Thru x 110mm
Maximum Tire Width	67
S.H.I.S. Stem Clamp Diameter	28.6
Color	Black w/Polished Crown
Crown Race	40
Weight	1760
Wheel Size	29"
Designed for ebike	Yes
External Adjustments	Bottom Out Resistance
Defined Color	Black
Positive Spring	Air
Stanchion Diameter	34
Steerer Tube Length (mm)	250
