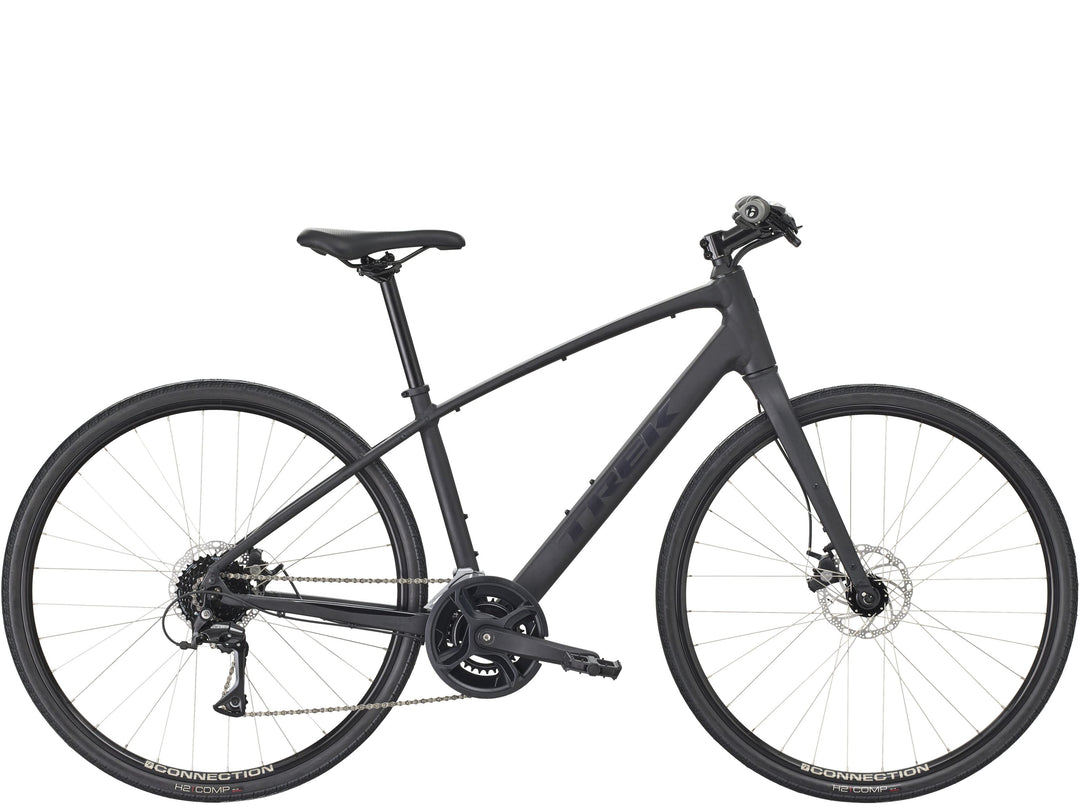

FX 1 SO XL Dark Star
In-Store Pickup Only
Fully assembled, tuned, and test-ridden—ready to ride at pickup from our shop.
Product Data
SKU:
5336624
5336624
UPC/EAN:
197216243137
197216243137
FX 1 is a versatile and sleek hybrid bike for riding all around town. It's perfect to ride for exercise, commuting, or fun. You get price-conscious parts that still deliver a big range of speeds, disc brakes that let you stop on a dime, and loads of mounts for accessories.
![]()
![]()
- Confident disc braking means bad weather doesn't have to keep you from enjoying your ride
- The cables are routed internally, which protects them from the elements and adds to the bike's sleek look
- It's easy to accessorize with racks, a kickstand, fenders, lights, and more!
- Like every Trek hybrid, it's backed by a lifetime warranty and supported by a wide network of retail partners
A better way to produce aluminum
Starting in 2024, we began removing high-emission aluminum from our manufacturing and replacing it with low-emission aluminum made with renewable energy. By October 2025, nearly every alloy bike we make - this one included - had made the switch, driving a major drop in our footprint.
Upgrade your pedals and love your bike more
Pedals are two of the five touchpoints that connect you with your bike, and even though this bike comes with a pair, upgrading to pedals that boost control and grip will greatly improve your ride. See the pedal guide and find the best pedals for your riding style. We recommend flat pedals for simple versatility.
| Frame | Alpha Gold Aluminum, internal cable routing, rack & fender mounts, post mount disc, kickstand mount, 135x5mm QR |
| Fork | FX steel, flat-mount disc, rack mounts, 410mm axle-to-crown, ThruSkew 5mm QR |
| Tire | Bontrager H2 Comp, wire bead, 30 tpi, 700x35mm |
| Hub Front | Formula DC-20, alloy, 6-bolt, 100x5mm |
| Hub Rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm |
| Skewer Front | 139x5mm bolt-on |
| Skewer Rear | 152x5mm QR |
| Shifter | Shimano EF500, 8 speed // Shimano EF500, 8 speed |
| Front Derailleur | Shimano Tourney TY606, 31.8/34.9mm clamp, top swing, dual pull |
| Rear Derailleur | Shimano Acera M3020-8, 40T max cog |
| Crank | Forged alloy, 46/30, 170mm length |
| Bottom Bracket | Sealed cartridge, 68mm |
| Cassette | Shimano HG200, 12-32, 8 speed |
| Chain | KMC Z8.3 |
| Brake | Tektro MD-U310 mechanical disc // Tektro MD-U310 mechanical disc |
| Brake Rotor | Tektro wave, 6-bolt, 160mm |
| Pedal | Wellgo nylon platform |
| Saddle | Bontrager Sport |
| Seatpost | Bontrager alloy, 27.2mm, 12mm offset, 400mm length |
| Handlebar | Bontrager Riser, steel, 25.4mm, 30mm rise, 620mm width |
| Stem | Bontrager alloy, 25.4mm clamp, 10 degree, 110mm length |
| Grips | Trek Ergonomic Comp, lock-on |
Geometry Chart
| B B Drop | 6.5 |
| B B Height | 28.5 |
| Chainstay Length | 44.7 |
| Eff Top Tube | 61.3 |
| Frame Reach | 40.9 |
| Frame Size Letter | XL |
| Frame Size Number | 60 |
| Frame Stack | 64.8 |
| Head Angle | 72.5° |
| Head Tube Length | 21.5 |
| Offset | 5 |
| Seat Tube | 52 |
| Seat Tube Angle | 72.5° |
| Standover | 83.6 |
| Trail | 5.8 |
| Wheelbase | 108.7 |
| Wheel Size | 700c |
