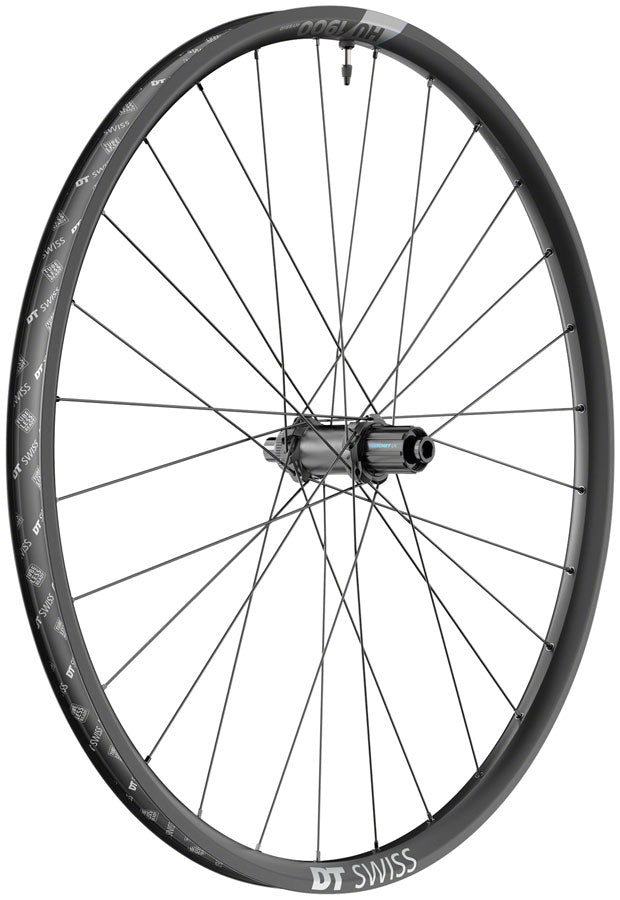

E-touring bikes are often ridden at an increased system weight putting considerable strains on the wheel and its components. This can cause damage to the rim and spokes in the long run. The HU 1900 SPLINE has been engineered and tested accordingly. Certified for a maximum system weight of 180 kg this e-bike specific wheel is able to cope with these increased loads: Featuring a thicker cross section and laced with reinforced 2.34 mm spokes these wheels are built for longevity. The 370 hub rounds up the package with the legendary Ratchet System with 18T. The reliability of the wheel comes from the quality of it’s assembly. All wheels are hand-laced by professionally trained wheel-builders ensuring equal residual spoke tension in every riding situation.

Wider rim cross section for a higher rim stiffness enabling a stronger resistance even under big loads

Aluminum Hooked / Crotchet tubeless compatible rim with 30mm width

DT hybrid 1 straightpull spokes with 2.34 mm spoke heads for enhanced withstanding resistance even at a high total system weight

The cassette interface of the freehub body is optimized with a specific hardened steel for the higher loads that occur on e-touring bikes

370 hub with Ratchet LN 18 teeth features ratchets that are optimized for e-touring bikes made of hardened steel offering high durability

Rear Axle	12mm Thru x 148mm
Rim Width (Internal)	30
Cassette Body Type	Shimano HG
Valve	Presta
Color	Black
Wheel Size	29"
Designed for ebike	Yes
Defined Color	Black
ISO Diameter	622 / Road / 29"
keyword search	electric bikes, electric bicycle, e-bike, e-bikes
Rim Material	Alloy
Tire Type	Tubeless Ready Clincher
Hub/Brake Compatibility	Center-Lock Disc
