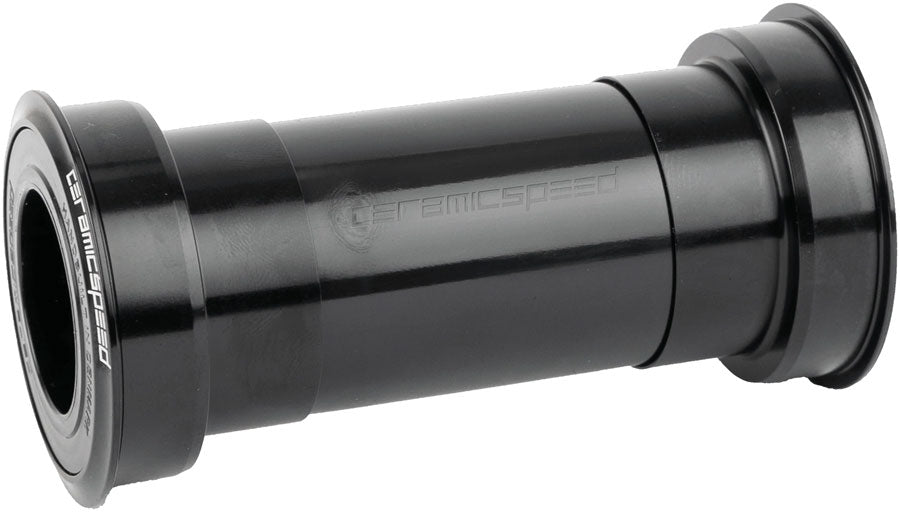

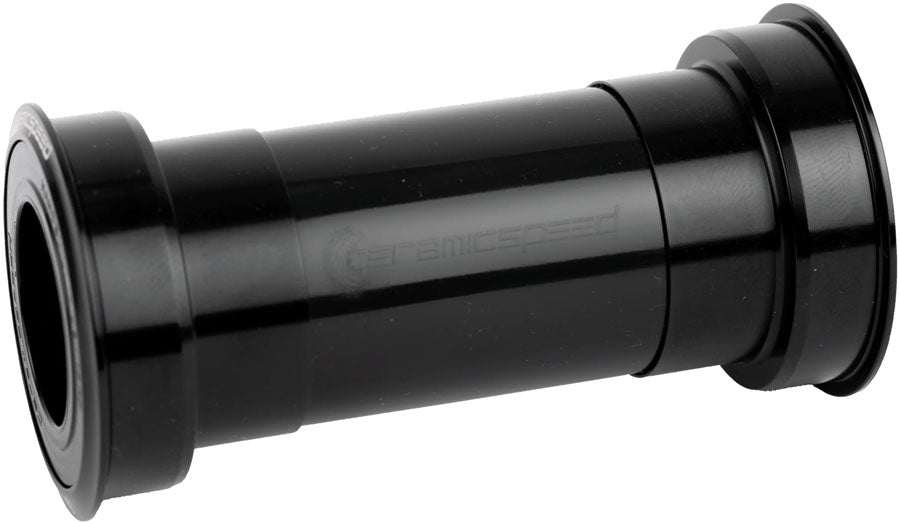

A Bottom Bracket Engineered to Outlast Your Frame

The CeramicSpeed BB ALPHA is a press-fit BB86 bottom bracket built with a specification level and warranty commitment that is unprecedented in the bottom bracket category - a lifetime warranty backed by the confidence that the engineering justifies it. Handbuilt in Denmark from grade-3 Silicon Nitride ceramic balls and hardened stainless steel races, the BB ALPHA is the result of CeramicSpeed's redevelopment of every element of the BB86 bottom bracket from the seal and dust cover design through to the bearing placement and cup material.

The BB86 shell interface fits frames with an 86.5mm shell width at 41mm internal diameter - the standard press-fit BB86 format used on Trek and many other frame brands. Available in three spindle interface versions - RaceFace EXI, RaceFace/Easton CINCH, and SRAM DUB - covering the three most common press-fit compatible spindle standards. Confirm your crankset's spindle interface before purchase. Weights are 74g, 76g, and 78g depending on the spindle version.

Silicon Nitride Ceramic Balls, Hardened Stainless Steel Races, and Hand-Built Construction

Grade-3 Silicon Nitride ceramic balls are the material foundation of the BB ALPHA's performance - harder, lighter, and smoother than steel bearing balls, providing lower rolling friction, reduced heat generation under load, and longer service life before requiring replacement. Grade-3 is the highest precision grade for ceramic balls, specifying the tightest dimensional tolerances and surface finish standards achievable.

The hardened stainless steel races are specifically chosen and treated to provide an optimal running surface for the ceramic balls - the race surface hardness being as critical to bearing performance and longevity as the ball material itself. Stainless steel provides exceptional corrosion protection compared to standard bearing steel races, an important advantage for a bearing mounted in a frame shell that can be exposed to moisture, road spray, and wash-down.

The internal ball bearing race has been redesigned compared to previous CeramicSpeed BB ALPHA generations to provide additional support for handling pre-load - the compressive force applied to the bearing by the crankset spindle. Better pre-load handling maintains bearing alignment and reduces the micro-movements that cause premature wear.

500% Better Moisture Protection, Flush Dust Covers, and 10% Weight Reduction

Custom-made light contact seals with stainless steel backing provide up to 500% better moisture protection than previous designs while maintaining the ultra-low friction performance that defines CeramicSpeed bearings. Light contact seals touch the rotating surface with minimal force - providing a seal without the friction penalty of a heavy contact seal that would negate the ceramic bearing's efficiency advantage.

The bearings have been repositioned further out in the cup - allowing the stiff POM (polyoxymethylene) plastic dust covers to sit flush with the outer edge of the cup rather than recessed from it. This flush mounting makes it significantly harder for trail debris, grit, and moisture to penetrate past the dust cover to reach the bearing and seals. The geometric improvement in debris exclusion is achieved through positional redesign rather than adding friction or weight.

A simplified spacer tube design and lighter 7075 aluminium cups deliver a 10% weight reduction over the previous BB ALPHA generation - 7075 aluminium being the high-strength alloy used in aerospace and high-performance cycling components where maximum strength-to-weight ratio is the priority.

FAQs

What spindle interfaces is the BB ALPHA BB86 compatible with?

The BB ALPHA BB86 is available in RaceFace EXI, RaceFace/Easton CINCH, and SRAM DUB spindle interface versions. Confirm your crankset's spindle standard before purchase - the three versions are not interchangeable.

What is the BB86 shell specification?

BB86 is a press-fit bottom bracket shell standard with an 86.5mm shell width and 41mm internal diameter. Confirm your frame uses BB86 press-fit before purchase - it is not compatible with threaded BB shell standards.

What warranty does the CeramicSpeed BB ALPHA carry?

The BB ALPHA carries a lifetime warranty from CeramicSpeed - backed by the engineering quality of the handbuilt Danish construction and the grade-3 Silicon Nitride ceramic ball specification.

What does the 500% better moisture protection mean in practice?

The custom light contact seals with stainless steel backing provide dramatically improved moisture exclusion compared to the previous design - reducing the rate at which water, road spray, and wash-down water reaches the ceramic bearings and races, extending the service interval and service life of the bearing system.

Where is the BB ALPHA manufactured?

All CeramicSpeed BB ALPHA models are handbuilt in Denmark - confirming the individual quality control and precision assembly that the grade-3 ceramic ball specification requires.

Specs:
