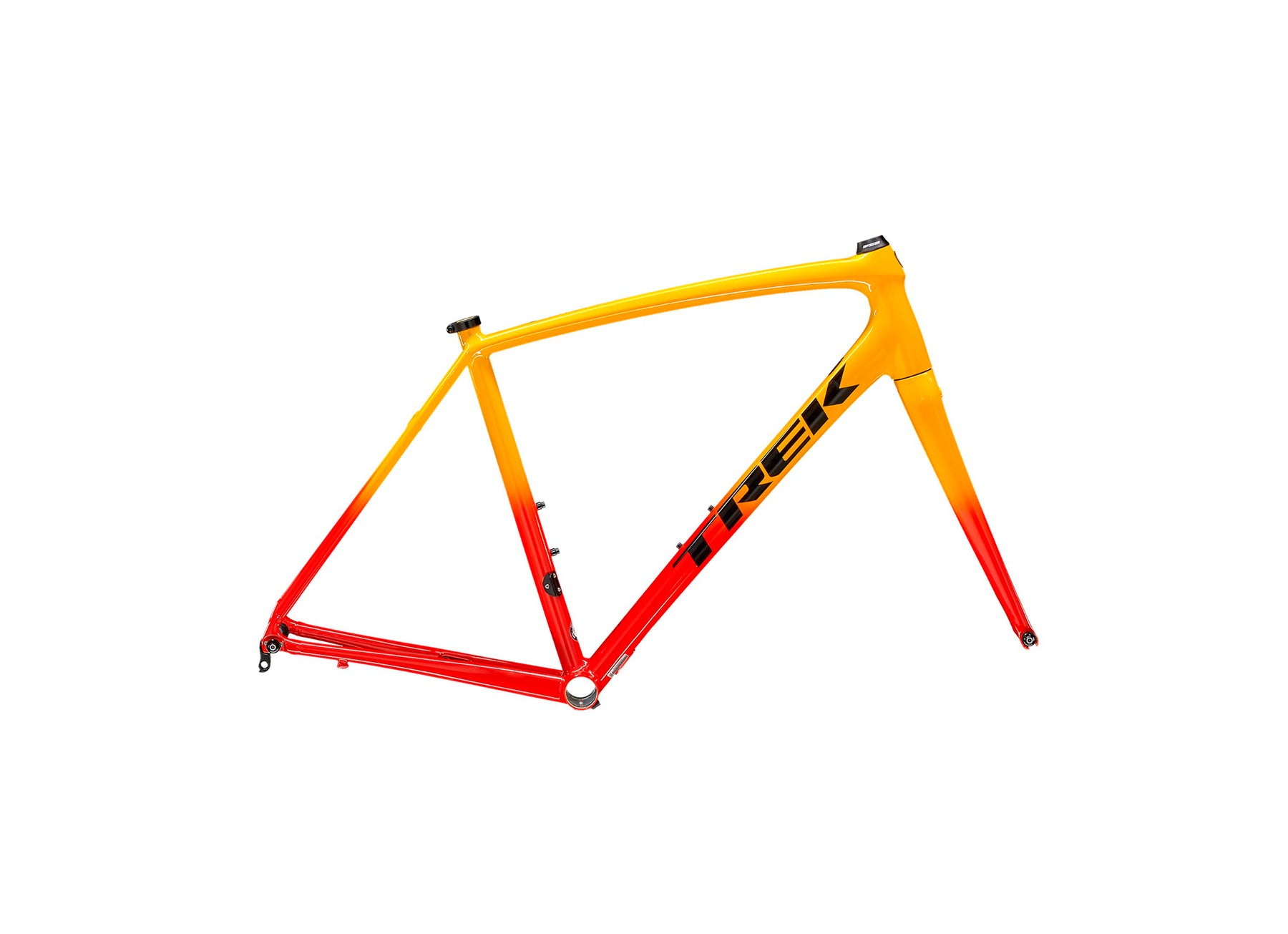

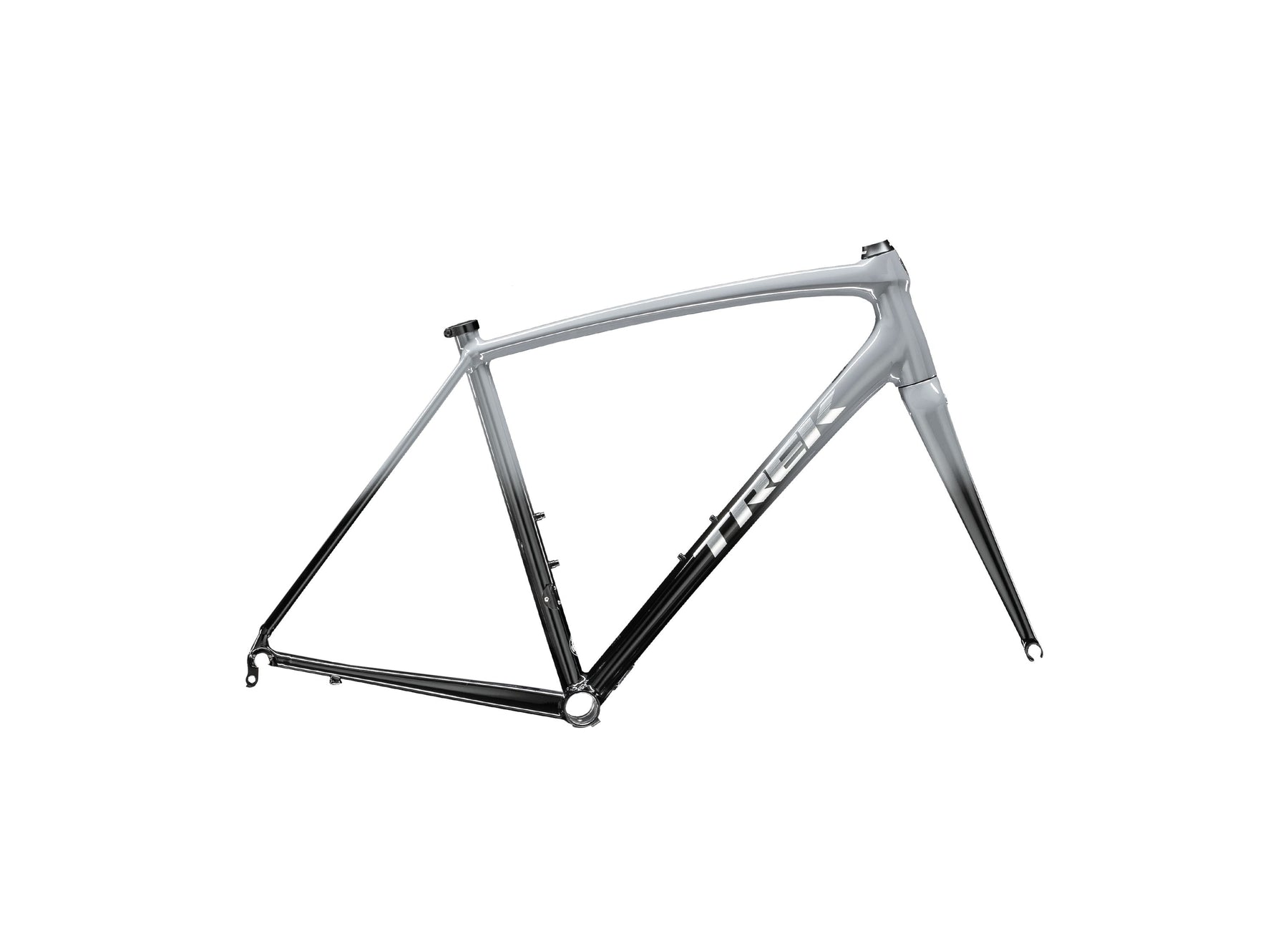

Émonda ALR frameset gives you the look and performance of carbon at an alloy price point that's far friendlier on the wallet. Shaped tubes and Invisible Weld Technology make this aluminum road bike frame the perfect starting point for a high-performance, high-value build.

• It climbs fast, corners hard, and descends with confidence
• Proven H2 geometry gives you a ride quality that stands up in every way to far more expensive carbon bikes
• Internal cable routing extends the life of your cables and adds to the bike's sleek look
• Like every Émonda, it's light and fast—and it's backed by our lifetime warranty

Frame	Ultralight 300 Series Alpha Aluminum, Invisible Weld technology, tapered head tube, Control Freak internal routing, DuoTrap S compatible, direct mount rim brakes, 130x5mm QR, 86.5mm PressFit bottom bracket
Fork	Émonda SL full carbon, tapered carbon steerer, direct mount brake, carbon dropouts, 5x100mm QR
Headset	FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom

Geometry Chart

B B Drop	7.2
Chainstay Length	41
Eff Top Tube	51.3
Frame Reach	36.9
Frame Size Number	47cm
Frame Stack	52.2
Head Angle	71.2°
Head Tube Length	11.5
Offset	4.5
Seat Tube	42.4
Seat Tube Angle	74.6°
Standover	69.8
Trail	6.7
Wheelbase	97.4
Wheel Size	700c
