Roscoe F/S L 29 Lava
5342169
Only 2 left in stock
Ships Monday
Product Data
SKU:
5342169
5342169
UPC/EAN:
197216299370
197216299370

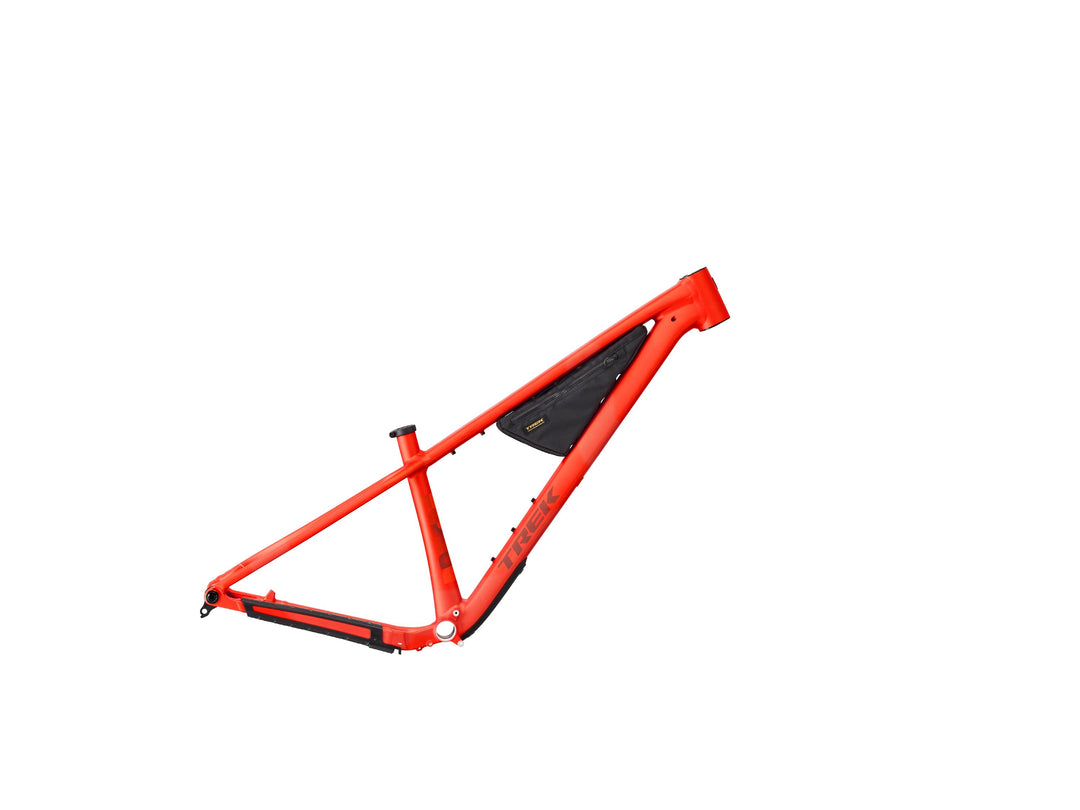

Roscoe Frameset is a build-your-own-adventure hardtail frame that's up to get down. Its Alpha Platinum Aluminum chassis delivers progressive hardtail trail geometry that's confident anywhere from fast and loose trails to dirt jump lines, and is designed to be paired with a 150mm fork. Build it however you dream, then chase down your rowdiest pursuits.
![]()
![]()
![]()
![]()
![]()
Ready to get rowdy
With 150mm front travel, trail-smashing 29-inch wheels, and dialed-for-dirt frame features, Roscoe is ready to get rowdy on your favorite rides.
Rock Solid
The bolt on downtube guard will stay put even after ripping though a chucky trail, keeping your bike quiet and protected.
Integrated storage
The frame bag is made from a recycled ripstop polyester with an eco friendly DWR coating on the outside that is water resistant, with plenty of room to stash everything from snacks to safety supplies.
Progressive trail geometry
A long reach, slack head angle, steep seat angle, and short chain stays combine for a ride that's confidence inspiring, yet still nimble and fun.
A better way to produce aluminum
Starting in 2024, we began removing high-emission aluminum from our manufacturing and replacing it with low-emission aluminum made with renewable energy. By October 2025, nearly every alloy bike we make - this one included - had made the switch, driving a major drop in our footprint.
| Frame | Alpha Platinum Aluminum, tapered head tube, ZS headset, internal derailleur & dropper post routing, ISCG 05, threaded BB, UDH, 148x12mm thru axle |
| Skewer Rear | Bontrager Switch thru axle, removable lever |
| Seat Collar | Bolt-on, 36.4mm |
| Headset | FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown |
Geometry Chart
| B B Drop | 6.1 |
| B B Height | 31.2 |
| Chainstay Length | 43 |
| Eff Seat Tube Angle | 76.0° |
| Eff Top Tube | 63.2 |
| Frame Reach | 47 |
| Frame Size Letter | L |
| Frame Size Number | 19.5" |
| Frame Stack | 66.2 |
| Head Angle | 65.0° |
| Head Tube Length | 12 |
| Offset | 4.4 |
| Seat Tube | 42.5 |
| Seat Tube Angle | 74.1° |
| Standover | 74 |
| Trail | 12.5 |
| Wheelbase | 122.4 |
| Wheel Size | 29" |
